Description

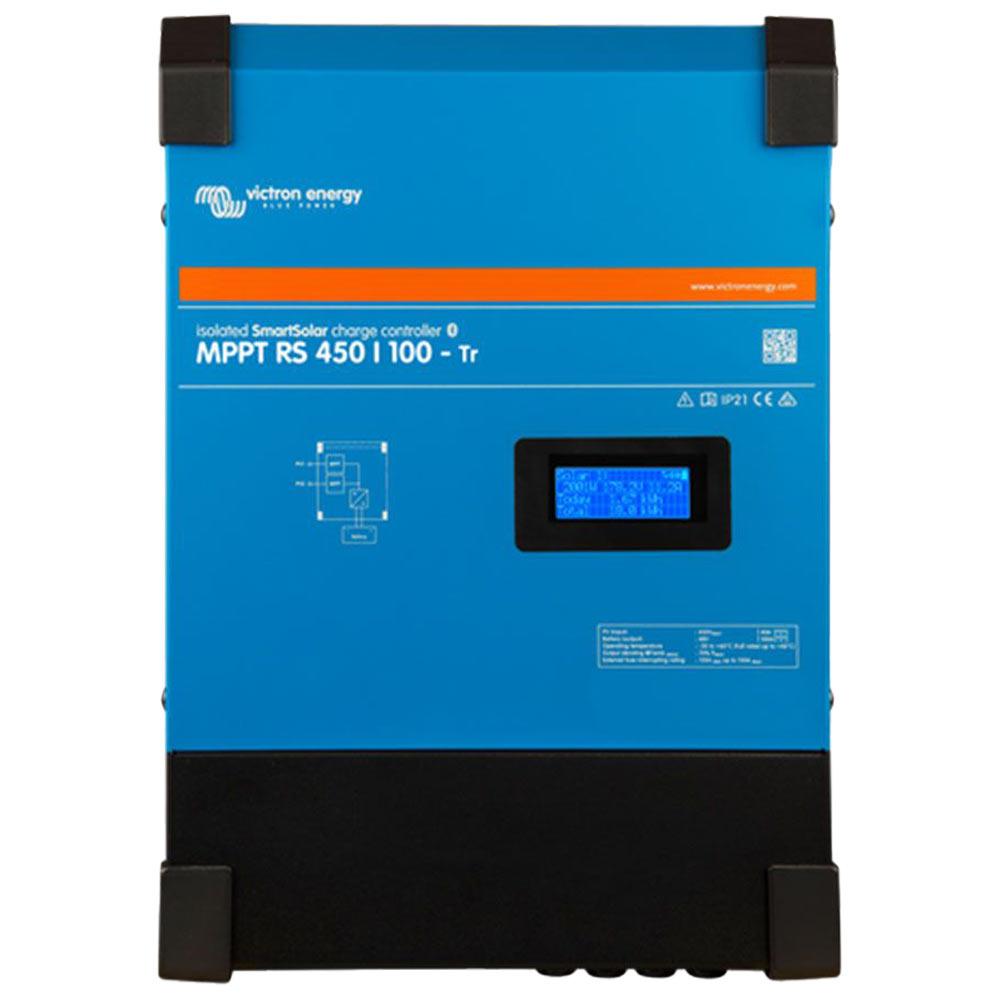

xThe RS version is a powerful MPPT solar charger with two independent MPPT inputs and a total PV power of 5.7kW. It charges lead acid, AGM, leisure and lithium-ion batteries at 48V.
The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid-connected battery systems.
With two independent MPPT inputs, the solar power can reach 5.76kW. The solar panels are arranged in strings between 80-450 VDC operating voltage input. Other special features are:
independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve safety and modernise the presentation in line with the latest suite of Victron products.
MPPT: Ultra Fast Maximum Power Point Tracking
The SmartSolar RS solar charge controller connects to a PV array of between 80 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 100A or 200A.
The charge settings are fully programmable and can be set up for different battery chemistries, like lead acid, lithium and more.
SETUP AND MONITOR WITH VICTRONCONNECT
The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.
SMARTSOLAR DISPLAY
The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both arrays individually including instantaneous and total figures and unit status including any possible error codes.
DAISY CHAIN ADDITIONAL UNITS
The SmartSolar RS charge controller is equipped with VE. Can bus ports. This allows for communication with additional SmartSolar RS & VE. Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable.
When connected to each other, all individual charge controllers will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).
SMARTSOLAR DISPLAY
The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both arrays individually including instantaneous and total figures and unit status including any possible error codes.
REMOTE MONITORING AND CONTROL
If the GX Device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers. </a >
I/O CONNECTIONS
The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.
