Description

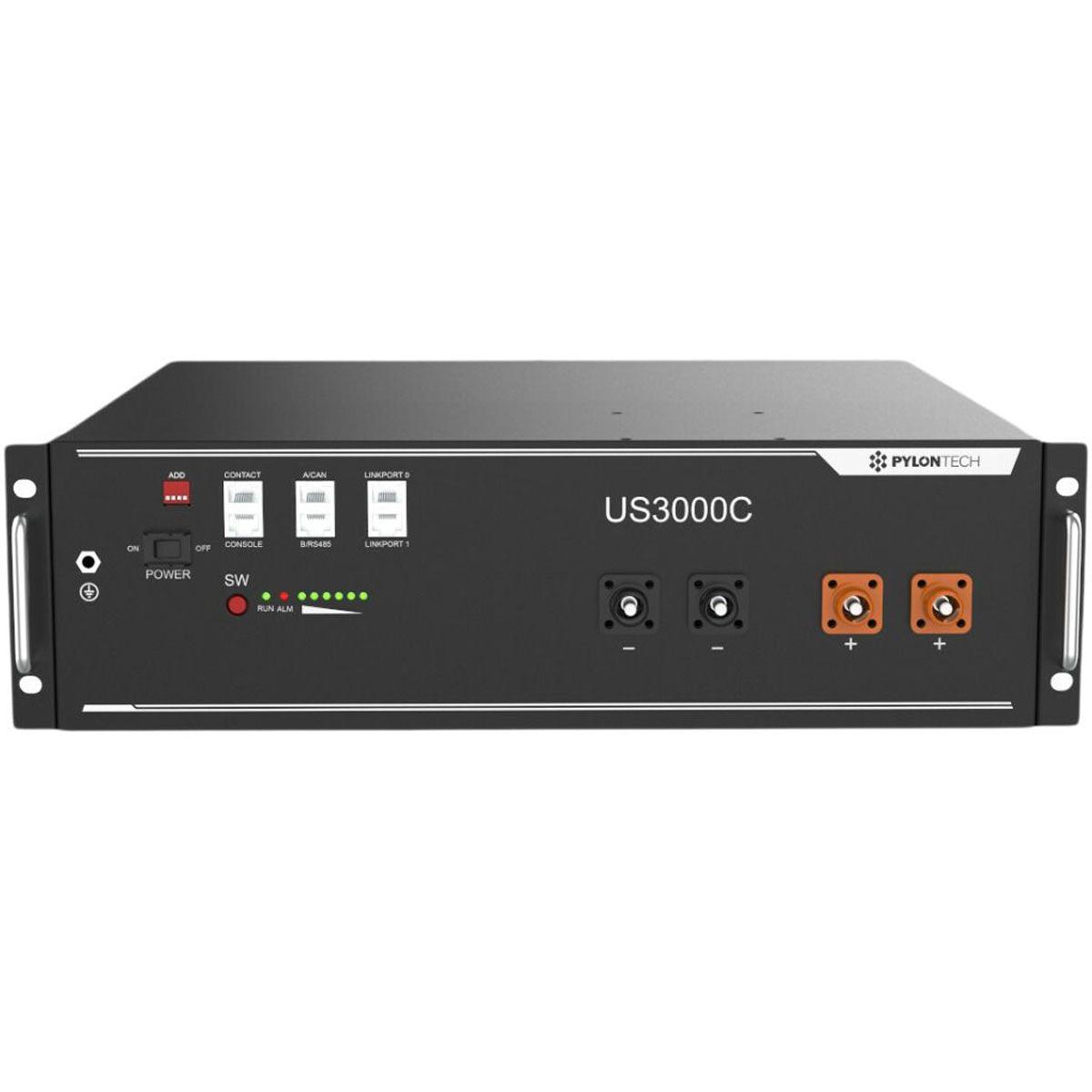

xPYLONTECH 3.55KWH LITHIUM-ION ENERGY STORAGE SYSTEM US3000C
MODULAR DESIGN EASY TO EXPAND
PylonTech 3.55kWh Lithium-Ion Energy Storage!
US3000C Modular Design, EASY TO EXPAND!
US3000 is the mid-range of Pylontech lithium batteries that is compatible with a plethora of inverters.
If you are an existing user of any US-type model of Pylon it is possible to mix any battery in the same installation including US5000 and US3000. The BMS software will adjust the charging current and auto-regulate the charge level across the cells to ensure that all the internal cells are changed equally.
The US3000C is the latest HESS battery system provided by Pylontech, with our abundant experience of delivering our product to more than 5,000 homes.
Its long life character, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end-users and the strongest technical capability of Pylontech.
This is the new US3000C battery that offers a higher depth of discharge - now a staggering 95% - and 16 units can be installed in parallel - double the capacity than before!
The system is modular and stackable. The warranty of the product is 10 years and must be registered with the manufacturer's online portal!
Manufacturer's part number: U3000C
The batteries are suitable for vertical or horizontal installation using the mounting brackets. For a professional and more tidy installation, we recommend the use of 19'' server cabinets.
PRODUCT FEATURES:
- Capacity: 3.55 kWh
- Usable Capacity: 3.20 kWh
- Capacity: 74 Ah
- Nominal Voltage: 48V
- D.o.D: 95%
- Weight: 35kg
- Low voltage in 48V, 74Ah DoD: 95%
- Dimension: 442mm (W)x132mm (H)x420mm (D)
- Vertical industry integration ensures more than 6000 cycles with 80% DoD
- Modular design gives the end customers the power of choice of capacity
- Compatible with SolaX Hybrid inverters, Voltasol, Conversol, Axpert
- Simple buckle fixing minimizes the installation time and cost
- Safety Cert.TÜVCEUN38.3TLC
Easy installation with brackets or cabinets! Compatible with most the hybrid inverters Communication protocols: CAN, Rs485, Rs 232 Safety Certificate: CE, TUV, RoHS, UN38.3 TLC
Please note
The US3000C can be used to expand an existing US3000 bank. The US3000C needs to be used as the master battery when used to expand an existing US3000 bank.
The warranty of the product is 10 years and must be registered with the manufacturer's online portal
Manufacturer's part number: U3000C
The batteries are suitable for vertical or horizontal installation using the mounting brackets. For a professional and more tidy installation, we recommend the use of 19'' server cabinets
Easy installation with brackets or cabinets Compatible with most hybrid inverters Communication protocols: CAN, Rs485, Rs 232 Safety Certificate: CE, TUV, RoHS, UN38.3 TLC
Please note
The US3000C can be used to expand an existing US3000 bank. The US3000C needs to be used as the master battery when used to expand an existing US3000 bank.
