Description
x4.8kWh US5000 Pylontech lithium battery with built-in BMS (the lowest price in the UK inc. delivery cost), compatible with the 35 solar inverters in the market. Easy to expand without extra communication hub. Suitable for off-grid systems, hybrid and for self-consumption. The right BMS RJ45 cable is required. Consult with your inverter supplier. Contact us for 0% VAT sales to discuss the supply and installation.

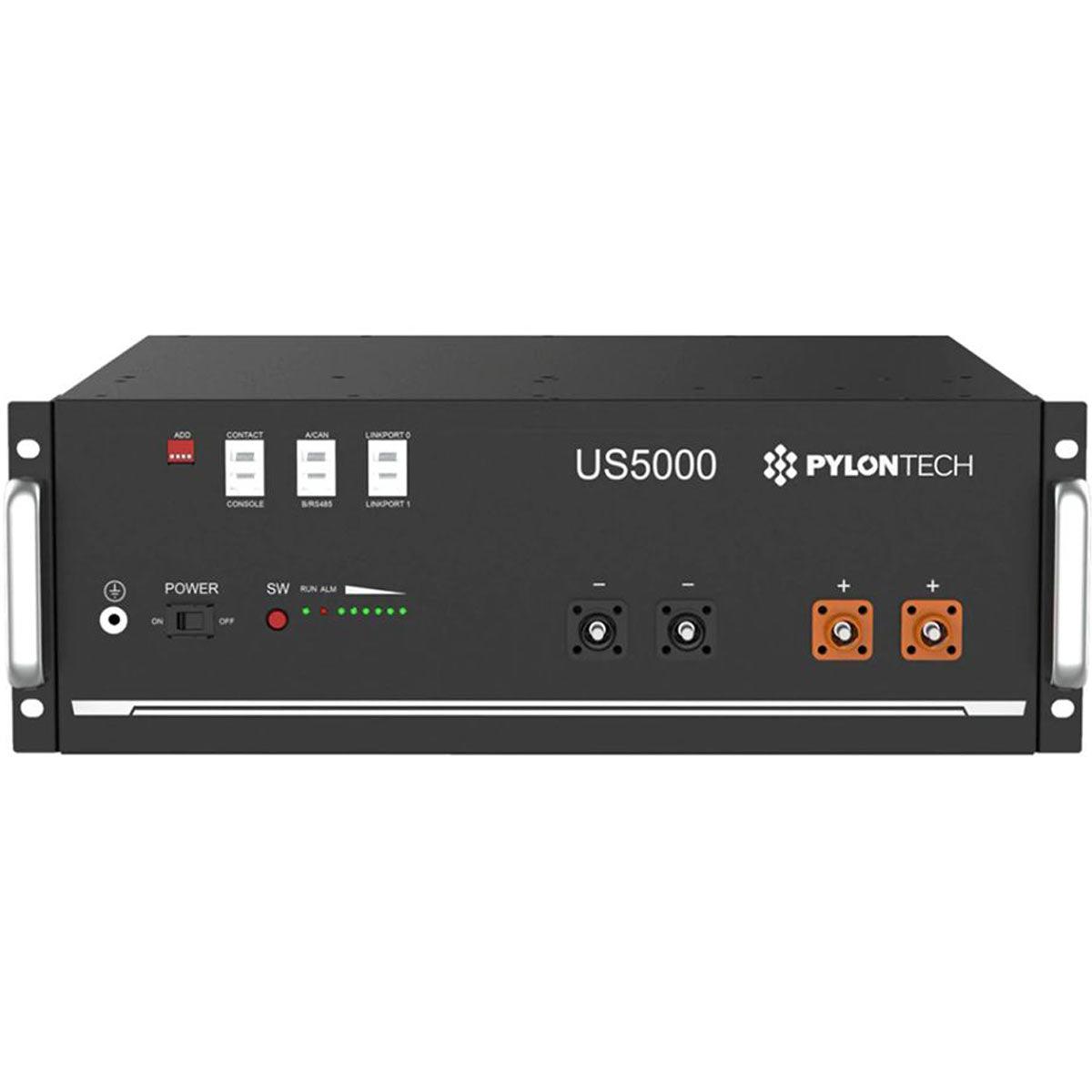

THE PINNACLE OF LITHIUM BATTERIES FROM PYLONTECH - THE NEW US5000 4.8KWH 95% D.O.D (4.56KWH USABLE)
This 4.8kWh energy storage product from Pylon is a lithium iron phosphate (LFP) battery with a maximum DoD of 95% and a 10-year warranty. The modular design of the battery enables storage banks to be built-in units of 4.8kWh. The units are simply daisy-chained together for communication, and links are provided for connecting the batteries parallel. These batteries can require brackets for mounting.
In the download section we added a comprehensive list with all the compatible inverters, we counted 35 branded including our Voltacon off-grid and hybrid converters.
Our record-breaking installation with US5000 batteries is now 300kWh (64 consoles in one project).
Key features of Pylontech US5000
- Firmware upgrade remotely - internet connection required
- Up to 16 units per COM string, when using the LV Hub this can be up to 480 batteries!
- 80A charge and discharge rate, 100A @ 15min, 200A @ 15s
- Four levels of current protection - charging/discharging MOS, dual passive and active fuses and pre-charge circuit
- Modular design for ease of expansion
- Higher usable capacity resulting in fewer battery modules installed
- Usable capacity 4.56kWh
- Parallel Capability of up to 16 units
- Allows for a large installation of up to 72.96kWh with no LV Hub
- Intelligent BMS protecting battery cells
- 95% DoD with a more usable capacity
- RS485 and CAN compatible
- Comes with a 5-year warranty extendable
- 15 years life expectancy with over 8,000 cycles at 25oC ambient.
POWER RATING AND DISCHARGE CONDITIONS
- Supplier Part No: US5000
- Weight: 39 kg
- Battery Type: Lithium Ion
- Nominal Energy: 4800 Wh
- Depth of discharge: 95.00 %
- Voltage: 48 V
- Continuous Discharge Rate (Normal Use): 2400 W
- Maximum Discharge Rate (5 Minutes): 4800 W
- Surge Discharge Rate (15 Seconds): 5808 W
- Maximum Charge Rate (5 Minutes): 4800 W
Package dimensions: 560 x 510 x260 mm
