Description

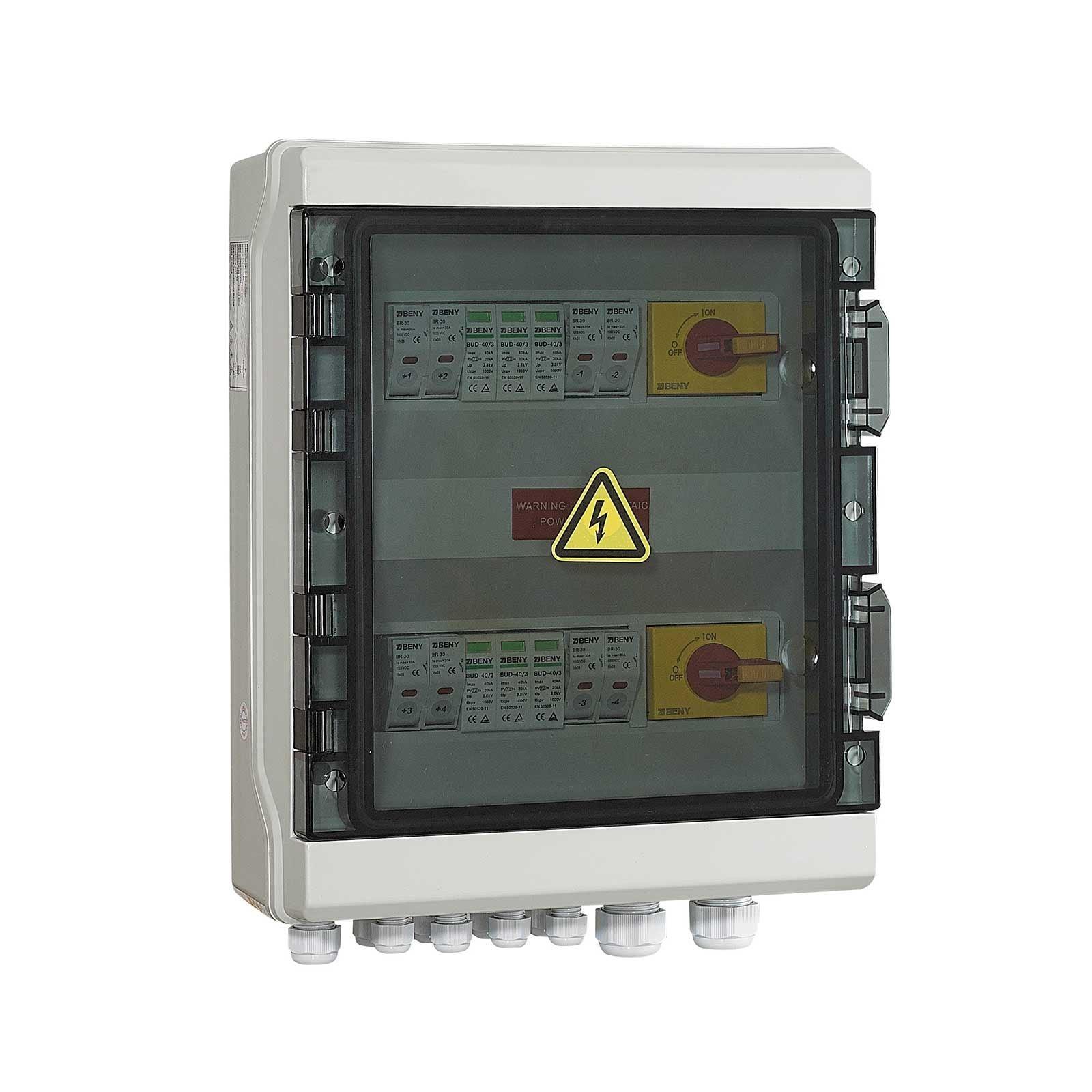

xSolar DC String Box. The enclosure is built to high industrial standards and includes, fused PV-string terminals, surge protection devices and DC-isolators.
GENERAL ELECTRICAL CHARACTERISTICS
- Input 8 strings
- Output 2 strings
- Maximum Voltage 1000V
- Max DC short circuit current 15A (changeable)
- Maximum Current Output 40A per MPPT input. DC breaker rated 63A
The 8-string combiner box offers two independent groups of 4 strings each. That is suitable to power dual MPPT hybrid and off-grid solar inverters in the range of 100V, 150V, 500V and 1000VDC.
NOTICE: According to solar industry standards, a PV string should be protected with fuses on the positive and negative The 8-string combiner box offers two independent groups of 4 strings each. That is suitable to power dual MPPT hybrid and off-grid solar inverters in the range of 100V, 150V, 500V and 1000VDC.
NOTICE: According to solar industry standards, a PV string should be protected with fuses on the positive and negative terminal
ENCLOSURE
- Polycarbonate/ABS
- IP65 ingress protection
- IK10 resistance to impacts
- Dimensions: 292x370x132mm
- Cable entry: PG09 Cable Gland, 2.5-16mm2
