xREAL-TIME SOLAR MONITORING SYSTEM – NO MONTHLY FEES – READY TO USE - Raspberry PI 4 & Solar Assistant - Aluminium Case
PROFESSIONAL ONLINE MONITORING FOR SOLAR PV SYSTEMS
Take full control of your solar energy system with this powerful, plug-and-play monitoring solution based on a Raspberry Pi 4 alternative (Orange Pi). Fully pre-installed software and hardware in a compact plastic enclosure – no subscription or renewal fees. Ideal for live monitoring of inverters, battery systems, and shunt resistors. Now we provide two power supplies : Mains 230V to 5V & DC-DC (9-60Vdc to power the controller from any battery terminal).
COMPATIBLE WITH
- Inverters: Voltacon, MPP Solar, Axpert, InfiniSolar, Sunsynk, Deye, Growatt
- Chargers
- Pylontech Lithium Batteries (US2000C, US3000C, US5000C)
- Pytes Lithium Batteries
- Voltacon Energy Storage
- Victron SmartShunt Resistors
- USB-Serial Communication (RS232)

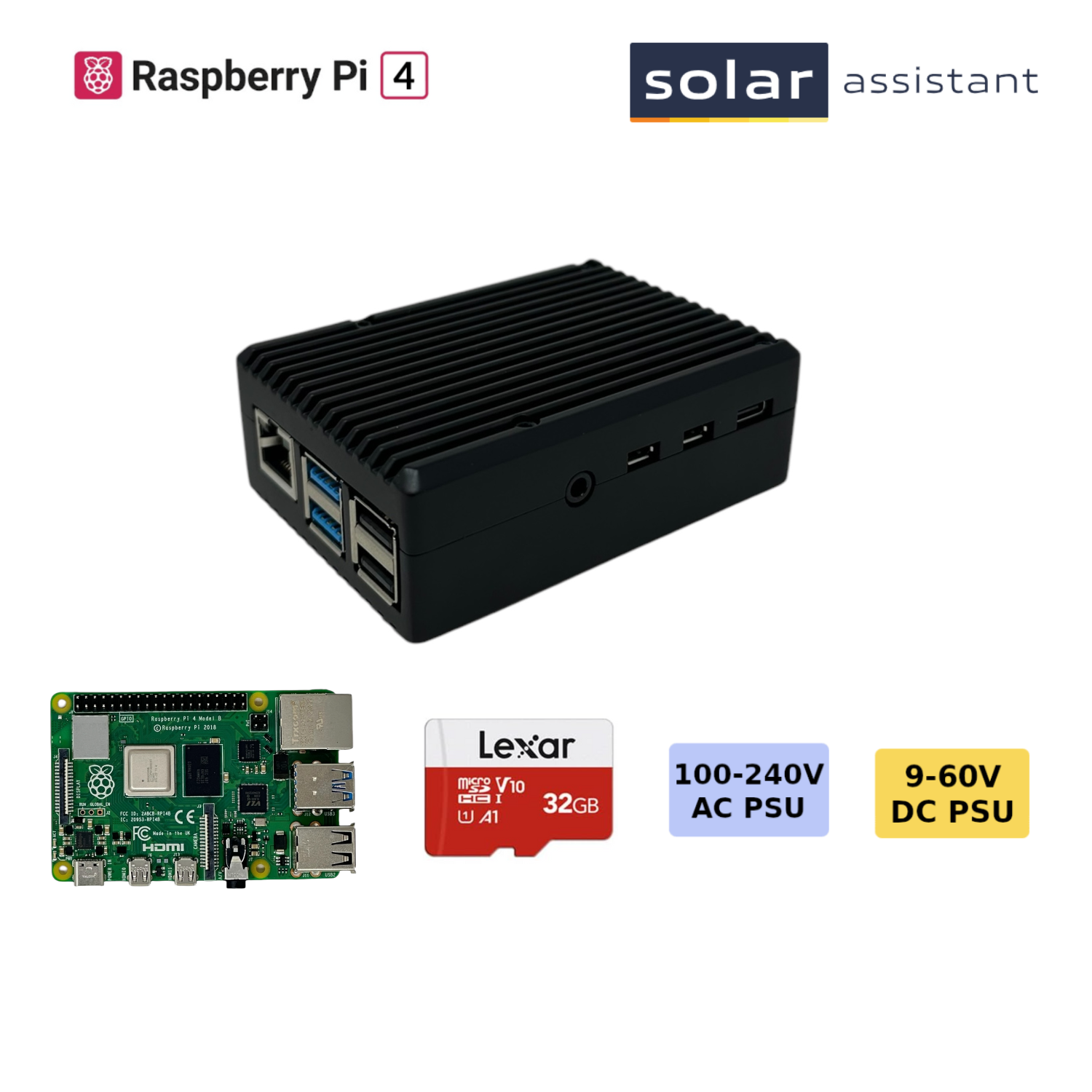

✅ WHAT'S INCLUDED
- 1x Raspberry Pi 4 Box (1.8GHz Quad-core, 64-bit processor)
- 1x DC-DC Power Supply (9V-60V input, USB-C 5V/3A output)
- 1x 230V Mains Power Supply to USB-C 5/3A
- 1x Lexar 32GB MicroSD Card (Preloaded Software)
- Black Enclosure, fully assembled in Aluminium with cooling pads inside
- 2GB RAM, 8GB onboard eMMC
- WiFi 2.4GHz/5GHz, Ethernet 1Gbps
- 4x USB Ports
NOTE: For monitoring Pylontech, Pytes and Sunsynk Inverters and batteries , the RS485 cables are required (sold separately).
✅ Communication Cables
Please refer to the related products
✅ POWERED FROM YOUR BATTERY
Direct battery connection allows continuous monitoring—even during faults or AC loss. Suitable for 12V, 24V, and 48V systems. No AC adapter needed.
✅ CLEAR, USER-FRIENDLY GRAPHS
Data is displayed in real time with simple visual charts—no programming or complex maths required. Monitor trends, power usage, and system health at a glance.
✅ EXPANDABLE & CUSTOMISABLE
Need to monitor multiple inverters in parallel? Additional communication cables can be added. The system also supports Victron Smart Shunt with VE.Direct-to-USB connections.
The Raspberry PI 4 is connected to the Wi-Fi or directly to the local area network (Ethernet)
Complete Package for Easy Setup
The Raspberry PI 4 device comes fully loaded with solar monitoring software and housed in a durable plastic enclosure. The license fee is included—no annual fees or renewals. We’ve also included a special RJ45 to USB cable compatible with Voltacon inverters for hassle-free communication.
With this package, you'll have everything you need to collect data and monitor your system remotely.
Power Supply Options
Option A: 9-60V DC USB Power Supply
Ensure uninterrupted monitoring by powering your device directly from your battery, even if the inverter disconnects or enters fault mode.
- Suitable for 12V, 24V, and 48V batteries
- 9-60V DC input via 10mm ring connector
- 5V 3A USB type C output
- Length: 2.5m
Option B: Official Raspberry Pi Power Supply
A high-quality, stable power supply for 24/7 operation. Includes four interchangeable mains adapters for Europe/South Africa, UK, Australia, and the USA.
Communication Port of Solar Inverter
All off-grid and hybrid inverters are equipped with a serial communication port. Our new inverters come with an RJ45 COM port for easy communication. The older models use the classic RS232 port.
Compatible with Victron Smart Shunt Resistors
For precise current and voltage measurements, Solar Assistant is fully compatible with Victron Smart Shunt resistors (500mA and 1000mA). Simply connect using a VE.Direct to USB cable. It’s a plug-and-play setup—no programming needed!
