Description
xComplete Off-Grid Solar Photovoltaic Kit. It includes Inverter with Charger, PV Cables and Protection Accessories. Easy and Safe Set Up. Batteries are charged by supercharger with 4 independent MPPT inputs and 12000Watt solar PV power. Free monitoring for life with Solar - Assistant Orange PI LTS controller
Skip the complications and head straight for the comfort and freedom of a complete energy system. This multifunctional energy system brings together a powerful sine wave inverter, a sophisticated battery charger, a high-speed AC transfer switch and AC distribution in a single lightweight and compact enclosure, which cuts down on the time required to install and eliminates pesky technical procedures that could crop up for the novice installer. The result is a seamless installation process with a control cabinet that works hard -- though you'd never be able to guess!
Every Silent Power Off-Grid Photovoltaic Control Cabinet is designed with a state-of-the-art battery monitoring system with added Bluetooth connectivity. Access temperature and energy status update and avoid premature failures via any Android-based mobile phone.
To get started, simply connect the solar panel and battery cables to the protected power terminals of the cabinet. The Silent Power Off-Grid Photovoltaic Control Cabinet is a complete system that focuses on energy but keeps the user at the centre of its design.
Voltacon develops plug'n'play off grid control cabinets that are made in the UK for continuous 230VAC power supply. The main power conversion system is our Conversol inverter/charger with active output power 10000VA/10000W, the MPPT 80A solar charger and the battery monitor from Victron (BMV-712). In this version, we have added the parallel function for easy expansion up to 45kW (equivalent to 9 inverters).
The Solar-Assistant with Orange PI 3 LTS is included and programmed to monitor your inverter performance over the internet. No annual fees are required.

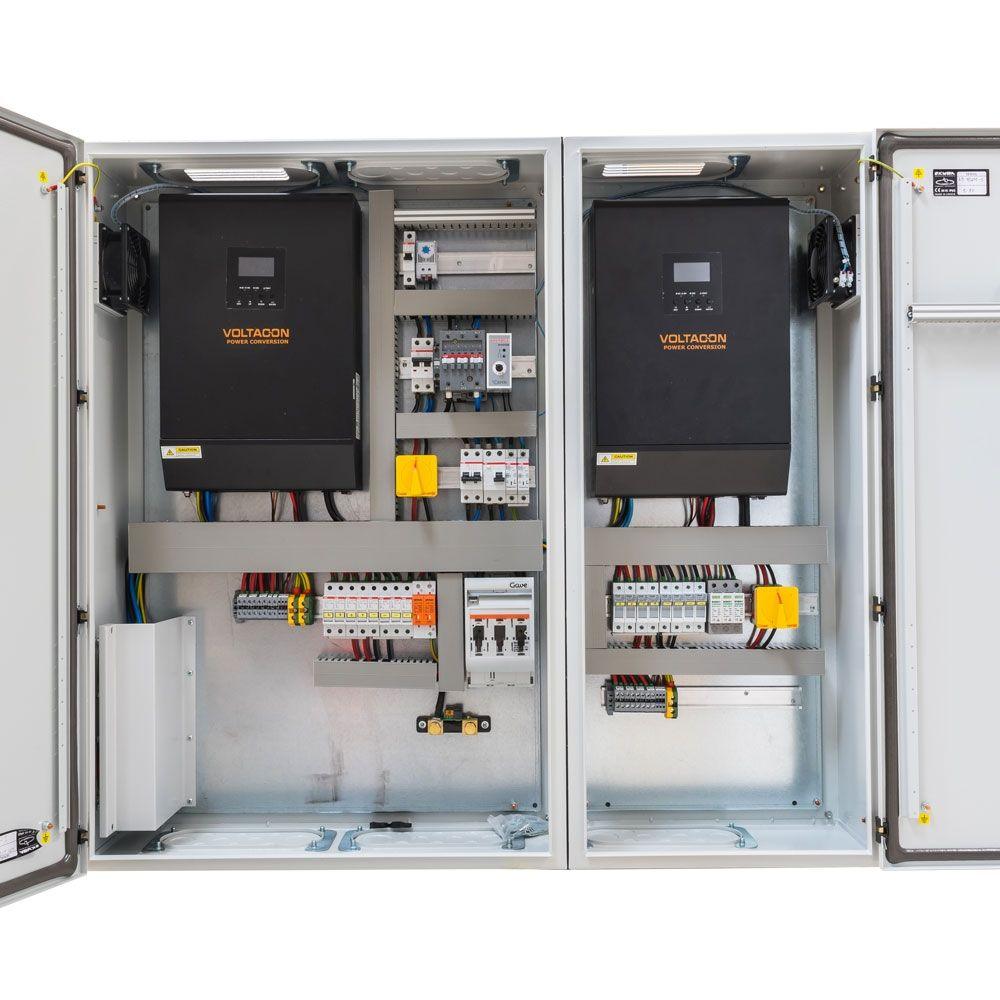

THE POWER STATION CONTAINS
- Solar Inverter 2x 5000W with MPPT Battery Charger
- AC Output Terminals 230VAC
- AC Circuit Breaker & RCD
- AC Output Terminal for an external generator
- AC Output breaker and soft start for generator
- Victron BMV-712 with Bluetooth, battery monitoring.
- Integrated PV Combiner with fused terminals
- DC Disconnector for the solar panels
- DC Disconnector for the batteries
- Maximum PV Power 12000Watt
DIMENSIONS OF SILENT POWER SP1048-D
- 1005mm height x 1600mm width x 250mm depth
- Three compartments, door 1 for inverter 1, door 2 for DC and ac protection circuits, surge protection and bus bars, door 3 for the inverter 2
