Description

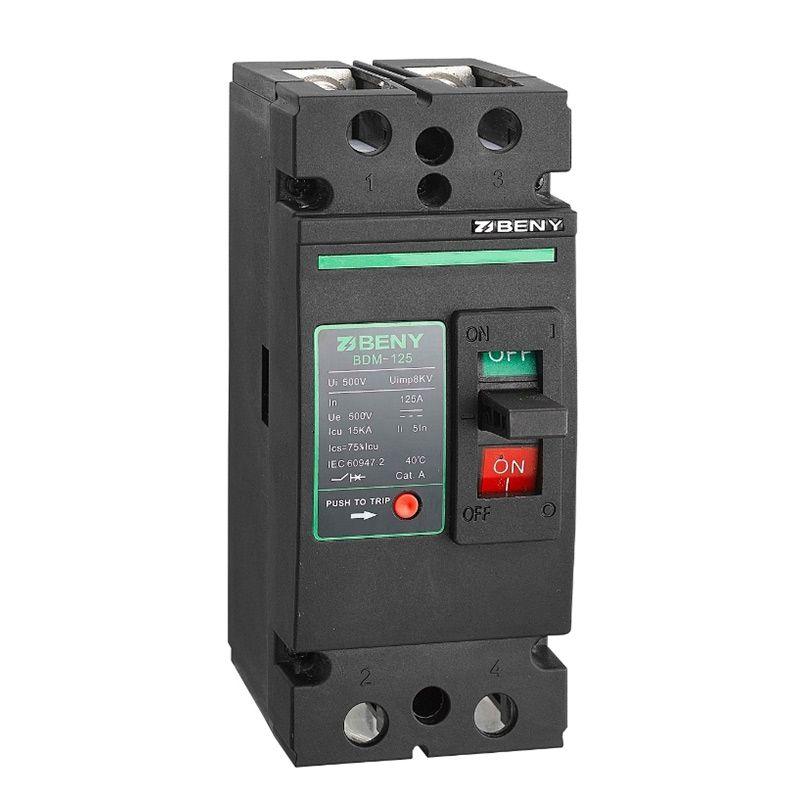

xMCB with high voltage breaking up to 500V and 120A and 250A. It features overload and short circuit protection. In-line breaker for high current batteries and solar PV strings.
The ideal and safe option to protect photovoltaic equipment with high current and voltage. The Moulded Case Circuit Breaker is an indispensable part of large solar photovoltaic combiner boxes. The high breaking capacity makes this equipment suitable for breaking batteries and energy storage loads.
The breaker is also used in high-current energy storage systems where the inverter needs to break dc currents from 80A up to 250A DC.
FEATURES DC BREAKER
- High short circuit breaking capacity
- Protection from overload, short circuit and unusual operation
- Rated voltage up to 500V dc
- Rated current 125A and 250Ah
- IEC60947-2, GB14048-2
- Easy to install
- Safe to operate, insulated terminals
- Option to install it in IP65 enclosure
BDM 125A 2P up to 500V 80A, 100A, 125A IP65
BDM 250A 2P up to 500V 160A, 200A, 250A IP65
