Description
xEconomical Energy Storage System: Paving the Way Towards Sustainable Future with Wallet-Friendly Price!

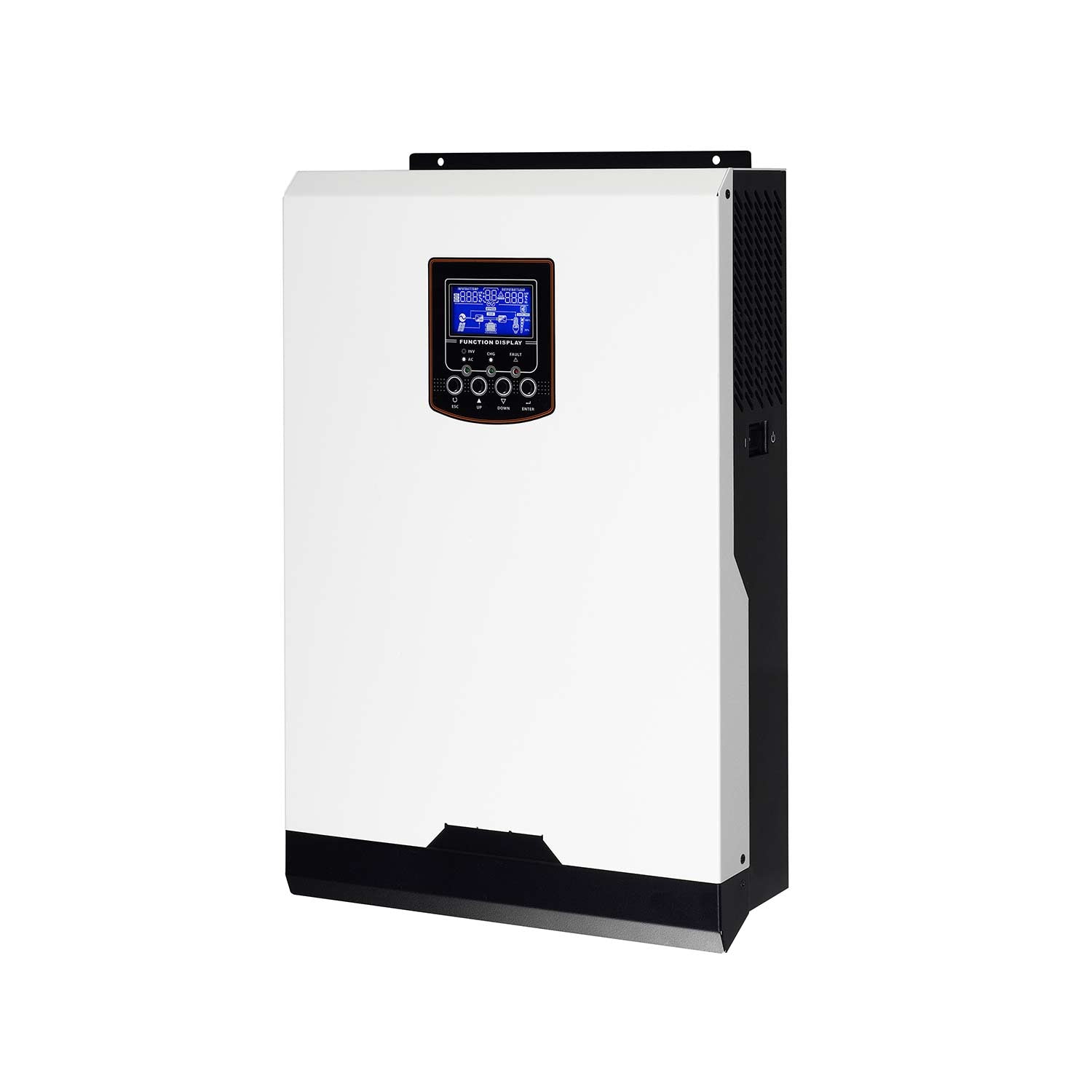

AXPERT VM II Premium BMS Pylontech 5KVA 48V 80A, with anti-dust filter. MPPT. 500VDC, PV Max: 4000W,
Voltacon Power hereby releases the most economical ESS you can find in the market! Meets our “ESS-VM II Premium 5K+LIO II-4810E”!
The preferred energy storage is our Lithium Ion 5kW battery with Active-Balancing
It also works better with the following batteries:
Pylontech US2000C and US5000C
Here are three advantages of our ESS-VM II Premium 5K+LIO II-4810E
1. Economical Energy Solution
By investing only EUR1500, your entire family can enjoy the benefits that ESS-VM II Premium 5K+LIO II-4810E brings to you. The power of 5kw generated from this ESS is sufficient to support the entire household’s daily use of electricity, and the 5KWH lithium battery is ready to support energy usage during night time, establishing a perfect renewable energy cycle.
2. Innovative battery technology:
ESS-VM II Premium 5K+LIO II-4810E, is consisted of one 5KW Off-grid PV inverter and one 5KWH Lithium Ion Battery. The most important breakthrough is the built-in Active Cell Balancing ensuring optimal performance and longevity of the battery pack. Compared to traditional battery technology, lithium-ion batteries charge faster, last longer, and have a higher power density for more battery life in a lighter package. In addition, scalable battery module designs up to 16 units yield a maximum energy storage capacity up to 80KWH!
3. Easy to operate and maintain:
With the anti-dust kit installed, PV inverter can reduce dust buildups in the system which may cause cooling inefficiency. A relatively simple electrical and mechanical design makes off-grid PV inverters easier to maintain. The ESS is also equipped with BMS (Battery management system), a communication port for battery monitoring, user can track the status of the ESS with ease. Lastly, the wall-mounted design also allows it to save up space in the residential area.
Specifications
x| MODEL |
Conversol Premium VM-II |
|
| Rated Power |
5000VA/5000W |
|
|
INPUT |
||
| Voltage | 230 VAC ± 5% | |
| Selectable Voltage Range | 110-280 VAC | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
|
OUTPUT |
||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 10000VA for 5 sec | |
| Efficiency (Peak) | 93% Line mode, 90% Battery mode | |
| Transfer Time | 0 ms | |
| Waveform | Pure sine wave | |
|
BATTERY Pylontech and ACE-Active Balancing Batteries Compatible |
||
| Battery Voltage |
48 VDC |
|
| Floating Charge Voltage |
54 VDC (up to 64VDC) |
|
| Overcharge Protection |
63 VDC |
|
|
SOLAR CHARGER & AC CHARGER |
||
| Maximum PV Array Power |
5000 W |
|
| MPPT Range @ Operating Voltage |
60-115 V |
|
| Maximum PV Array Open Circuit Voltage |
145 VDC |
|
| Maximum Solar Charge Current | 100 A | |
| Maximum AC Charge Current | 100 A | |
| Maximum Charge Current | 100A | |
| Maximum Efficiency | 98% | |
| Standby Power Consumption | 2W | |
|
PHYSICAL |
||
| Dimension, D X W X H (mm) | 120 x 300 x 440 | |
| Net Weight (kgs) | 10 | |
|
OPERATING ENVIRONMENT |
||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0℃ to 55℃ | |
| Storage Temperature | -15℃ to 60℃ | |
* There are charging current selection only available for 230VAC system.
Product specifications are subject to change without further notice
