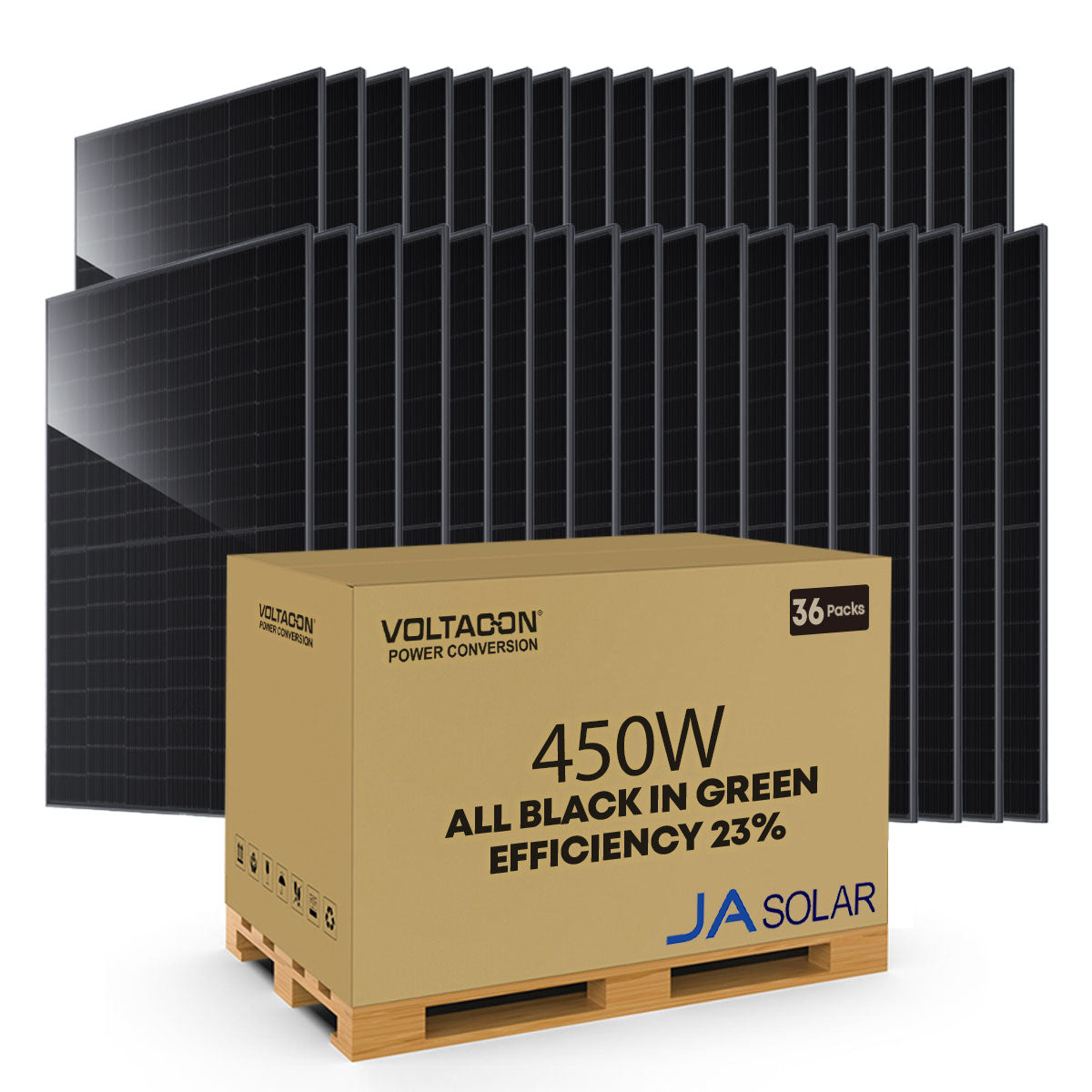

xFactory Pallet of 36 JA Solar JAM54D41-450/LB 450W Full Black Bifacial Dual Glass Solar Panels
This listing is for a factory sealed pallet of 36 brand-new JA Solar JAM54D41-450/LB 450W modules. Each panel uses high-efficiency N-type bifacial cells and dual glass construction, delivering exceptional power output, durability and long service life for residential, commercial and utility scale projects.
Premium JA Solar 450W Dual Glass Modules
- 450W full black modules for high output and modern aesthetics.
- N type bifacial cell technology generates power from both front and rear sides.
- Dual glass design improves protection against moisture, UV and thermal stress.
- Ideal for rooftops, carports, ground mount and commercial installations.
Bifacial Performance and Higher Energy Yield
Thanks to the bifacial cell architecture, these panels can harvest additional energy from reflected light on the rear side, especially when installed over bright or reflective surfaces. This leads to:
- Higher overall energy yield compared to standard monofacial panels.
- Improved performance in low light and diffuse light conditions.
- Better long term stability and reduced degradation over time.
Factory Pallet with Full Traceability
- Brand new factory pallet containing 36 x 450W JA Solar modules.
- All serial numbers clearly printed on the pallet and labels for easy warranty tracking.
- Original factory packaging for safer handling and transport to your project site.
Delivery Across Europe and VAT Options
- Fast pallet delivery available to all European countries.
- VAT free invoicing available for eligible VAT registered businesses within the EU (contact us with your company details).
Built for Harsh Weather Conditions
JA Solar dual glass modules are engineered for reliability in demanding environments. The robust mechanical design and dual glass structure provide:
- High resistance to snow and wind loads.
- Enhanced protection against humidity and temperature cycles.
- Long operational life with stable performance in outdoor conditions.
Easy and Professional Installation
- Equipped with Stäubli MC4 EVO2 connectors for secure, low loss connections.
- Pre fitted positive and negative cable leads for fast wiring on site.
- Optimised module size and weight for easier handling on roofs and mounting structures.
Certified Quality and Safety
JA Solar panels are independently tested and certified to international standards, ensuring safe and reliable operation:
- IEC 61215 and IEC 61730 performance and safety standards.
- UL 61215 and UL 61730 for North American compliance.
- IEC 62941 for manufacturing quality assurance.
- ISO 9001, ISO 14001 and ISO 45001 certified production.
- UL fire rating suitable for residential and commercial buildings.
Long Term Warranty and Return on Investment
- 30 year linear power output warranty for long-term energy yield.
- Designed to provide stable performance and low degradation over the lifetime of the system.
- Perfect choice for installers, EPC contractors and project developers who need reliable, high efficiency bifacial modules at trade pricing.
Choose this factory pallet of 36 x JA Solar JAM54D41-450/LB 450W dual glass bifacial modules for your next project and benefit from premium build quality, advanced N type technology and outstanding long term value.
Specifications
xElectrical Characteristics (STC) 450Watt PV Solar Module
| Parameter | Details |
|---|---|
| Rated Maximum Power (Pmax) | 450 W |
| Open Circuit Voltage (Voc) | 39.00 V |
| Maximum Power Voltage (Vmp) | 32.82 V |
| Short Circuit Current (Isc) | 14.48 A |
| Maximum Power Current (Imp) | 13.71 A |
| Module Efficiency | 22.5% |
| Power Tolerance | 0~+3% |
| Temperature Coefficient of Isc | +0.045%/°C |
| Temperature Coefficient of Voc | -0.250%/°C |
| Temperature Coefficient of Pmax | -0.290%/°C |
| Standard Test Conditions (STC) | 1000 W/m², AM1.5, cell temperature 25°C |
Electrical Characteristics with 10% Solar Irradiation Ratio
| Parameter | Details |
|---|---|
| Rated Maximum Power (Pmax) | 486 W |
| Open Circuit Voltage (Voc) | 39.30 V |
| Maximum Power Voltage (Vmp) | 32.82 V |
| Short Circuit Current (Isc) | 15.64 A |
| Maximum Power Current (Imp) | 14.81 A |
| Irradiation Ratio (Rear/Front) | 10% |
Mechanical Parameters
| Mechanical Specification | Details |
|---|---|
| Cell Type | Mono n-type |
| Weight | 22 kg |
| Dimensions | 1762 ± 2 mm × 1134 ± 2 mm × 30 ± 1 mm |
| No. of Cells | 108 (6 × 18) |
| Cable Cross Section Size | 4 mm² (IEC), 12 AWG (UL) |
| Junction Box | IP68, 3 diodes |
| Connector | QC 4.10-35/MC4-EVO2 |
| Cable Length (Including Connector) | Portrait: 400 mm | Landscape: 1200 mm |
| Front Glass/Back Glass | 1.6 mm/1.6 mm |
