Description

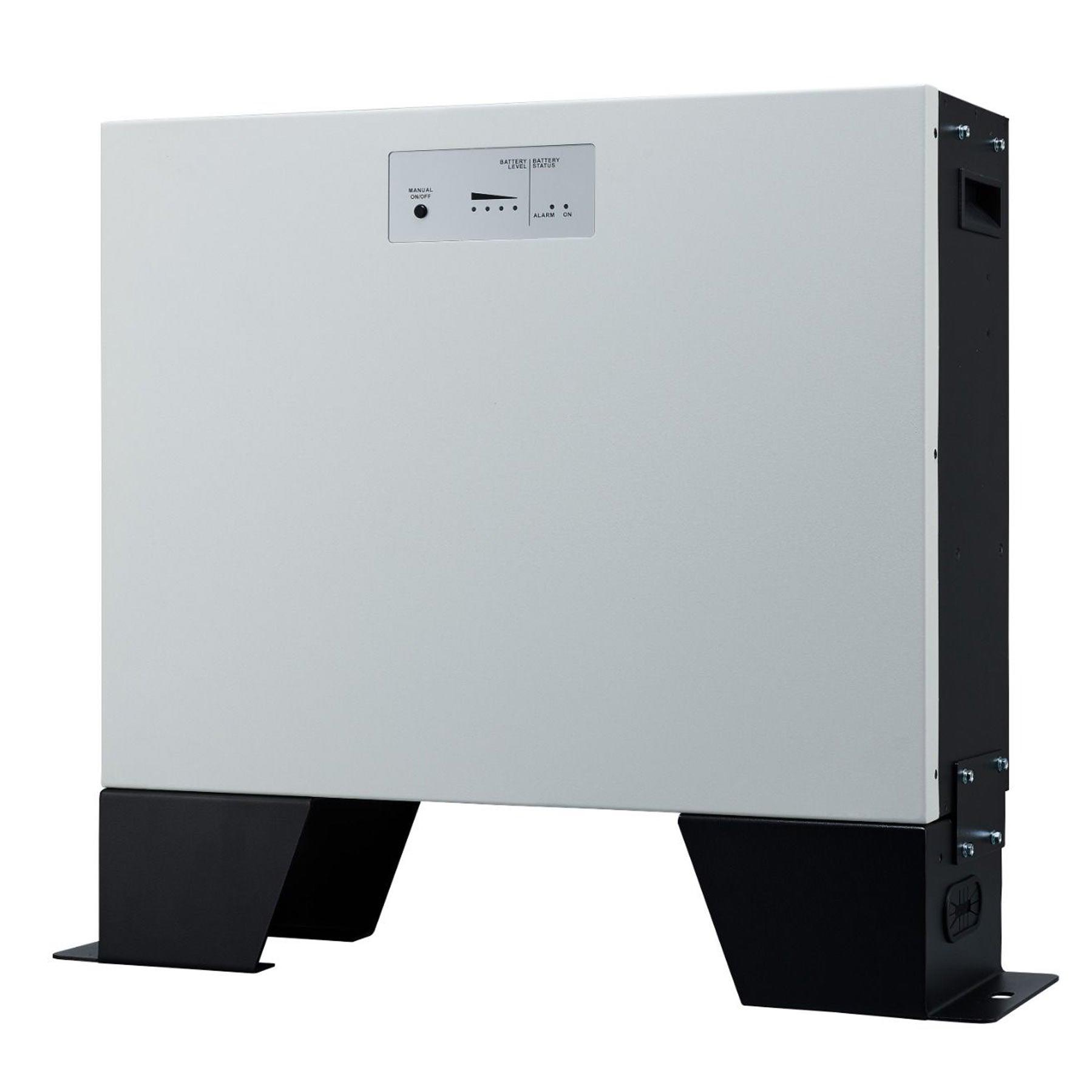

xLIO II-4810 is a Lithium-ion battery module specially designed for an energy storage system with a 48V system. Lithium-ion battery modules can be used alone or in parallel, to prolong backup time or meet the criteria of an inverter with a larger power rating with parallel operation. Compatible with Voltacon, Voltronic, MPP Solar
II-4810 is a Lithium-ion battery module specially designed for an energy storage system with a 48V system. Lithium-ion battery modules can be used alone or in parallel, to prolong backup time or meet the criteria of an inverter with a larger power rating with parallel operation.
It is equipped with EU-certificated easy connectors to save valuable time for installers. The connectors are designed on the side of the module for easy wiring. Each module can be easily stacked with brackets on the back ensuring firmly fixed on the wall to prevent it from falling.
Main Features
- Modular design for easily scalable
- Suitable for a wide range of inverters with 48v system
- Easy connector & floor-standing design
- Compact size and lightweight
- Easy to install on the floor.
- 95% DOD high performance
- Fast charging
Lithium iron Phosphate (LPF) cell guarantees safety, reliable operation and long-lasting performance for 12 years.
The batteries are easy to install directly on the floor using the special support made of steel.
It is compatible with a wide range of off-grid inverter under the BMS protocol LIB
For large systems with 8kW or 11kW inverters, we recommend the PDU (power distribution unit) which is a white box with large copper bus-bars and insulators. To manage the high discharge currents (160A or above) the power cables of the batteries need to be "grouped" on 1000A 1000A-rated distribution system
| Battery Cell | Lithium Iron Phosphate |
| Applicable inverter rating | 5.6kW or higher |
| Usable Energy | 5kWh |
| Rated Discharging Current | 150A |
| Peak Discharge Current | 192A, 1 minute |
| Nominal Voltage | 51.2V |
| Operating Voltage | 38-56VDC |
| Charging Current | 100A Max, 30A Default |
| Net Weight | 48kg |
| Dimensions | 185x540x320mm |
| Operating Temperature | 0°C to 50°C |
| Storage temperature at 50% SOC and specified temp, recoverable capacity in % vs time / 50% |
<18 months -20°C to +25°C <3 months 25°C to + 45°C <1 month: 45°C to 60°C 15-25 deg°C is the recommended storage temp |
| IP Protection | IP 20 |
| Communication | RS485 port , RJ45, CAN |
| Certification | UN38.3 IEC 62619 |
