Description

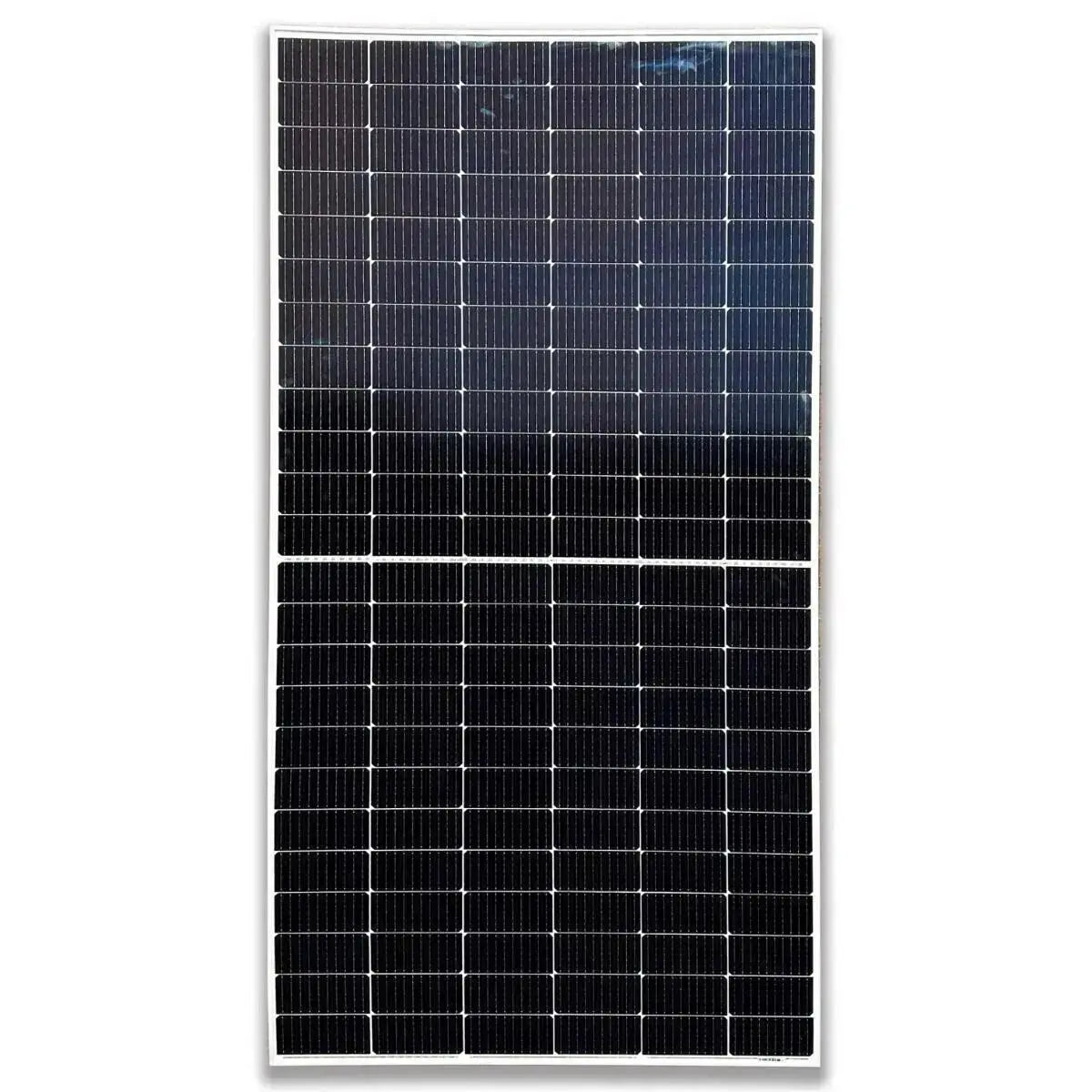

xJinko Solar 590W Bifacial N-Type Dual Glass Solar Panel
The Jinko Solar 590W Tiger Neo bifacial solar panel is a high-performance N-Type photovoltaic module designed for residential, commercial, agricultural and large-scale solar installations. Built with advanced TOPCon cell technology, dual glass construction and bifacial power generation, this panel delivers excellent efficiency, long-term reliability and increased energy yield from both sides of the module.
With a module efficiency of 22.84% and a rated front-side output of 590W, this panel is ideal for customers who require a powerful, durable and future-ready solar module. The bifacial design allows the rear side of the panel to capture reflected sunlight from surfaces such as concrete, gravel, white roofs and light-coloured ground areas, helping to increase total energy production.
Key Features
- 590W high-power Jinko Solar Tiger Neo module
- N-Type TOPCon technology for better low-light performance
- Bifacial power generation for additional rear-side energy gain
- Dual glass construction for enhanced durability and longer service life
- 22.84% module efficiency under STC conditions
- Lower LID and LeTID degradation compared with conventional modules
- SMBB cell technology for improved current collection and reliability
- Anti-PID design to reduce performance loss over time
- Certified mechanical load resistance: 5400Pa front side and 2400Pa rear side
- 30-year linear power warranty and 12-year product warranty
Why Choose a Bifacial Dual Glass Solar Panel?
Bifacial solar panels generate power from both the front and rear sides of the module. When installed above reflective surfaces, the rear side can capture additional sunlight and increase the total energy yield. This makes bifacial panels an excellent choice for ground mount systems, flat roofs, commercial buildings and open-space solar projects.
The dual glass structure improves strength, weather resistance and long-term stability. Unlike traditional backsheet panels, dual glass modules provide better protection against moisture, UV exposure and mechanical stress, making them suitable for demanding outdoor solar installations.
Advanced N-Type TOPCon Technology
The Jinko Tiger Neo series uses N-Type TOPCon cell technology, designed to reduce light-induced degradation and improve performance in low-light conditions. This helps the panel maintain stronger output over its lifetime, especially in real-world UK and European weather conditions where sunlight levels vary throughout the year.
Warranty and Long-Term Performance
This Jinko Solar module is supported by a 12-year product warranty and a 30-year linear power warranty. The panel is designed with only 1% first-year degradation and 0.40% annual degradation over 30 years, retaining 87.4% of its original output after 30 years.
Ideal Applications
- Residential solar PV systems
- Commercial rooftop solar installations
- Ground mount solar farms
- Flat roof solar systems
- Agricultural and industrial solar projects
- Hybrid and off-grid solar systems
- Battery storage and energy independence projects
Albedo Factor is the amount of sunlight diffusely reflected by an object and varies according to the time of year, the season and the material covering the ground.
Specifications
xTechnical Specifications
| Specification | Value |
| Manufacturer | Jinko Solar |
| Series | Tiger Neo 72HL4-BDV |
| Model Range | JKM575-600N-72HL4-BDV |
| Rated Power | 590W |
| Cell Type | N-Type Mono-crystalline TOPCon |
| Number of Cells | 144 cells, 72 x 2 |
| Module Efficiency | 22.84% |
| Dimensions | 2278 x 1134 x 30mm |
| Weight | 31.0kg |
| Front Glass | 2.0mm anti-reflection coated glass |
| Back Glass | 2.0mm heat strengthened glass |
| Frame | Anodised aluminium alloy |
| Junction Box | IP68 rated |
| Connector Type | JK03M / MC4 / others |
| Output Cable | 4.0mm², positive 400mm, negative 200mm |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 30A |
| Operating Temperature | -40°C to +70°C |
| Protection Class | Class II |
| Fire Type | IEC Fire Type Class C |
Electrical Characteristics at STC
| Electrical Specification | Value |
| Maximum Power, Pmax | 590W |
| Maximum Power Voltage, Vmp | 44.17V |
| Maximum Power Current, Imp | 13.36A |
| Open Circuit Voltage, Voc | 52.90V |
| Short Circuit Current, Isc | 14.07A |
| Module Efficiency | 22.84% |
| Power Tolerance | 0 to +3% |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | 0.045%/°C |
Bifacial Performance Data
| BNPI Specification | Value for 590W Panel |
| Maximum Bifacial Power | 649W |
| Maximum Power Voltage, Vmp | 44.33V |
| Maximum Power Current, Imp | 14.64A |
| Open Circuit Voltage, Voc | 52.93V |
| Short Circuit Current, Isc | 15.37A |
| Bifaciality Coefficient | Voc 98 ± 5%, Isc 80 ± 5%, Pmax 80 ± 5% |
Packaging Information
| Packaging Detail | Value |
| Pallet Dimensions | 2338 x 1140 x 1251mm |
| Panels Per Pallet | 36 pcs |
| Panels Per Stack | 72 pcs |
| Panels Per 40ft HQ Container | 720 pcs |
