Description

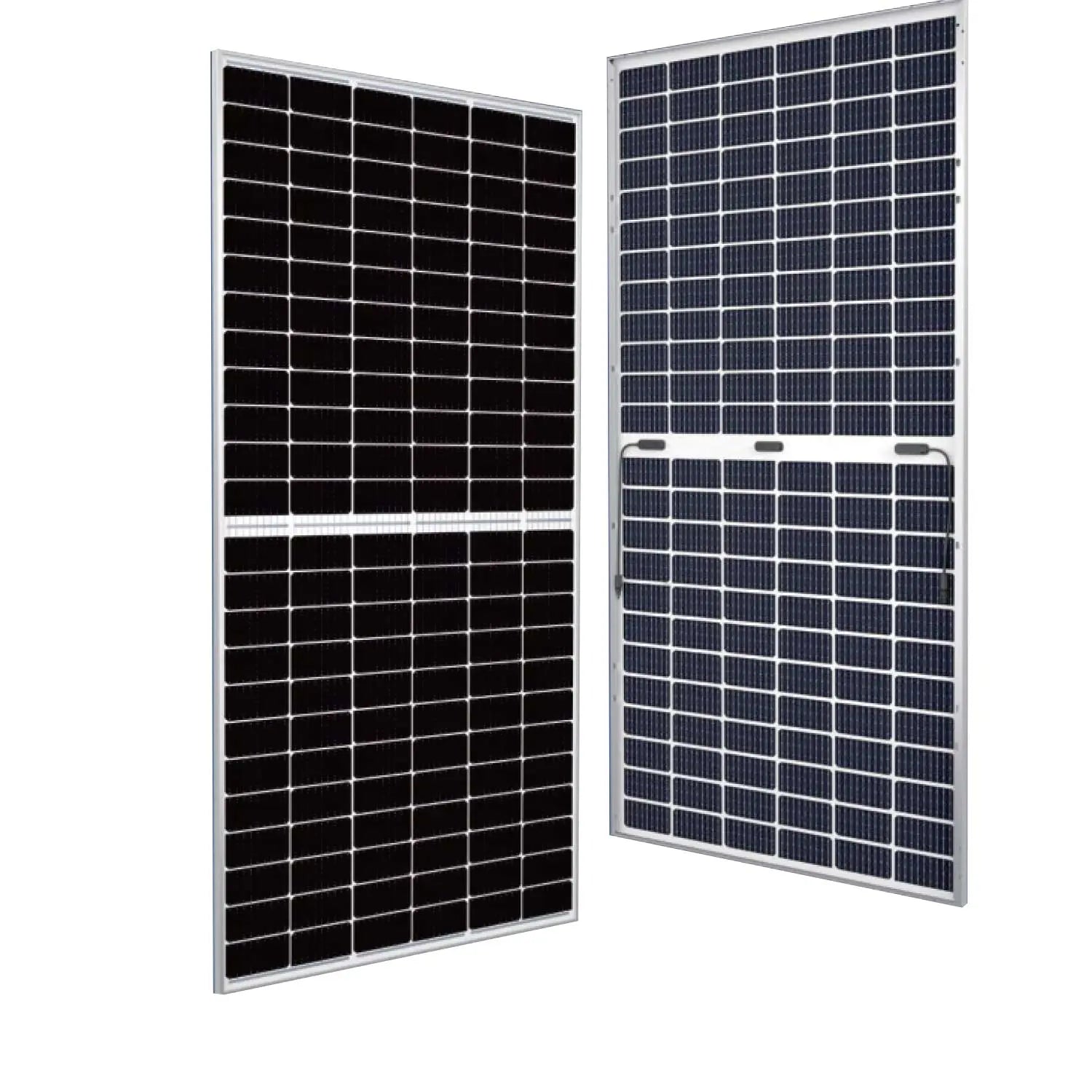

xJA Solar 600W Bifacial Solar Panel – N-Type Monocrystalline
Bycium+ Cell Technology Efficiency 26 %

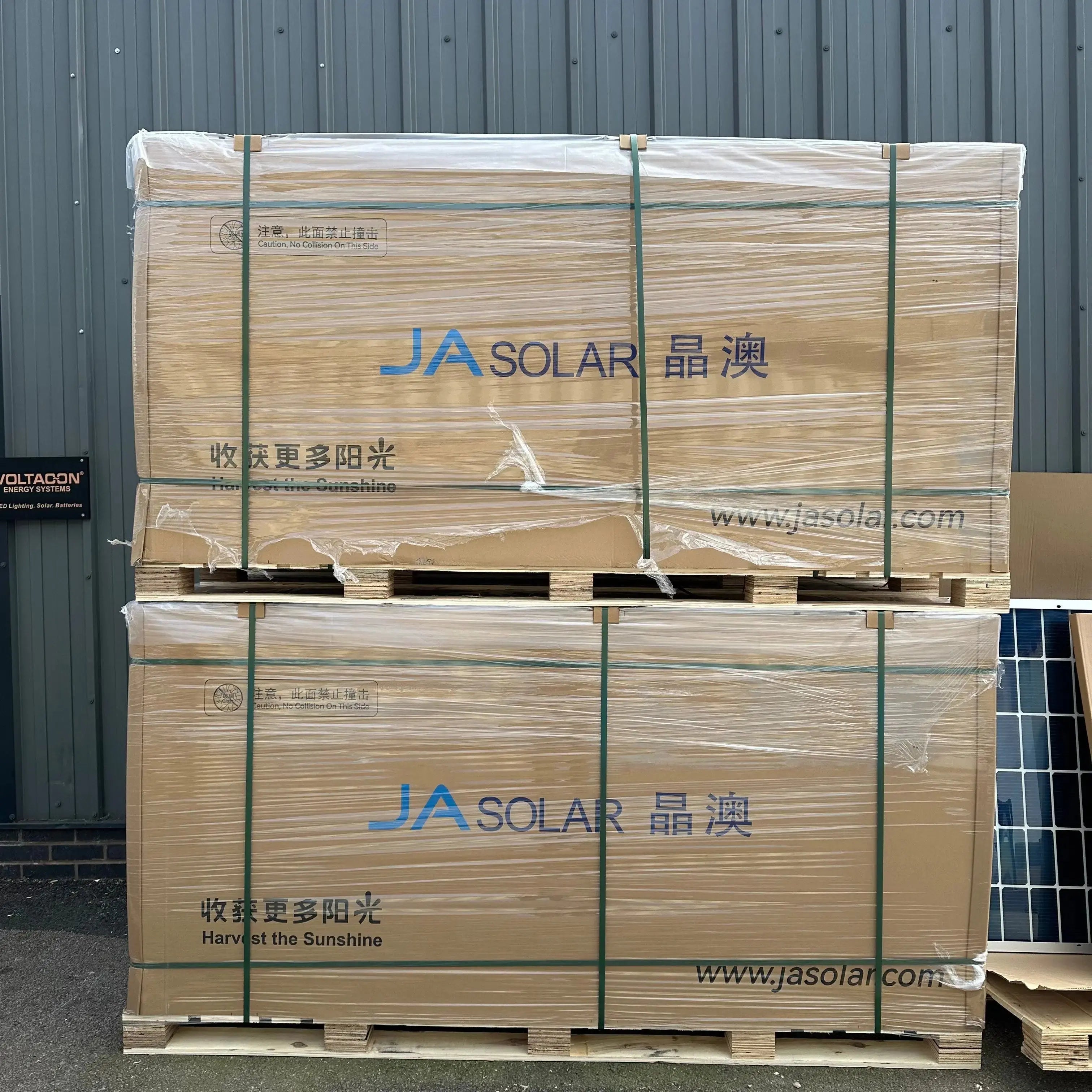

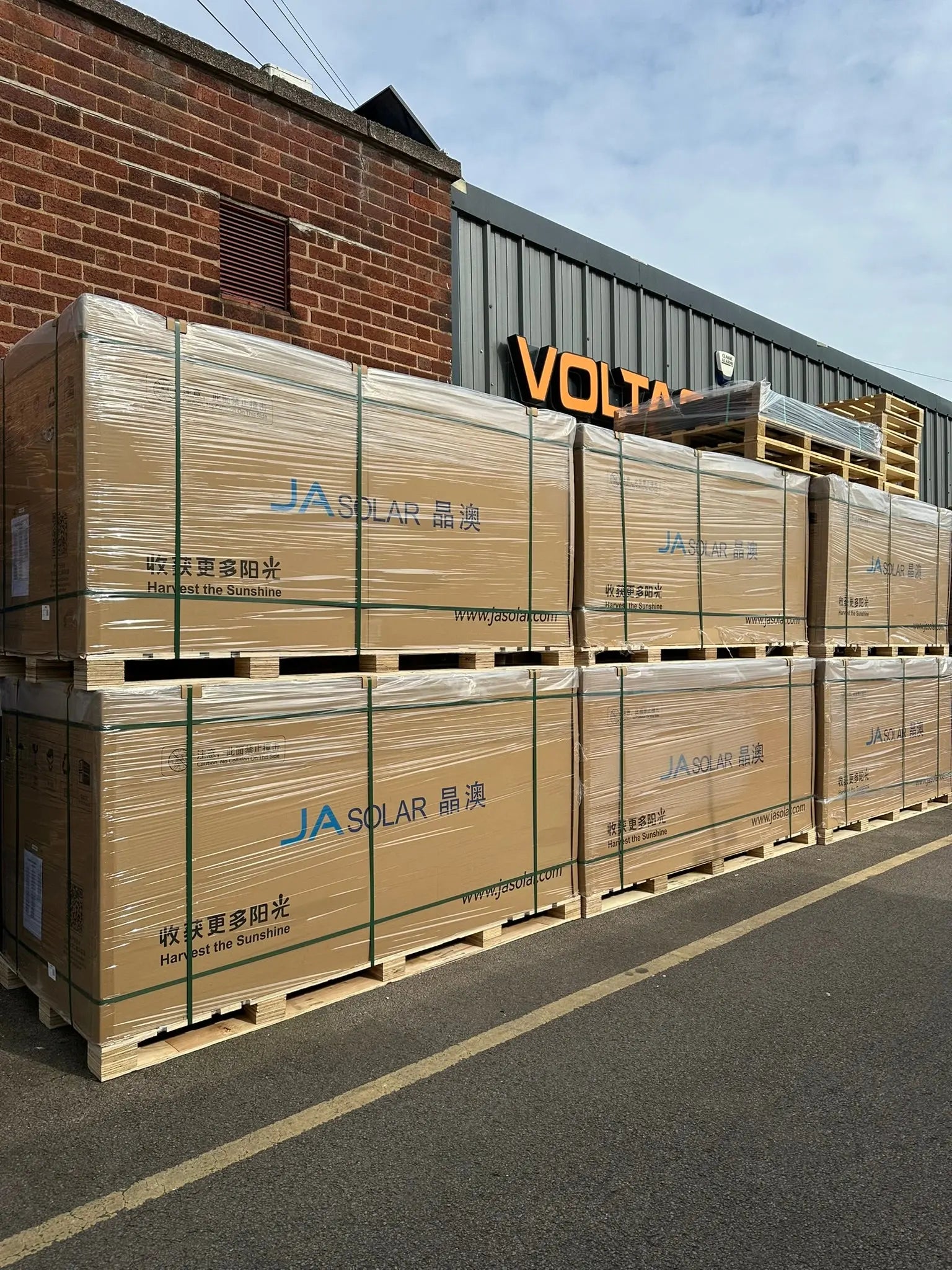

*** Pallet of 36 Modules ***
Maximise Your Solar Potential with Dual-Sided Innovation
Discover the next generation of solar energy with the JA Solar 600W bifacial module. Built with precision using N-Type monocrystalline cells and half-cut MBB (multi-busbar) technology, this solar panel delivers exceptional efficiency and extended durability. The bifacial design enables energy capture from both sides of the panel, harnessing reflected light from surfaces like concrete, sand, and snow — significantly increasing your total energy yield without expanding your footprint.
Product Code: JAM72D40-600/LB - all panels have a unique serial number
Designed for Performance and Longevity
Unlike traditional modules, the JA 600W bifacial panel integrates double glass layers that enhance structural integrity while providing superior resistance to environmental stress, moisture, and UV exposure. Its N-Type cells are highly stable and experience less degradation over time, ensuring reliable output for decades. Whether for rooftop systems, ground-mounted installations, or solar farms, this panel is engineered to perform in all conditions.
Key Features
- Rated Power Output: 600W
- Module Efficiency: 22.7%
- Cell Technology: N-Type Monocrystalline, Half-Cell with MBB
- Bifacial Gain: Up to 20% additional output from rear-side collection
- Build Quality: Dual glass (2.0mm tempered glass front and back)
- Size & Weight: 2333 × 1134 × 30mm | 32.5kg
- Operating Temperature Range: -40°C to +85°C
Why Choose This Panel?
- ✅ Double-Sided Power – Harvest more energy from reflected sunlight
- ✅ High Efficiency in Low Light – Designed to perform during cloudy weather and early/late daylight hours
- ✅ Enhanced Durability – Glass-glass structure withstands harsh climates and extreme temperatures
- ✅ Low Degradation – Only 0.4% annual power loss guarantees 87.4% performance after 30 years
- ✅ Eco-Friendly Manufacturing – Lead-free soldering and reduced carbon footprint production process
Certifications & Compliance
- IEC 61215, IEC 61730
- ISO 9001, ISO 14001, ISO 45001
- Fire rating: Class C
Warranty & Peace of Mind
- Product Warranty: 12 years
- Power Output Warranty: 30 years (linear performance guarantee)
This high-efficiency, bifacial 600W panel is trusted for utility-scale solar parks, commercial rooftops, and premium residential projects. Backed by a global leader in photovoltaic manufacturing, JA Solar delivers uncompromising quality and performance to drive your energy independence.
Albedo Factor is the amount of sunlight diffusely reflected by an object and varies according to the time of year, the season and the material covering the ground.
Premium Modules - 1% 1st Year Degradation 0.4% Annual Degradation Over 30 Year
N-Type /Positive power tolerance of 0~+3%/Max module efficiency 26%
Notice: Ideal for ground mounting installation and flat roofs
Dual Glass Solar Panel- Befit and Key Features
- Module type: Bifacial+dual glass
- Cell size: 182*182mm
- Module dimension: 2278*1134*30mm
- Linear performance for 30 years
- The panel will preserve 87.4% of the original performance
- Warranty 12 years for the parts including frame, cells, diodes, and junction box.
- Module peak power: 600W(front side)+125W(21% increased from back side), in total 665.5W
Specifications
xJAM72D40-MB JA SOLAR BIFACIAL
600Watt Monocrystalline
Electrical Characteristics at Standard Test Conditions
| Maximum power Pmax | 600Watt |
| Power Tolerance | 0- + 5Watt |
| Module Efficiency | 26% |
| Maximum Power Current | 13.38A |
| Maximum Power Voltage | 44.85V |
| Short Circuit Current Isc | 14.04A |
| Open Circuit Current Voc | 52.79V |
Electrical Characteristics with 26% rear side power gain
| Maximum Power | 725Watt |
| Maximum Power Current Imp | 14.45A |
| Maximum Power Voltacon Vmp | 44.85V |
| Short Circuit Current Isc | 15.16A |
| Open Circuit Voltacon Voc | 52.79V |
Mechanical Characteristics
| Cell Type | Mono N-Type, 182x182mm, 144 (6x24) Half Cut Cells |
| Glass | 2mm+2mm, High Transmission , Low Iron, Tempered Glass |
| Frame | Anodized aluminium alloy |
| Junction box | IP68 Rated, with Bypass diodes |
| Dimensions | 2278 x 1134 x 30mm |
| Output cable | 4mm2 |
| Weight | 31.8kg |
| Installation Hole Location | See drawing in downloads |
Cables
Portrait 300mm+ / 400mm -
Landscape 1300mm (+) / 1300mm(-)
Coefficient / Tolerance
Power Tolerance : 0-3%
Temperature Coefficient of Isc(a_Isc) : +0.045% / C
Temeprature Coefficient of Voc(β_Voc): -0.250% / C
Temeprature Coefficient of Pmax(γ_Pmp): -0.290% / C
