Description
xOne of the largest flexible panels for curved surfaces. Ideal for RVs, campervans, motorhomes and boats. It works with MPPT chargers at 12V, 24V and 48V.
We bring the comfort of your home on the road.

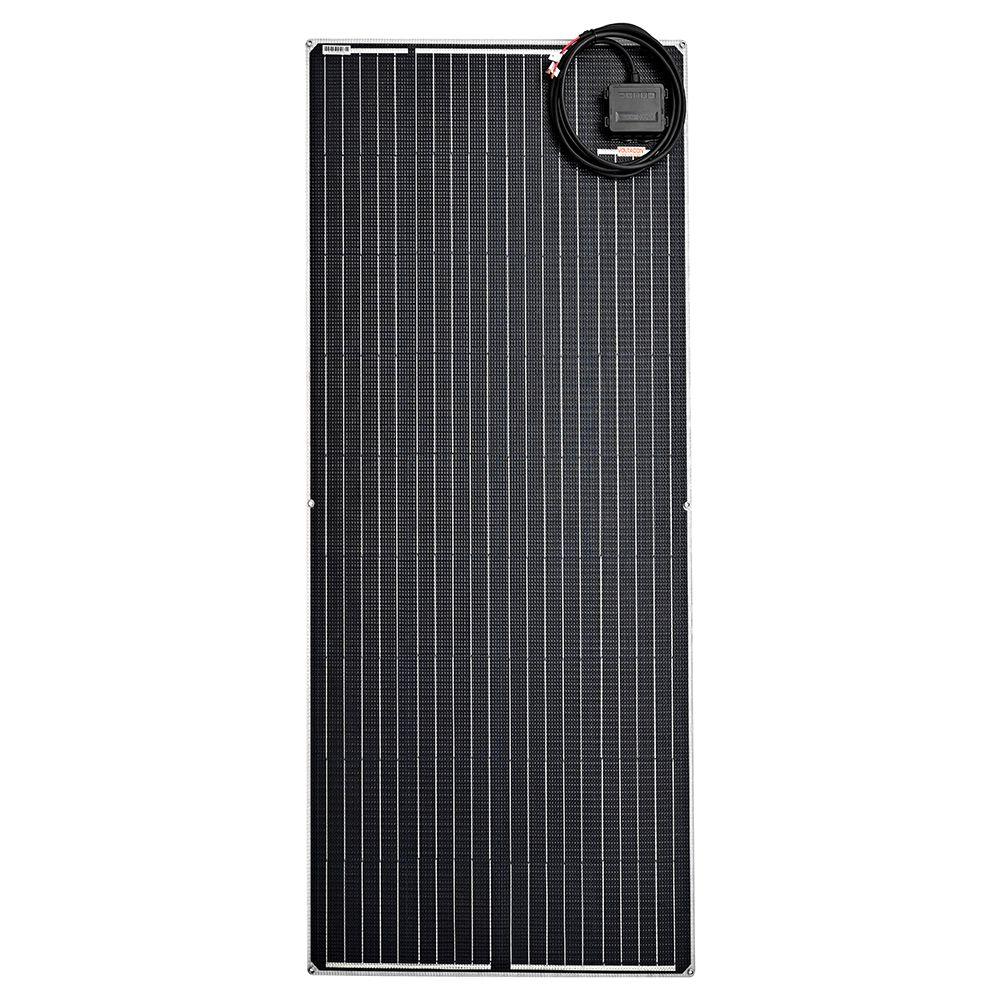

- Meet the Voltacon-Flex 195W Flexible Solar Panel - the pinnacle of cutting-edge technology and high energy yield. This ultra-lightweight panel can achieve up to an incredible 248-degree arc of flexibility thanks to advanced solar cell technology and lamination techniques.
- At 3kg, this panel weighs 70% less than its standard counterpart and is less than 5% thick. This makes it easy to transport, install, and affixed to uneven surfaces. It's precisely this kind of adaptability that makes the Volta Flex 195W Flexible Solar Panel the ideal choice for airstreams, campers, vans and boats or any surface where rigid panels can be installed
- Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor for guidance.
- ETFE (copolymer of Ethylene and TetraFluoroEthylene) coating has unique properties and outstanding mechanical toughness, it protects the solar cells from cracks and premature degradation, helps to absorb more solar light, it has self-cleaning properties.
The junction box is IP66-rated (waterproof) and pre-fitted with a twin-core double-insulated cable. The terminals are marked positive and negative for easy identification when the panels are connected to a battery charger.
ELECTRICAL CHARACTERISTICS
- Maximum power: 195Watt
- Open circuit voltage: 23.4V
- Voltage at Pmax (Vmp): 19.5V
- Short circuit current: 10.6A
- Current at Pmax(Imp): 10.0A
- Cell Efficiency: 22.42%
- System Max Voltage: 200Vdc
- Power Temperature Coefficient: -0.43%/oC
- Voltage Temperature Coefficient: -0.34%/oC
- Current Temperature Coefficient: 0.05%/oC
- Output Tolerance: +/- 3%
- Operating Temperature: -20 to 75oC
- 36 solar cells.
DIMENSIONS
Width: 680mm. Height: 1495mm. Thickness: 4mm
Extension solar cable: 3 meters
Product code: VS-FL-195-M36-ETFE
