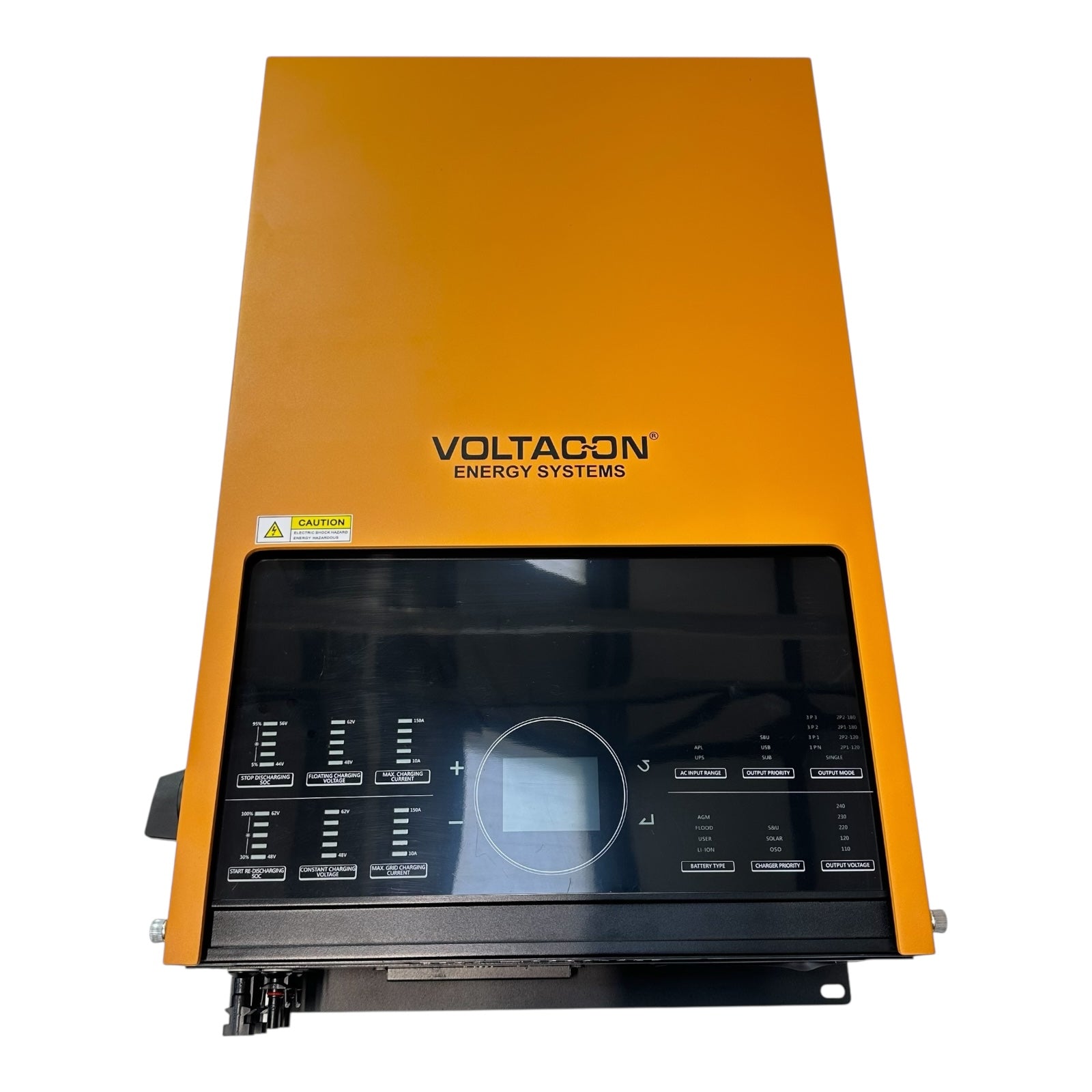

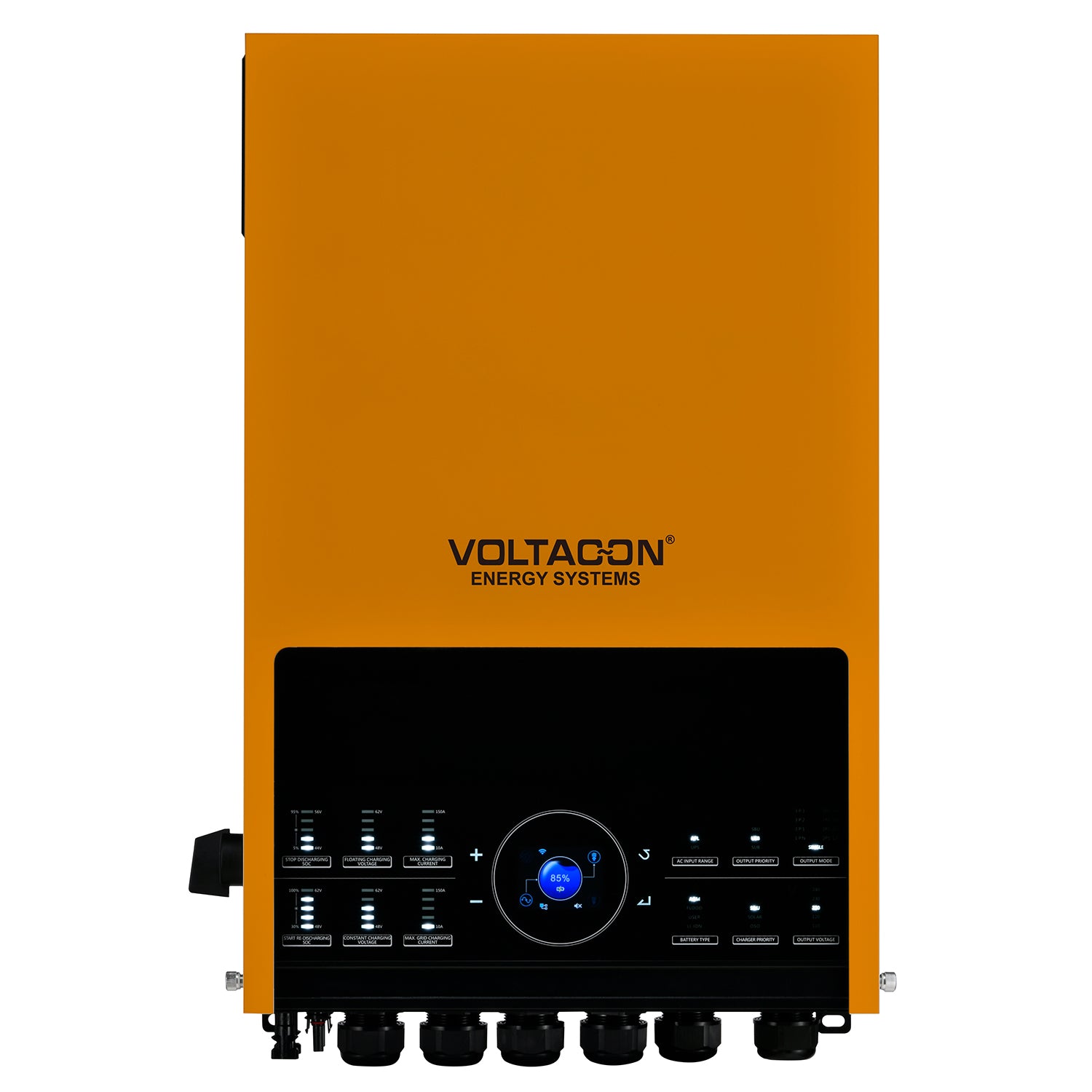

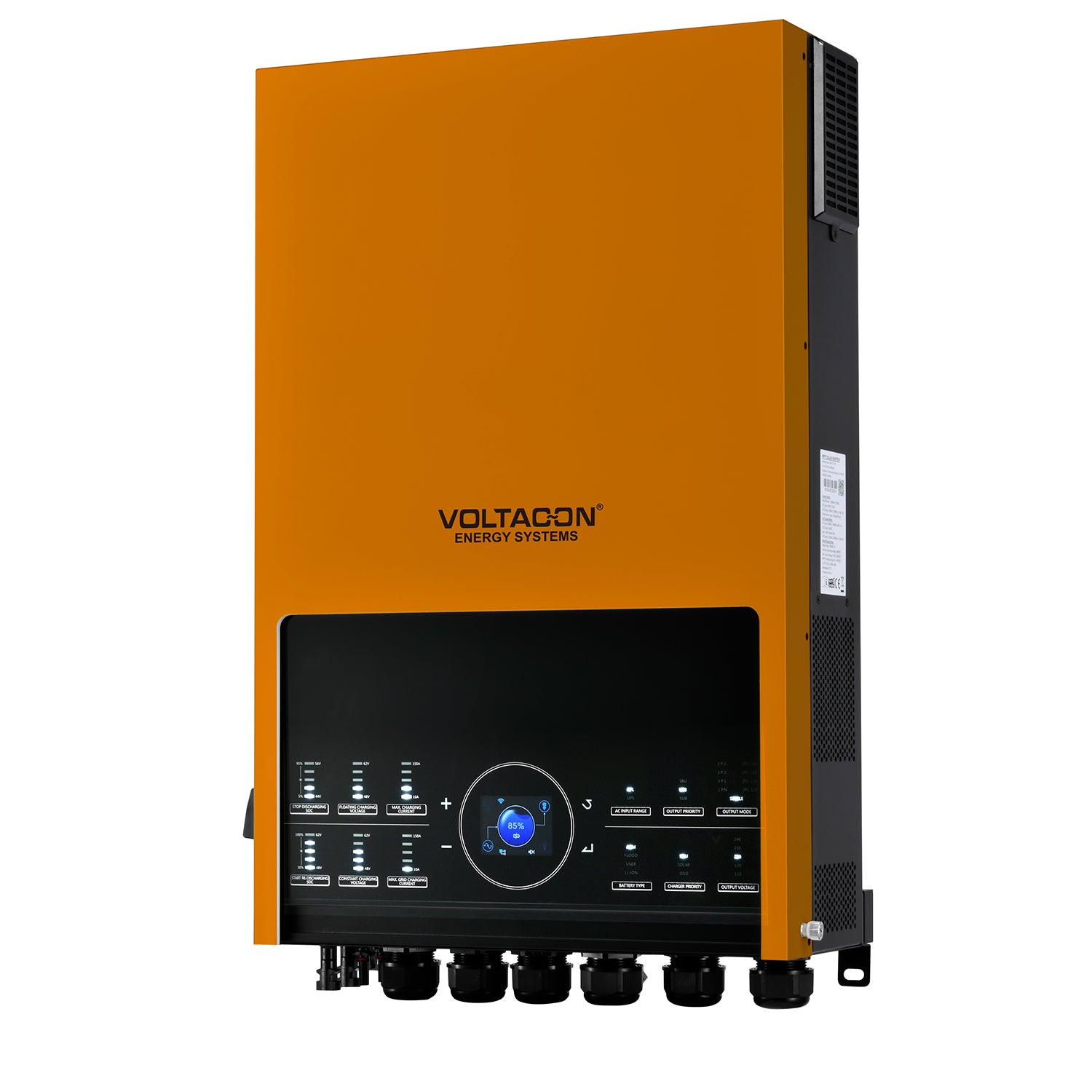

xConversol MAX-III 11kW Hybrid Off-Grid Inverter – Third Generation
The Conversol MAX-III 11kW is our most advanced third-generation hybrid inverter. Designed for off-grid and grid-support installations, it provides 230V pure sine wave output and supports up to 12000W of solar PV input. This high-performance system gives you flexible energy management with dual AC input and output, plus built-in breakers for fast, clean installations.
Effortless Operation

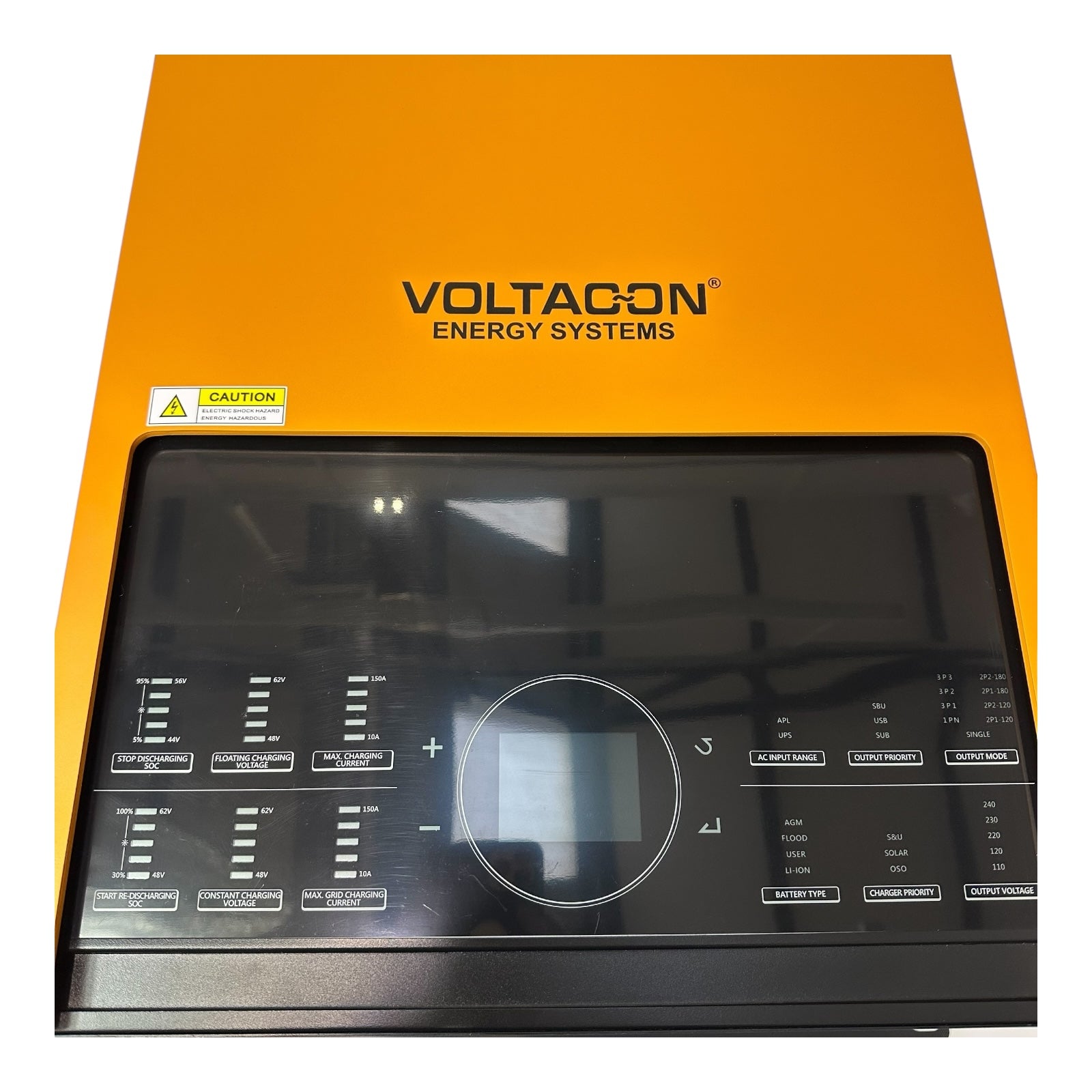

Forget complicated menus and hard-to-read codes. The MAX-III uses a simplified control interface with just 12 clear settings displayed on one screen. LED indicators provide instant system feedback—even before you press a button.
Faster, Safer Installation

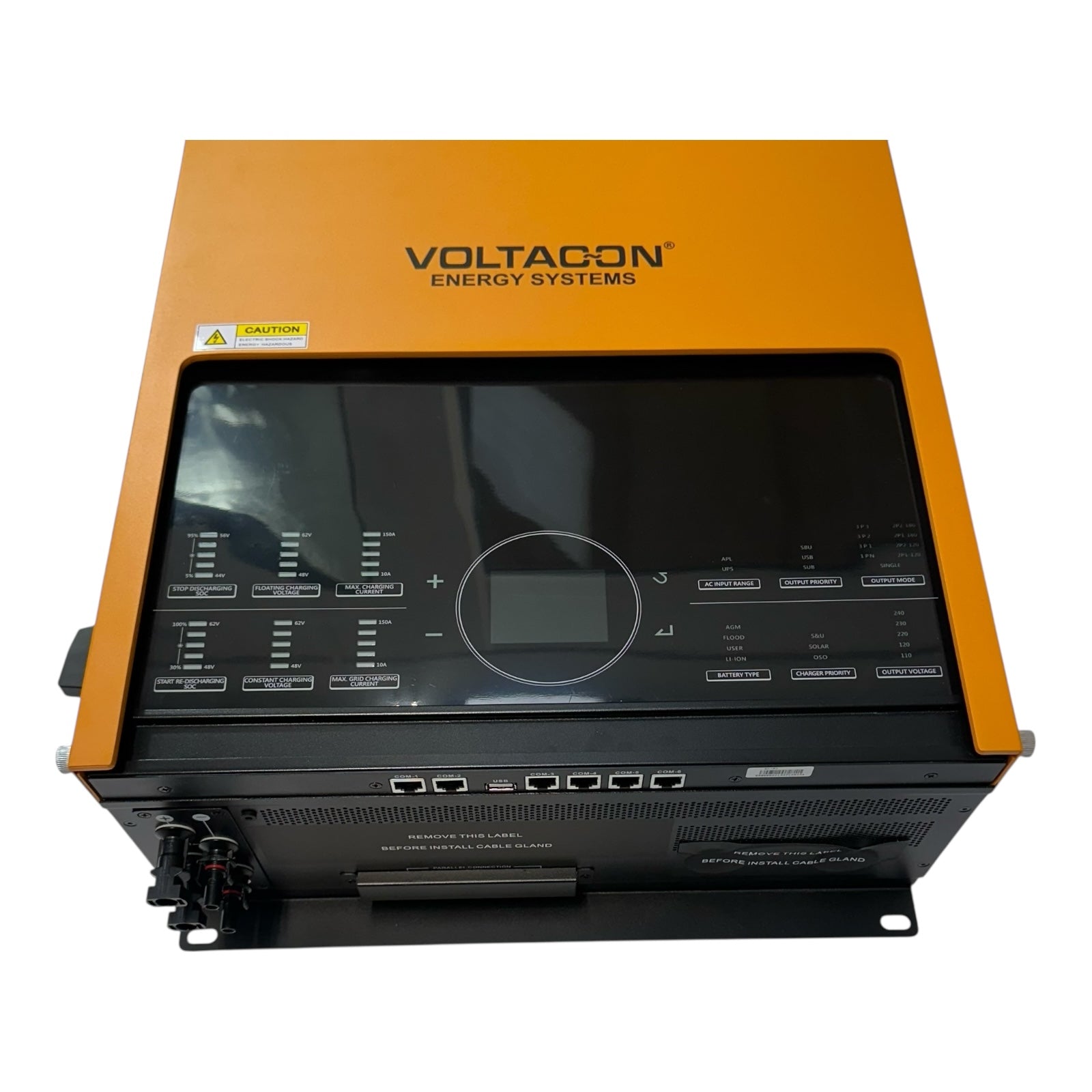

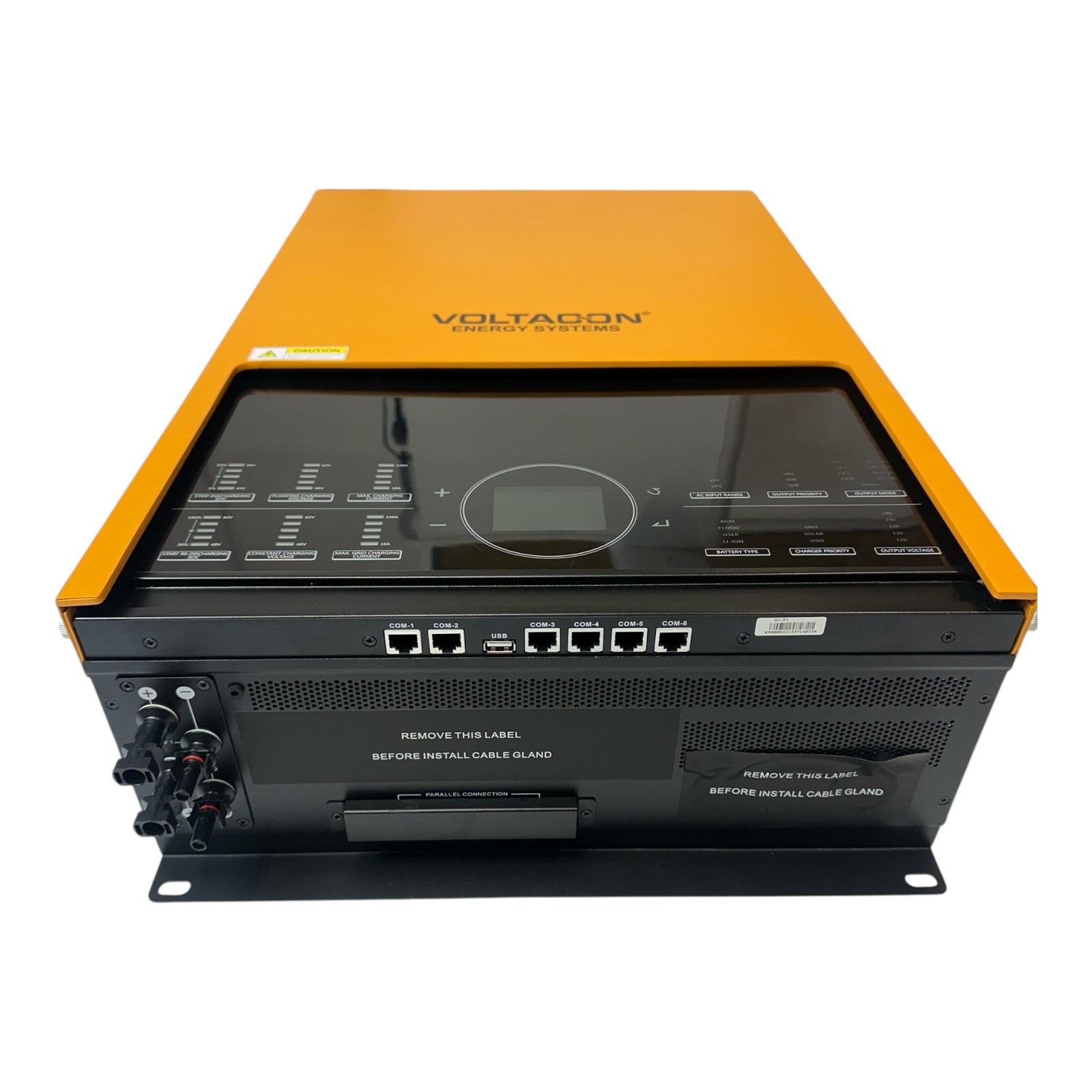

With its sliding front cover, accessing terminals is easy—no tools needed. The clean layout and clearly labelled connections speed up both installation and maintenance. A reinforced wall bracket keeps the unit secure in any location.
Smart Energy Management

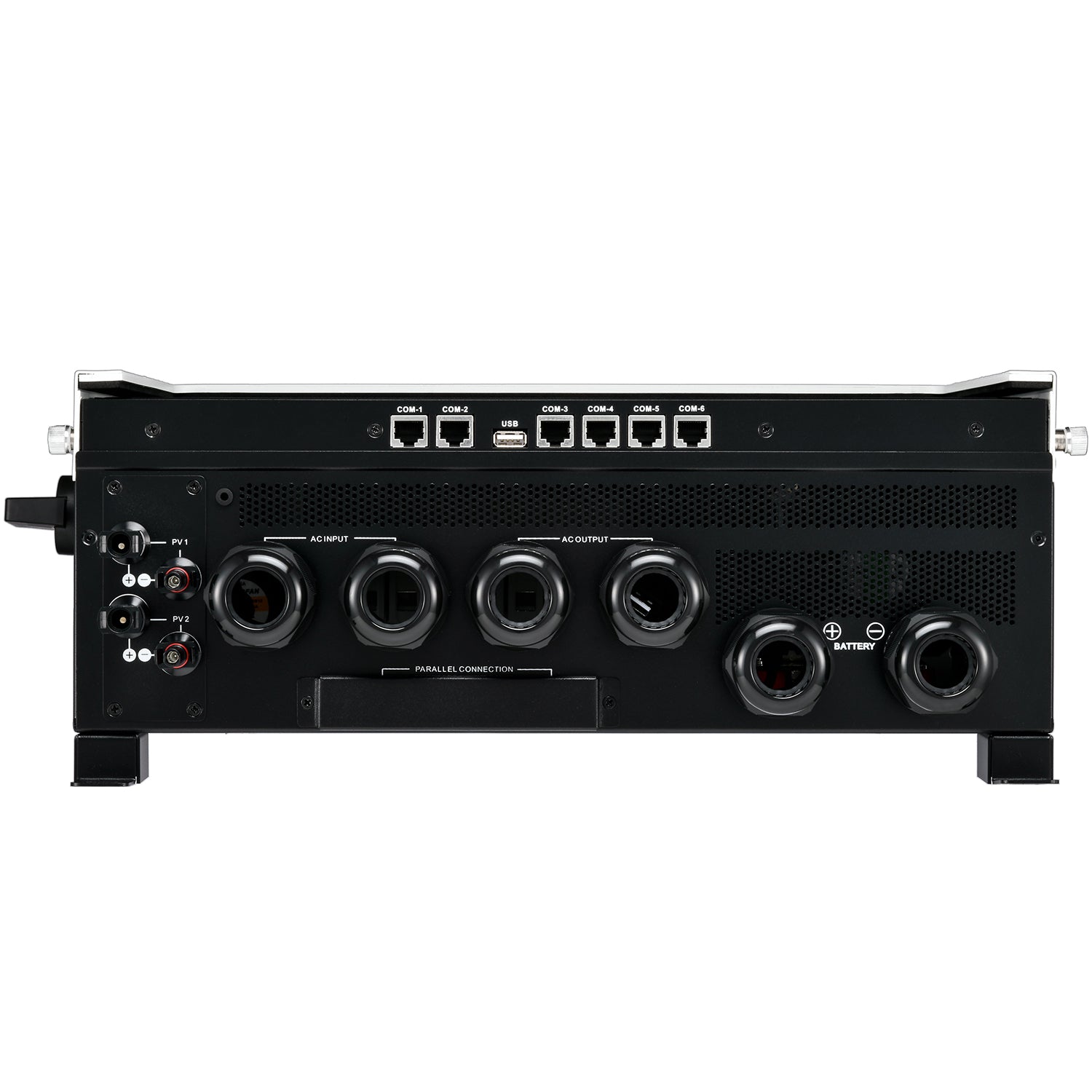

Dual AC input and output ports let you split loads or manage backup systems. The built-in CT sensor enables the inverter to prioritise solar self-consumption before using or exporting power to the grid. It also supports high-output applications without needing to upgrade the utility connection.
Built-In Safety Features

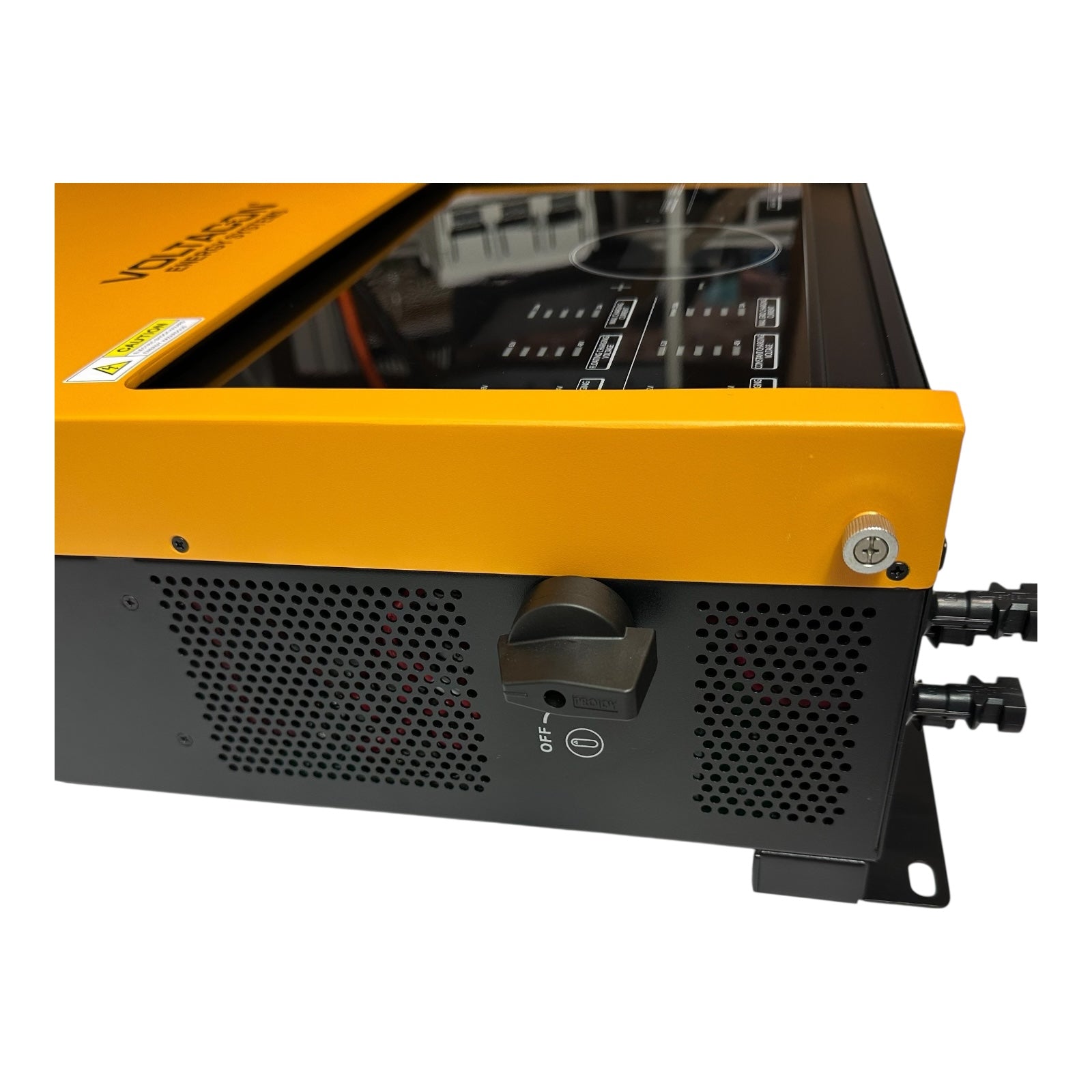

The Conversol MAX-III 11kW includes pre-installed AC and DC breakers and a PV disconnect switch for safer and tidier installs. It’s a plug-and-play solution designed to reduce inspection issues and simplify compliance.
Expandable for the Future
Need more power later? You can parallel up to 6 units for larger installations. A 2-year limited warranty provides long-term peace of mind.
Key Features
- User-friendly interface with LED status display
- Sliding front cover for fast terminal access
- Dual AC input/output for load separation and flexibility
- Grid-support mode for handling large loads without upgrades
- Built-in CT sensor for real-time consumption monitoring
- Integrated AC breaker, DC breaker, and PV DC switch
- Reinforced wall-mount bracket
- Supports up to 12000W solar input
- Parallel connection up to 6 inverters
- 2-Year Limited Warranty
The Conversol MAX-III 11kW is the smart choice for those who want powerful energy control with simplified setup and future scalability.
Specifications
xAxpert MAX III Off-Grid Inverter - 11KW / 11000W
Model Overview
- Rated Inverter Power: 11000VA / 11000W
- Parallel Capability: Yes, up to 6 units
Input
- Voltage: 230 VAC
- Selectable Voltage Range: 170–280 VAC (For Computers), 90–280 VAC (For Home Appliances)
- Frequency Range: 50 Hz / 60 Hz (Auto Sensing)
Output
- AC Voltage Regulation (Battery Mode): 230VAC ± 5%
- Surge Power: 22000VA
- Peak Efficiency: 93%
- Transfer Time: 10 ms (Personal Computers), 20 ms (Home Appliances)
- Waveform: Pure Sine Wave
- No Load Power Consumption: Less than 75W
Battery
- Battery Voltage: 48 VDC
- Floating Charge Voltage: 54 VDC
- Overcharge Protection: 66 VDC
Solar & AC Charger
- Solar Charger Type: MPPT
- Maximum PV Array Power: 12000W (6000W x 2)
- MPPT Operating Voltage Range: 90 – 450 VDC
- Max PV Array Open Circuit Voltage: 500 VDC
- Maximum PV Input Current: 27A x 2 (Max 40A)
- Maximum Solar Charge Current: 150A
- Maximum AC Charge Current: 150A
- Total Maximum Charge Current: 150A
Physical Specifications
- Dimensions (D x W x H): 176.3 x 432.4 x 687 mm
- Net Weight: 30 kg
- Communication Interfaces: USB / RS232 / RS485 / Wi-Fi / Dry-contact
Operating Environment
- Humidity: 5% to 95% Relative Humidity (Non-condensing)
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -15°C to 60°C
Compliance & Standards
- IEC 62109, IEC 61683, EN/IEC 61000-6-2
- 61000-6-4, 61000-3-11, 61000-3-12
