Description
xThe metallic enclosures are pre-assembled and installed with 30mA 63A RCD and an MCB. Cable glands included. Range for 1kW, 1.5kW 3kW, 5kW off-grid solar inverters.

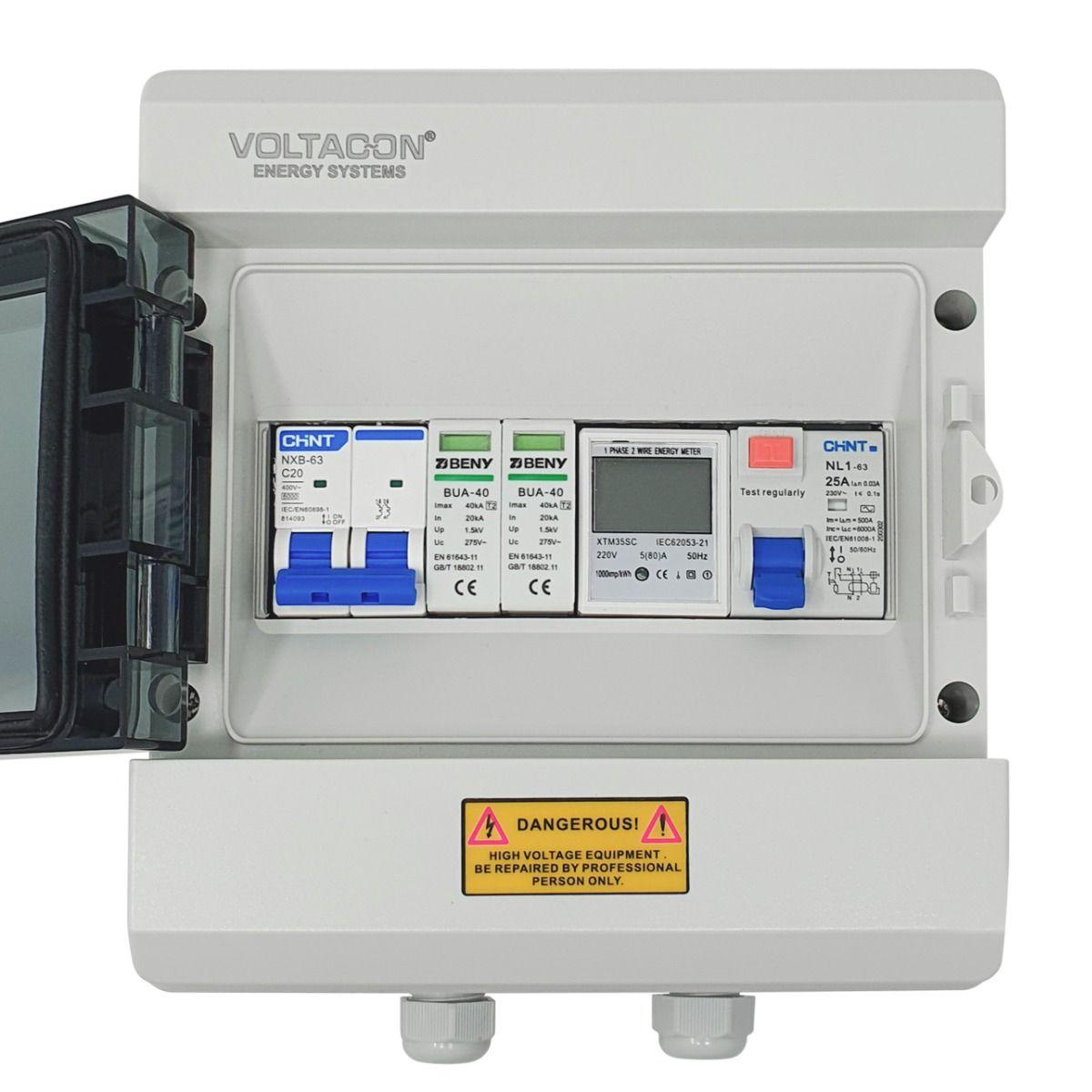

Voltacon AC Combiner box - Pre Wired with Surge Protection and Energy Meter
Every off-grid and grid-tie solar inverter that feeds energy to a commercial or residential building should be protected with a DC residual circuit (RCD) and a circuit breaker (MCB).
The Eastron meter measures the power, current, voltage, active and reactive power, frequency and many other parameters including the total harmonic distortion (THD). The pulsed output can be used for controlling other devices, monitoring data or controlling the power flow of hybrid inverters
A single phase meter SDM230-CT is pre installed and can be used to access instant data like power generation, annual production, total harmonic distortion. This is a modbus version with a pulsed output signal.
The consumer unit is pre-wired and tested, it works with hybrid and off-grid inverters, it is essential equipment that should be connected to any solar inverter at 5kW
| Configuration | BBWX-1 |
| Enclosure | BX-08, IP65, 20*19*12cm: 1pc |
| AC SPD | BUA-40/2P AC275V: 1pc |
| AC MCB | NXB-63/2P C20A CE: 1pc |
| AC RCCB | NL1-63/1P+N C25A 30mA CE: 1pc |
| Cable Gland | PG13.5, sealing range 6.7-12mm: 1pc |
