Description
xCharging Lithium Ion US5000 Batteries from Mains - Multiplus-II GX 5kW
Multifunction inverter Multiplus-II GX with AC charger for connection to existing Solar PV system with a feed-in tariff. Modular energy storage with US5000 Pylon Technologies, with 15 years of design life. Make your home "All Electric"
No Solar Panels? No Problem! The AC Charging System will energise your lithium-ion batteries using low-cost electricity from the mains. The stored energy will be used during the peak hours but that will cost you only 5-8pend per kWh.
The system is also certified for direct coupling to the mains even if your property is tied to a solar PV system with a feed in tariff
- There is no need to feed energy back to the grid.
- There is no need to apply for expensive feed-in tariff contracts with your energy provider.
- Complete freedom and peace of mind with an expandable system that will reduce your energy bills
- It works without solar panels but you can add photovoltaic modules at any time
What happens if you have already FIT and Solar Panels
That's fine ! The Multiplus-II GX AC Charger will be connected in parallel with an existing solar system. It will charge the batteries from the Feed In Tariff meter and the energy will be used when you really need it. The earnings from the FIT will not be affected.
To implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing. Maximum current: 50A resp. 100A. Length of connection cable: 1 m. The sensor is included in the package

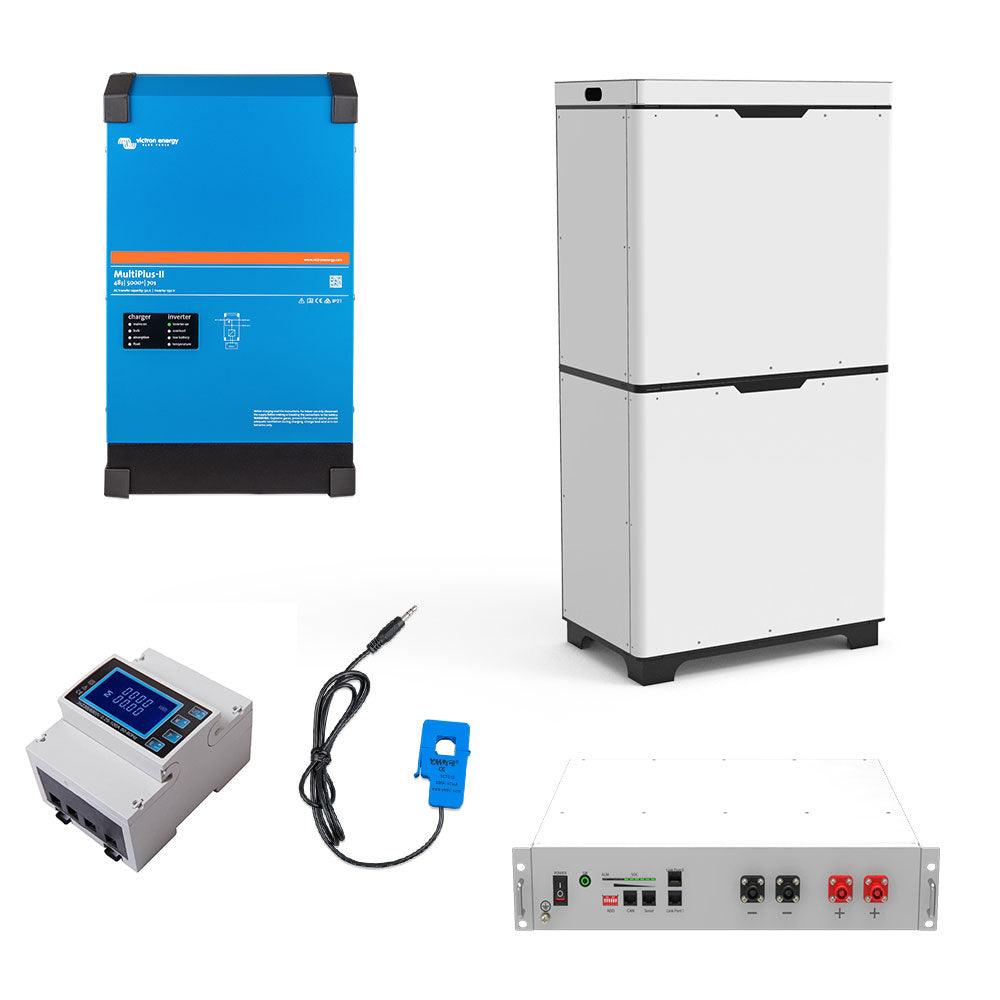

What is in the packages
- 5kW Multiplus-II Inverter GX with AC chargerLithium Ion Batteries
- Battery Cables and protection fuses 160A
- Battery DC disconnector 160A
- Single-phase digital energy meter
- Mounting brackets for batteries.
- Sensor Current transformer 100A: 50mA 5meter cable
- MK3-USB programming adaptor
- USB TO RS485 cable for connection between the energy meter and the GX communication port.
If a metallic cabinet is required please contact us and we ll offer you the right product. The current offer with batteries comes with mounting brackets only.
New Pylontech US5000 Lithium Battery
- Supplier Part No: US5000
- Weight: 39 kg
- Battery Type: Lithium Ion
- Nominal Energy: 4800 Wh
- Depth of discharge: 95.00 %
- Voltage: 48 V
- Continuous Discharge Rate (Normal Use): 2400 W
- Maximum Discharge Rate (5 Minutes): 4800 W
- Surge Discharge Rate (15 Seconds): 5808 W
- Maximum Charge Rate (5 Minutes): 4800 W
For a self-consumption system this is different, as there is always a grid present. With Grid assist functionality the grid can be used seamlessly, whenever there is a high peak load, meaning the inverter can be sized according to the base load.
Notice: If the Multiplus-II GX is not available a Cerbo-GX will be added to your order with Multiplus-II 5Kw
