Description

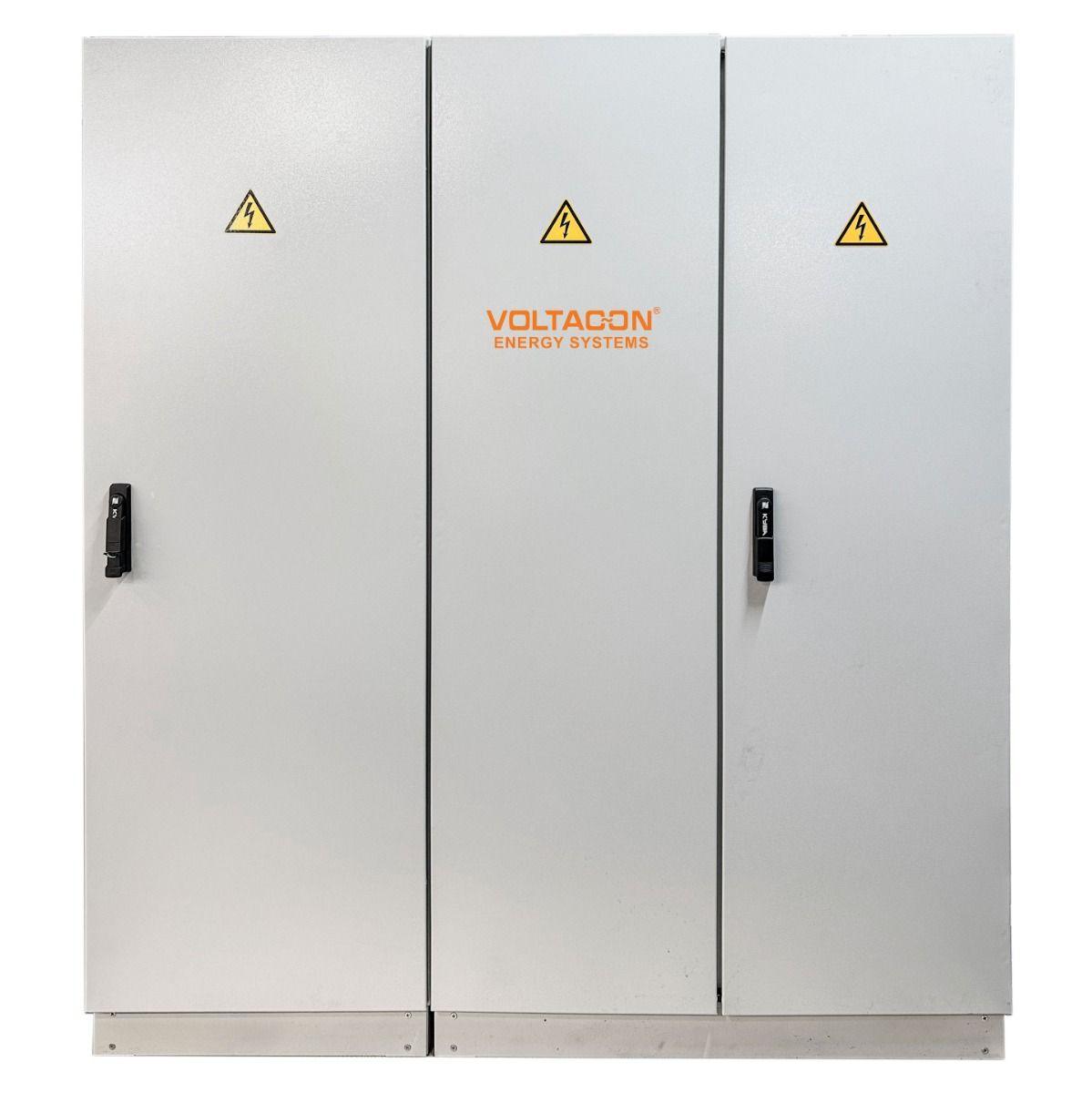

x33kW Silent Power Cabinet with Solar-Assistant, integral combiner boxes, smart-shunt resistors and full protection from AC and DC surges.
The most powerful unit ever built with single-phase inverter that can be configured in a 1-phase or 3-phase power system. The Silent-Power cabinet is integrated in an industrial floor-mounted metallic cabinet with bottom entry cables.
The unit is plug n' play with all the features tested and pre-installed. The new version is now equipped with Solar-Assistant, the advanced control and monitoring system that offers you remote access to your system without annual fees and subscriptions.
TECHNICAL PERFORMANCE - COMBINED ALL 3 INVERTERS
| Total AC output | 33kW |
| Total PV Input | 33kW |
| Number of Solar PV inputs | 6x Independent MPPT |
| Solar Charger | 450Amps |
| MPPT Voltage | 120-450VDC |
| Output Voltage | 240VAC/400VAC |
| Battery Compatible | Lithium,AGM, Lead Acid |
| Minimum Battery Ah | 600-800Ah |
| Transfer time from mains | 10ms |
| Battery Fuses | 200A per Inverter |
| Battery Voltage | 54-64VDC |
| Surge Protection DC | 550Vdc Type 2 |
| AC Surge Protection | 300VAC/440VAC |
Dimensions: Height 190cm x Width 160cm x Depth 35cm
SOLAR ASSISTANT READY - ONLINE MONITORING
Accuracy down to the second, the online data are displayed in your count in real-time without delay.
The software will keep historical data for more than 10 years, you will not be charged to keep your archive, the software is free of charge and supported by Voltacon. The microprocessor will feed the data to the 16GB memory card that is included with the hardware in the silent power cabinet.
Intuitive software, it easy to understand the fundamental performance of your system, it does not require special knowledge.

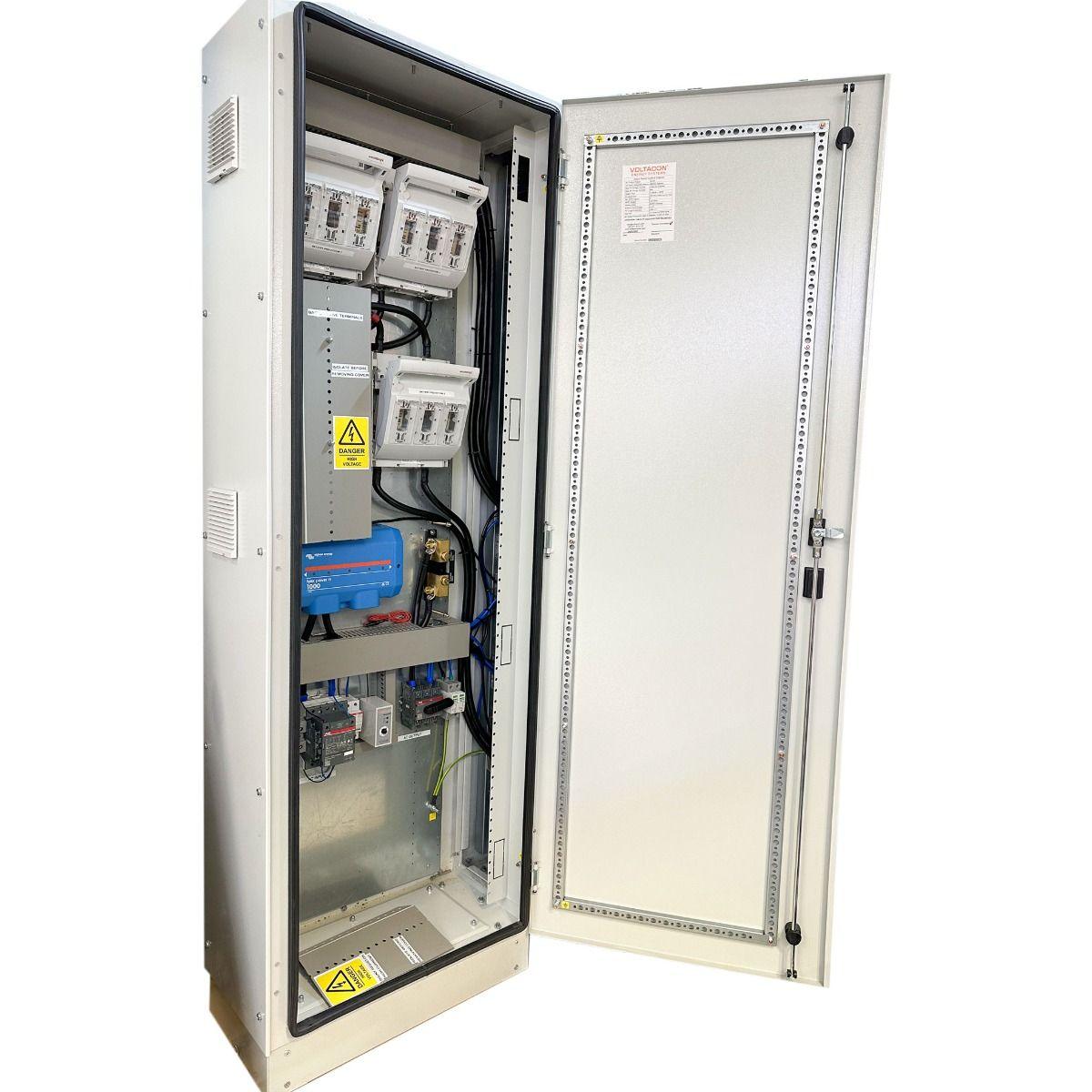

SMART SHUNT RESISTOR 1000A - VE DIRECT
The shunt resistor is an all-in-one system for battery monitoring, it measures the current circulation and the power generation, it also calculates the state of charge and number of cycles. Using the VE direct cable from Victron, the data of the smart shunt are logged into the Solar-Assistant.
