Description
xAs seen on our Youtube channel, the most common off-grid set up that also works with grid or generator backup. Even if your property is connected to the national grid, you can skip the complicated paperwork and licensing procedure and generate your electricity without feeding energy backwards.
What can you do with this solar kit ?
The equipment is choosen to power comfortably even large properties with a single phase supply, you can simultaneously feed your home appliances and charge your electric vehicle (EV). If you have a lost cost tariff, it is easy to set up the AC timer of the inverter to charge the batteries whenever your electricity cost is cheaper. You can charge from solar panels and the national grid simultaneously. If you live completely off the grid, then a diesel generator can be used as a backup.
Bespoke System ready for expansion
Pre-made solar photovoltaic kit, ready to be installed, designed for lithium-ion batteries, fully expandable with solar panels, inverter, and Pylontech US5000. AC Charge timer included with the inverter. The PV power is 8200W with the option to expand to 16000Watt.
We designed and packed an off-grid solution that will power domestic and commercial appliances with a total consumption of 8000 watts. The system is made to operate 24/7 (continuous operation) and can power most of the houses since the peak power of 2-4 bedroom properties is most likely well below 8kW.
The system is ready for expansion, up to 6 identical inverters can be paralleled in single-phase (240VAC) or three-phase (400VAC).
Our start-up package includes 2 lithium-ion batteries from Pylontech, with a total capacity of 9.6kWh and a depth of discharge of 95%. Additional batteries can be connected to the system to extend the autonomy of the household.
The solar panels will be mounted on a triangle structure with adjustable inclination. This is suitable for flat surface installations. If you have a tiled roof or other requirement please contact us to change the panel mounting kit at no extra cost.

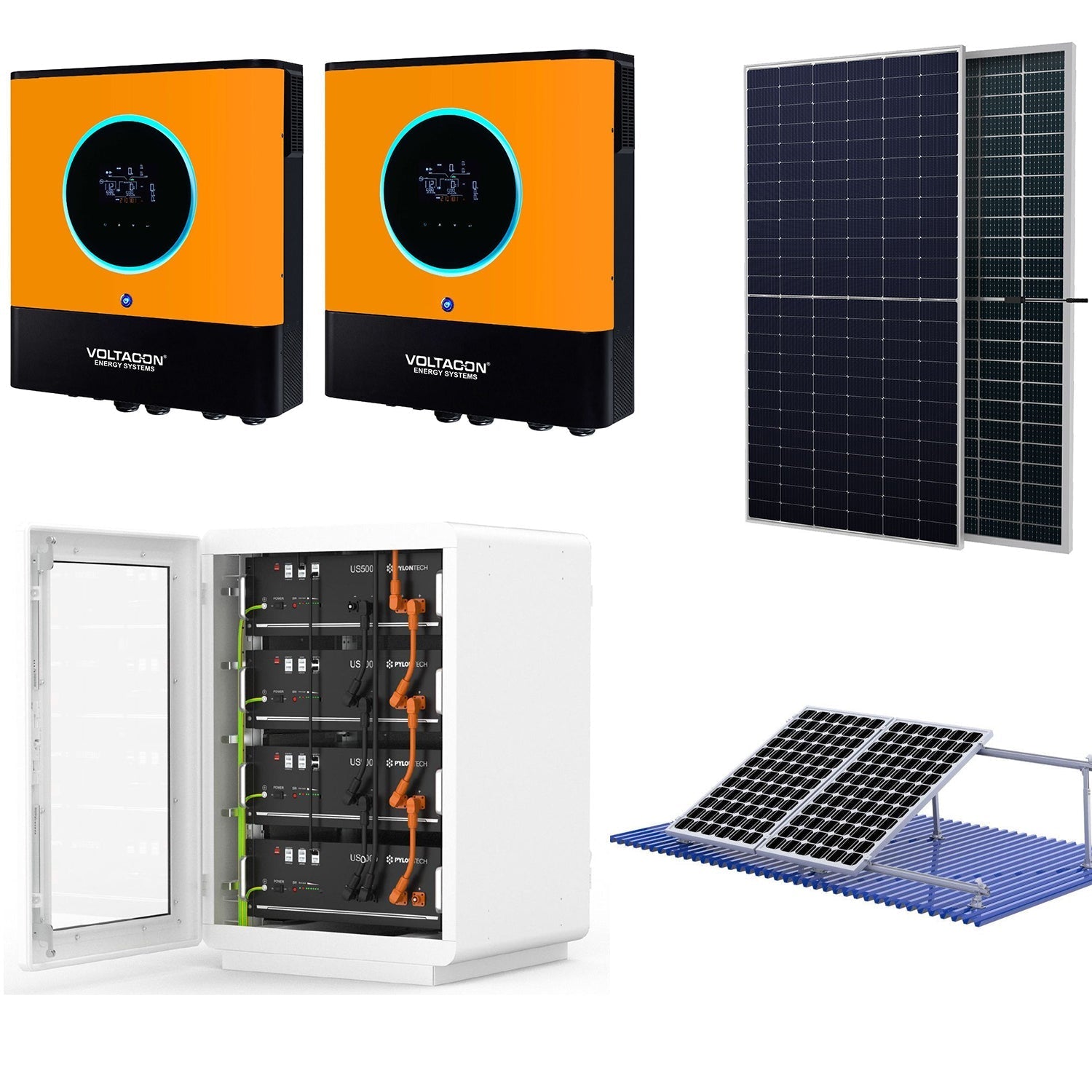

SOLAR KIT CONTENT - BILL OF MATERIAL
- 8kW Conversol MAX MPPT Charger and Inverter. Qty: 2
- US5000 Lithium battery 48V. Qty: 4
- Monocrystalline solar panels 425W. Qty: 8
- Black metal cabinet for indoor use. Qty:1
- Battery Disconnector 200A. Qty: 2
- Battery fuses. Qty:4
- 50 meter 6mm black
- 50 meter 6mm red
- AC Combiner box for paralleling 2 ac-outputs.
- BMS Communication cable. Qty:1
- Solar- Assistant Kit. Qty: 1
- 2 meters of battery power cable 70mm. Qty: 2
- Solar PV combiner box 4-ways in 4-ways out Qty: 1
- Lynx Distributor Qty: 1
WHAT IS A SOLAR ASSISTANT KIT
This is a modern, easy to understanding, software that monitors the performance and key parameters of your inverter and lithium-ion battery. The internal SD card stores data for nearly 10 years and there is no annual subscription to pay. We offer the hardware and software in the 8kW solar kit but there is no need for an extra payment.
