Description

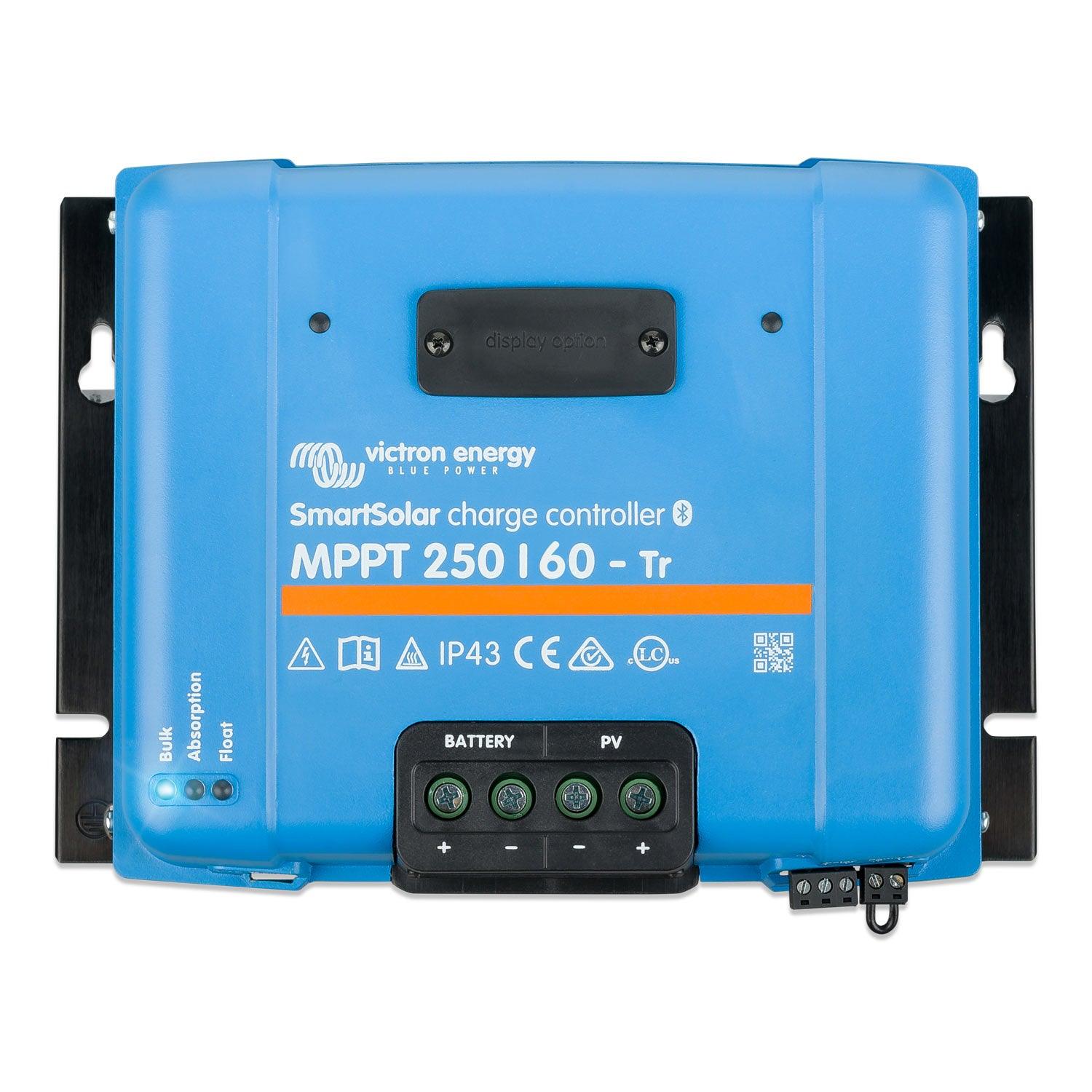

xVictron SmartSolar MPPT 250/60-Tr Solar Charge Controller
The Victron SmartSolar MPPT 250/60-Tr is a solar charge controller designed for professional off-grid and battery-based solar installations. It accepts a maximum PV open-circuit voltage of 250V and delivers up to 60A of charge current, making it suitable for larger panel arrays feeding 12V, 24V or 48V battery banks. Built-in Bluetooth allows direct configuration and monitoring without additional hardware.
Key Features
- Maximum PV input voltage of 250V open-circuit, with a 60A maximum charge current output.
- Compatible with 12V, 24V and 48V battery systems, with automatic voltage detection.
- Built-in Bluetooth for wireless configuration and monitoring via the VictronConnect app on iOS and Android.
- Tr (screw terminal) variant for secure, reliable wiring connections in permanent installations.
- Advanced MPPT algorithm tracks the maximum power point rapidly, including under variable or partial shading conditions.
- Integrated load output for direct connection of DC loads, with programmable control options.
- Supports multiple battery chemistries including flooded, AGM, gel and lithium (LiFePO4) with configurable charge profiles.
- VE.Direct port for integration with Victron GX devices, CCGX, Cerbo GX and compatible monitoring systems.
- Nighttime power consumption below 1W, reducing parasitic drain on the battery bank.
Product Overview
The 250/60-Tr sits in the upper-mid range of Victron's SmartSolar MPPT lineup. The 250V maximum PV voltage allows the use of longer string configurations or higher-voltage panels, which reduces cable losses and gives installers more flexibility when designing arrays. The 60A charge output is sufficient to serve battery banks across a wide range of system sizes, from small off-grid cabins up to larger residential or commercial off-grid installations on 48V systems.
The Tr designation refers to the screw terminal connection type, which is the standard choice for fixed installations where cables are terminated directly into the unit. The built-in Bluetooth removes the need for a separate Bluetooth dongle, allowing immediate access to configuration, live data and historical yield information through the VictronConnect app. For installations integrated into a Victron system, the VE.Direct port connects to GX devices for centralised monitoring and control via the Victron Remote Management (VRM) portal.
The MPPT algorithm continuously samples the PV array to find and track the true maximum power point. This is particularly relevant in installations where shading, temperature variation or mixed panel orientations affect array output. The controller also supports user-defined charge algorithms, making it adaptable to non-standard battery chemistries where the default profiles are not appropriate.
Technical Specifications
| Parameter | Value |
| SKU | SCC125060221 |
| Maximum PV Open-Circuit Voltage | 250V |
| Maximum Charge Current | 60A |
| Compatible Battery Voltages | 12V / 24V / 48V (auto-detect) |
| Connection Type | Screw terminals (Tr) |
| Connectivity | Bluetooth (built-in), VE.Direct |
| Weight | 3.2 kg |
| GTIN | 8719076050841 |
Applications
- Off-grid residential solar systems with 12V, 24V or 48V battery banks.
- Remote cabins, agricultural buildings and rural properties without grid connection.
- Marine and narrowboat installations requiring a high-voltage PV input with Bluetooth monitoring.
- Telecom and industrial off-grid power systems where VE.Direct integration is required.
- Hybrid systems using Victron Multiplus or Quattro inverter-chargers alongside a GX monitoring device.
- Motorhome and large vehicle conversions with substantial solar array capacity.
What Is Included
- Victron SmartSolar MPPT 250/60-Tr charge controller (1 unit)
Installation Notes
This controller handles PV voltages up to 250V, which is above the low-voltage threshold and requires careful attention to safe working practices. Installation should be carried out by a qualified electrician or accredited solar installer. Ensure PV string voltage does not exceed 250V under any conditions, including cold-temperature Voc calculations. The unit must be fused appropriately on both the PV and battery sides in accordance with the system design. For integration into a Victron GX-based system, a VE.Direct cable is required and sold separately. Battery chemistry and charge profile settings should be confirmed before commissioning.
Specifications
x-
The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
-
Fully automated operation and auto 12 / 24 / 36* / 48V selection
-
2 pairs of terminals (solar panel, battery) for wires up to 35mm2
-
Inbuilt bluetooth
-
Programmable relay: AC rating: 240VAC /4A , DC rating: 4A up to 35VDC, 1A up to 60VDC
-
Max solar panel voltage: 250V
-
Max solar panel power: 860W (12V) / 1720W (24V) / 2580W (36V) / 3440W (48V)
-
Temperature sensor for automatic compensation (-16mV / -32mV / -48mV / -64mV / °C)
-
Comprehensive electronic protection features
-
Communication port: RS232 / TTL for VE Direct accessories
-
Self-consumption: <35mA (12V) / <20mA (48V)
-
Working temperature: -30°C to +60°C
-
IEC/EN certified
-
Enclosure: IP43 (electronic components) / IP22 (connection area)
-
Pollution Degree rating: PD3
-
Dimensions: 185 x 250 x 95 mm
-
Weight: 3kg
-
4 x mounting holes (8mm diameter) for ease of installation
