Description

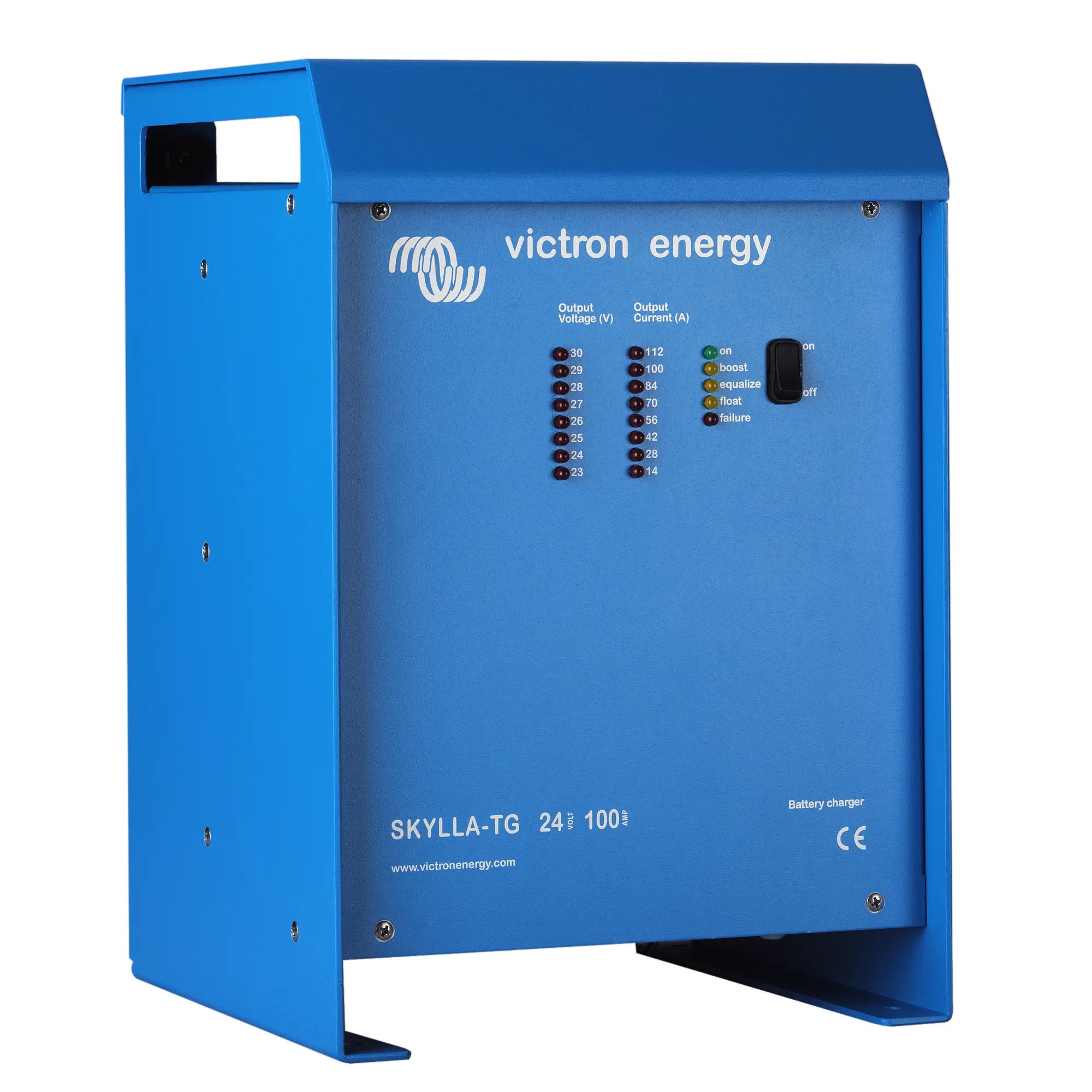

xVictron Skylla-TG 24/100 (1+1) 230V High Power Battery Charger
The Victron Skylla-TG 24/100 (1+1) is a high power, three-phase compatible battery charger designed for 24V battery systems requiring up to 100A of charge current. Built for professional and industrial applications, it suits marine, off-grid, and heavy-duty standby installations where reliable, high-current charging is essential.
Key Features
- 24V output with 100A charge current capacity, suitable for large battery banks in demanding installations.
- (1+1) configuration provides a dual output: one main charge output and one auxiliary output for independent battery banks.
- 230V AC single-phase input, compatible with standard European and UK mains supply.
- Adaptive charge algorithm automatically adjusts to battery condition, optimising charge cycle performance.
- Robust aluminium housing with a high ingress protection rating, suited to harsh or marine environments.
- Built-in battery temperature sensor input for temperature-compensated charging, protecting battery longevity.
- Compatible with Victron VE.Bus and monitoring systems for remote status visibility and control.
- Adjustable charge voltage and current settings to accommodate different battery chemistries and bank sizes.
Product Overview
The Skylla-TG range is Victron's high power transformer-based charger series, designed where reliability and output consistency under continuous load are priorities. The 24/100 (1+1) variant delivers 100A to the primary battery bank and provides a separate output for a secondary bank, making it well suited to dual-bank setups common in commercial marine vessels, large vehicles, and industrial standby systems.
The (1+1) topology means the two outputs are independently regulated. The main output handles bulk, absorption and float charging, while the auxiliary output maintains a secondary bank at float voltage. This avoids the need for a separate trickle charger and keeps both banks in good condition without manual intervention.
Victron's adaptive charging algorithm monitors battery behaviour over successive charge cycles and adjusts the absorption time accordingly. This is particularly useful in applications where discharge depth varies significantly between cycles. The charger also accepts an external battery temperature sensor, allowing the charge voltage to be corrected for ambient temperature, which is important in installations where the battery compartment experiences wide temperature swings.
Technical Specifications
| Parameter | Value |
| SKU | SDTG2401001 |
| Output Voltage | 24V |
| Output Current | 100A |
| Configuration | 1+1 (dual output) |
| AC Input Voltage | 230V AC |
| Weight | 9 kg |
| GTIN | 8719076025788 |
Applications
- Commercial and leisure marine vessels with dual battery bank requirements.
- Large off-grid systems requiring high-current 24V battery charging from shore power or generator.
- Industrial standby and UPS applications with 24V battery backup banks.
- Heavy vehicles, coaches and specialist transport with onboard 24V battery systems.
- Telecoms and remote infrastructure installations requiring reliable continuous charging.
What Is Included
- 1x Victron Skylla-TG 24/100 (1+1) 230V battery charger unit
Installation Notes
Installation should be carried out by a qualified electrician or marine electrical engineer familiar with high-current DC systems. The unit must be connected to a correctly rated AC supply with appropriate overcurrent protection. DC output cabling must be sized for 100A continuous current and kept as short as practicable to minimise voltage drop. For marine installations, compliance with applicable ISO and NMEA wiring standards is recommended. Ensure adequate ventilation around the unit during operation. If integrating with Victron VE.Bus or a GX monitoring device, refer to Victron's system design guidelines for correct configuration.
