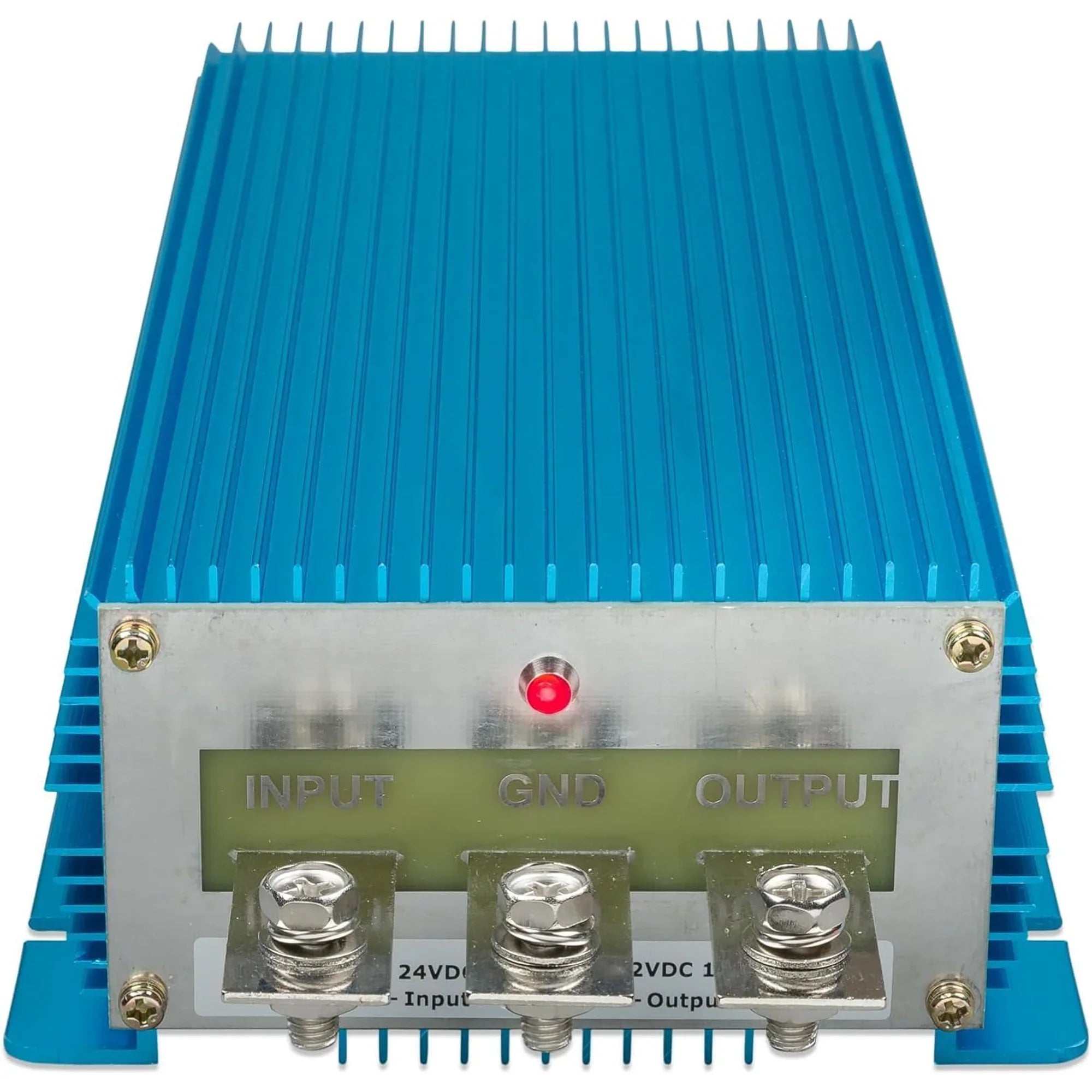

xVictron Orion IP67 24/12-100A (1200W) Non-Isolated DC-DC Converter
The Victron Orion IP67 24/12-100A is a non-isolated DC-DC converter rated at 1200W, designed to step down a 24V DC supply to a regulated 12V DC output at up to 100A. It is built for professional installations in vehicles, marine vessels, and off-grid systems where a weatherproof, high-current voltage converter is required.
Key Features
- 1200W continuous output power with a 24V input and 12V/100A output.
- IP67 rated enclosure: fully dust-tight and protected against temporary immersion in water, suitable for exposed or damp installation environments.
- Non-isolated design provides efficient power conversion without galvanic isolation between input and output.
- Wide input voltage range accommodates real-world 24V battery systems, including voltage fluctuations during charging and discharge.
- Output voltage is adjustable, allowing fine-tuning to suit specific load or battery requirements.
- Compact and robust aluminium housing with a weight of 2.23kg, suitable for fixed mounting in confined spaces.
- Protection against short circuit, over-temperature, and input under-voltage to safeguard connected equipment.
Product Overview
The Orion IP67 24/12-100A converts a 24V DC source to a stable 12V DC output, making it suitable for powering 12V accessories, charging 12V batteries, or supplying 12V loads from a 24V system. The non-isolated topology means the input and output share a common ground, which is standard practice in many vehicle and marine installations where a shared chassis ground is already present.
The IP67 rating is a practical advantage in installations where the converter cannot be housed in a fully protected enclosure. It can be mounted in engine bays, under vehicle floors, in bilge areas, or other locations subject to moisture, dust, and occasional water ingress. This removes the need for additional weatherproof enclosures in many installations, reducing both cost and complexity.
At 1200W continuous, this unit handles high-current 12V loads directly from a 24V bank. The adjustable output voltage allows the installer to set the output to match the requirements of the connected load or battery chemistry, within the converter's adjustment range. Built-in protections cover short circuit, over-temperature, and input under-voltage conditions, preventing damage to both the converter and downstream equipment.
Specifications
- SKU: ORI241221226
- Input voltage: 24V DC (nominal)
- Output voltage: 12V DC (adjustable)
- Output current: 100A
- Output power: 1200W
- Topology: Non-isolated
- IP rating: IP67
- Weight: 2.23kg
- GTIN: 8719076048541
Applications
- Powering 12V accessories and loads from a 24V vehicle or truck electrical system.
- Charging a 12V battery bank from a 24V house battery system in marine or motorhome installations.
- Off-grid cabins or mobile setups where a 24V primary system needs to supply 12V equipment.
- Agricultural and construction vehicles with 24V systems requiring a 12V auxiliary supply.
- Marine installations in exposed locations where IP67 protection is required without additional enclosures.
What Is Included
- 1x Victron Orion IP67 24/12-100A (1200W) DC-DC Converter
Installation Notes
This converter should be installed by a qualified electrician or auto-electrical professional familiar with high-current DC systems. At 100A output, appropriate cable sizing, fusing, and terminal torque are critical to safe operation. The non-isolated design means input and output share a common ground; verify this is compatible with your system before installation. While the IP67 rating provides protection against water ingress, the unit should not be permanently submerged. Ensure adequate ventilation around the unit to allow heat dissipation under full load.
