Description

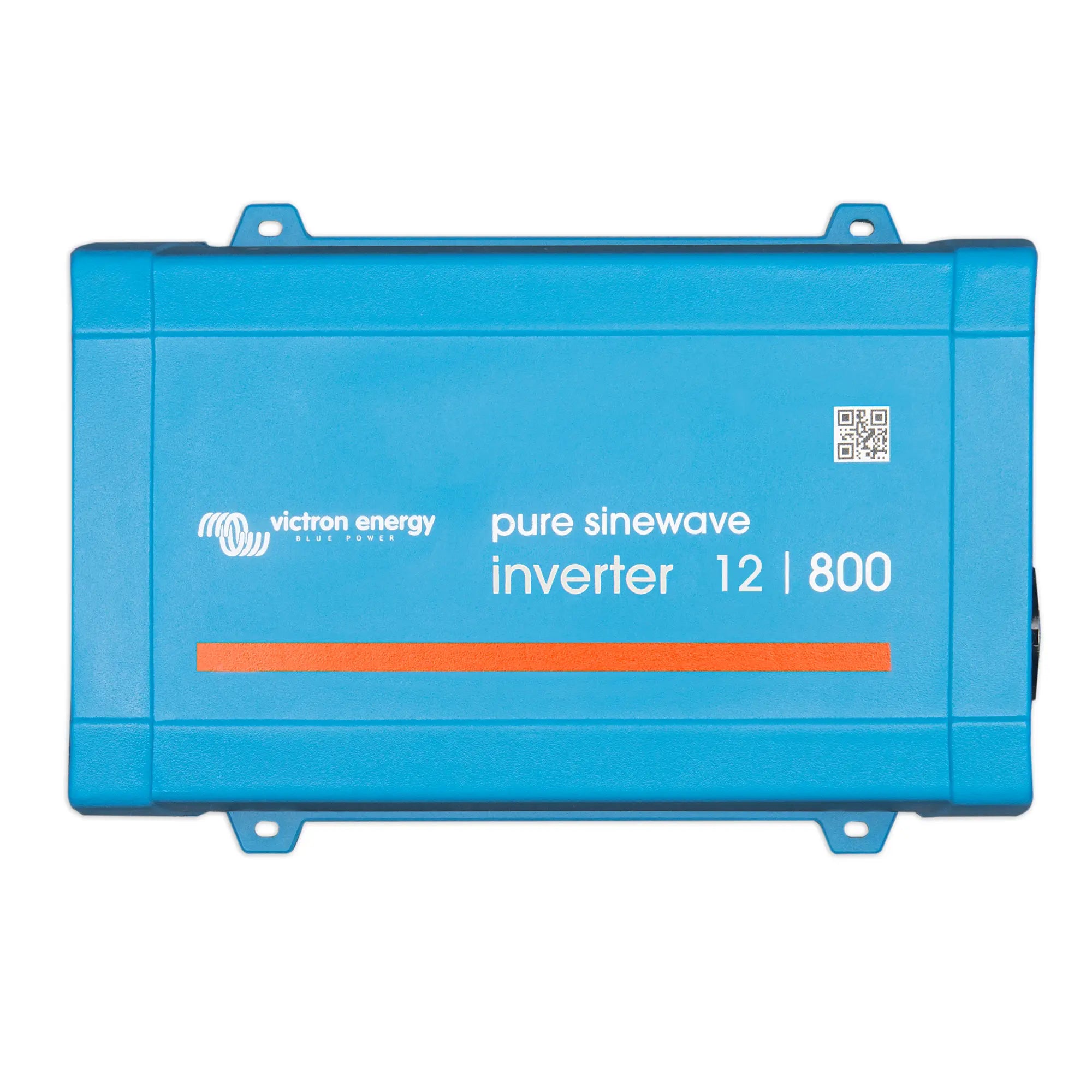

xVictron Inverter 12/800 230V VE.Direct SCHUKO
The Victron Inverter 12/800 is a 12V DC to 230V AC pure sine wave inverter rated at 800VA, designed for off-grid, mobile and backup power applications. It connects directly to a 12V battery bank and delivers a clean 230V AC output via a SCHUKO socket. The VE.Direct port allows monitoring and configuration through Victron's GX devices and VictronConnect app.
Key Features
- 800VA continuous output from a 12V DC input, suitable for a wide range of AC loads.
- Pure sine wave output compatible with sensitive electronics, motors and appliances.
- SCHUKO socket output provides a standard European 230V AC connection point.
- VE.Direct communication port enables monitoring via VictronConnect app and integration with Victron GX devices.
- Built-in protections include low battery voltage shutdown, over-temperature and overload protection.
- Compact and lightweight form factor suited to vehicle, marine and small off-grid installations.
Product Overview
The Inverter 12/800 sits within Victron's VE.Direct inverter range, which is designed for straightforward DC-to-AC conversion without the complexity of a combined charger or MPPT. At 800VA from a 12V battery, it covers loads such as power tools, small appliances, lighting circuits and electronic equipment in vans, boats, cabins and backup setups. The pure sine wave output means it is not restricted to resistive loads and will run inductive loads such as motors and compressors without issue.
The VE.Direct port is a key practical feature for professional installations. It allows the inverter to be connected to a Victron Cerbo GX or other GX device, making it visible within a wider energy management system. Installers can also use the VictronConnect app over a VE.Direct to USB interface for local configuration and diagnostics without needing a full GX setup. This makes commissioning and fault-finding straightforward on site.
Protection thresholds are managed automatically. The inverter will shut down before the battery is damaged by excessive discharge, and will protect itself against overload and over-temperature conditions. These protections are particularly important in unattended installations where manual intervention is not always possible.
Technical Specifications
| Parameter | Value |
| SKU | PIN121801200 |
| DC Input Voltage | 12V |
| AC Output Voltage | 230V AC |
| Continuous Output Power | 800VA |
| Output Waveform | Pure sine wave |
| AC Output Socket | SCHUKO |
| Communication | VE.Direct |
| Weight | 6 kg |
| GTIN | 8719076045373 |
Applications
- Campervan and motorhome 12V leisure battery systems requiring 230V AC output.
- Marine installations where a SCHUKO 230V outlet is needed from a 12V house bank.
- Off-grid cabins and small remote power systems with 12V battery storage.
- Backup power for small AC loads during grid outages, connected to a 12V battery.
- Portable power setups on site or in the field where a mains socket is required.
What Is Included
- Victron Inverter 12/800 230V VE.Direct SCHUKO unit
Installation Notes
This inverter must be connected to a 12V DC battery system using appropriately rated DC cabling and fusing. DC wiring for inverters carries high currents and must be sized and protected correctly to avoid fire risk. Installation should be carried out by a qualified electrician or competent person familiar with DC power systems. The SCHUKO output is not suitable for direct connection to a UK BS1363 socket without an appropriate adaptor. This inverter is not grid-tied and does not require G98 or G99 notification. For integration with a Victron GX device or VictronConnect monitoring, a VE.Direct cable or VE.Direct to USB interface is required and sold separately.
