x16kW Off-Grid Solar Control Cabinet – Single Phase, Plug and Play, 4 MPPT

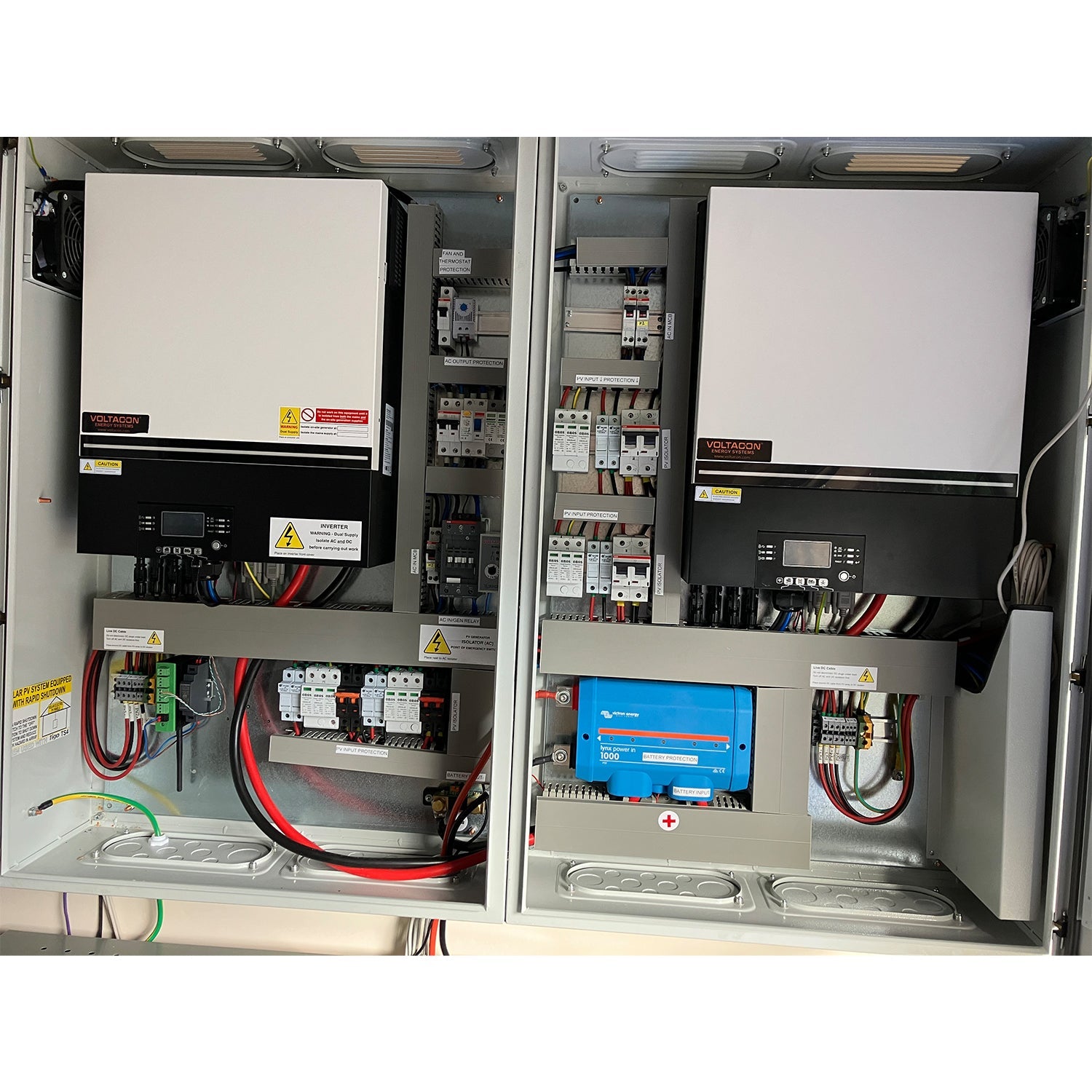

The Voltacon 16kW off-grid solar control cabinet is a complete single phase energy system built around two parallel Conversol MAX 8kW inverter-chargers with four independent MPPT controllers. Fully wired and tested in the UK before dispatch, it is designed for fast on-site commissioning on domestic and commercial off-grid and backup power installations. Solar Assistant monitoring with Orange Pi is included and pre-configured.
Key Features
- 16kW single phase off-grid output via 2x Conversol MAX 8kW in parallel
- 4 independent MPPT solar charge controllers, up to 16,000W total PV input
- MPPT 150A solar charger
- 1000A copper busbar DC distribution (Victron Lynx Distributor with 200A fuses)
- Victron SmartShunt 1000A with Bluetooth connectivity
- 70mm² heavy duty battery cabling
- Double-insulated solar cabling with fused terminals
- AC circuit breaker and RCD
- AC output terminals for grid and external generator
- Generator soft start and AC output breaker
- DC disconnectors for solar panels and batteries
- Solar Assistant controller (Orange Pi 3 LTS) with free licence, pre-configured
- Remote monitoring via Wi-Fi, no annual fees
- USB to RS232 communication cables for inverters and Pylontech batteries
- Fully wired and tested in the UK before dispatch
Product Overview
The cabinet integrates all critical off-grid power components into a single professionally assembled enclosure, reducing on-site installation time and eliminating the complexity of building a system from individual components. The four independent MPPT controllers allow multiple solar array strings to be managed separately, improving yield and providing redundancy.
The Victron SmartShunt 1000A provides accurate battery state of charge monitoring via Bluetooth, accessible from any Android device without additional hardware. The Solar Assistant controller monitors inverter performance in real time and provides remote access via Wi-Fi at no ongoing cost.
What Is Included
- 2x Conversol MAX 8kW inverter-chargers in parallel configuration
- 4x independent MPPT solar charge controllers
- Victron Lynx Distributor with 200A fuses (1000A busbar)
- Victron SmartShunt 1000A with Bluetooth
- Solar Assistant controller (Orange Pi 3 LTS), pre-configured with free licence
- AC circuit breaker, RCD, and generator output breaker with soft start
- DC disconnectors for PV and battery
- 70mm² battery cables
- Double-insulated solar cabling with fused terminals
- USB to RS232 cables for inverters and Pylontech batteries
- VE.Direct cable for SmartShunt monitoring
Cabinet Dimensions
140cm wide x 120cm high x 25cm deep (model SP-1648-EM)
Applications
- Domestic and commercial off-grid solar power systems
- High demand single phase backup power installations
- Remote properties and rural sites without grid connection
- Generator backup with automatic transfer and soft start
Installation and Safety Notes
This cabinet must be installed by a qualified electrician experienced in off-grid and battery storage systems. Battery connections, DC fusing, AC supply, earthing, and ventilation must comply with IET Wiring Regulations and the manufacturer's installation guidelines. Do not attempt DIY installation of high-current DC or inverter systems.
Specifications
x| Parameter | Value |
| Model | Conversol MAX 8kW (x2, parallel) |
| Total Rated Output Power | 16000VA / 16000W |
| Input Voltage | 120 VAC or 230 VAC |
| Selectable Voltage Range | 170–280 VAC (computers) / 90–280 VAC (appliances) |
| Frequency Range | 50 Hz / 60 Hz (auto-sensing) |
| Output Waveform | Pure sine wave |
| Surge Power | 15000 VA per inverter |
| Peak Efficiency | 90–93% |
| Transfer Time | 10ms (computers) / 20ms (appliances) |
| MPPT Controllers | 4 independent MPPT |
| Maximum PV Input Power | 16000W total |
| DC Distribution | 1000A copper busbar (Victron Lynx Distributor) |
| Battery Cabling | 70mm² |
| Battery Monitor | Victron SmartShunt 1000A with Bluetooth |
| Monitoring | Solar Assistant (Orange Pi 3 LTS), Wi-Fi, free licence |
| Cabinet Dimensions | 140cm W x 120cm H x 25cm D |
