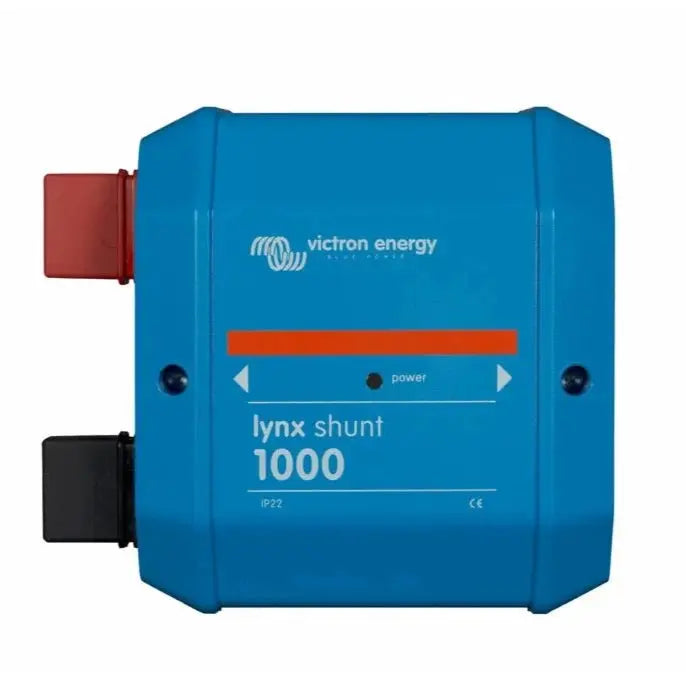

xLynx Shunt VE.Can (M8) – Precise Battery Monitoring for DC Systems
The Lynx Shunt VE.Can (M8) is an integral part of Victron Energy's advanced Lynx distribution system, designed to streamline DC connections, battery monitoring, and fusing for both small and large battery systems. This shunt is equipped with M8 connections and works seamlessly with a GX device to provide accurate and real-time battery information, helping to ensure your system operates efficiently and safely.
Key Features of the Lynx Shunt VE.Can (M8)
- Comes with an integrated positive and negative busbar for effective current flow management.
- Features a battery monitor and space for a main system fuse, providing protection against potential overloads and faults.
- Supports VE.Can communication for simple integration with a GX device, enabling you to monitor battery performance via the VRM portal or a compatible display.
- Equipped with two RJ45 VE.Can terminators, ensuring a reliable connection to your battery system.
Efficient Battery Monitoring and Protection
The Lynx Shunt VE.Can (M8) not only monitors your battery’s health but also tracks charge and discharge levels with precision. It is designed to handle a continuous current rating of up to 1000 Amps, making it suitable for a wide range of off-grid and on-grid power systems. For improved system flexibility, the M8 model is equipped with support for CNN fuses, which can be purchased separately based on system requirements.
Seamless Integration into Lynx Distribution Systems
The Lynx Shunt VE.Can is part of the modular Lynx Distribution System, which also includes the Lynx Power In and Lynx Distributor modules. These components work together to form a comprehensive DC distribution system, simplifying the connection of batteries, inverters, and other equipment.
Technical Specifications
| Specification | Lynx Shunt VE.Can (M8) |
|---|---|
| Supply Voltage Range | 9 - 70 V DC |
| Supported System Voltages | 12, 24, or 48 V |
| Current Rating | 1000 A continuous |
| Power Consumption | 60 mA @ 12 V, 33 mA @ 24 V, 20 mA @ 48 V |
| Busbar Material | Tinned copper |
| Busbar Dimensions | 8 x 30 mm |
| Enclosure Dimensions | 190 x 180 x 80 mm |
| Enclosure Material | ABS |
| Operating Temperature Range | -40°C to +60°C |
| Humidity | Max. 95% (non-condensing) |
| Protection Class | IP22 |
Looking for More Power? Check Out the New Lynx Shunt VE.Can (M10)
We are excited to introduce the new Lynx Shunt VE.Can (M10), model LYN040102110, which brings significant improvements over the previous M8 version.
As part of our commitment to enhancing the Lynx product range, this upgrade features M10 connections, offering a stronger and more durable connection compared to the M8 standard.
Additionally, this version includes a small busbar, ideal for systems requiring a higher-rated fuse than the standard 325A CNN fuse. This allows for the main fuse to be located externally, providing greater flexibility for larger systems. The Lynx Shunt M10 now supports external fuses, including CNN fuses from 35A to 800A, as well as ANL fuses.
