Description

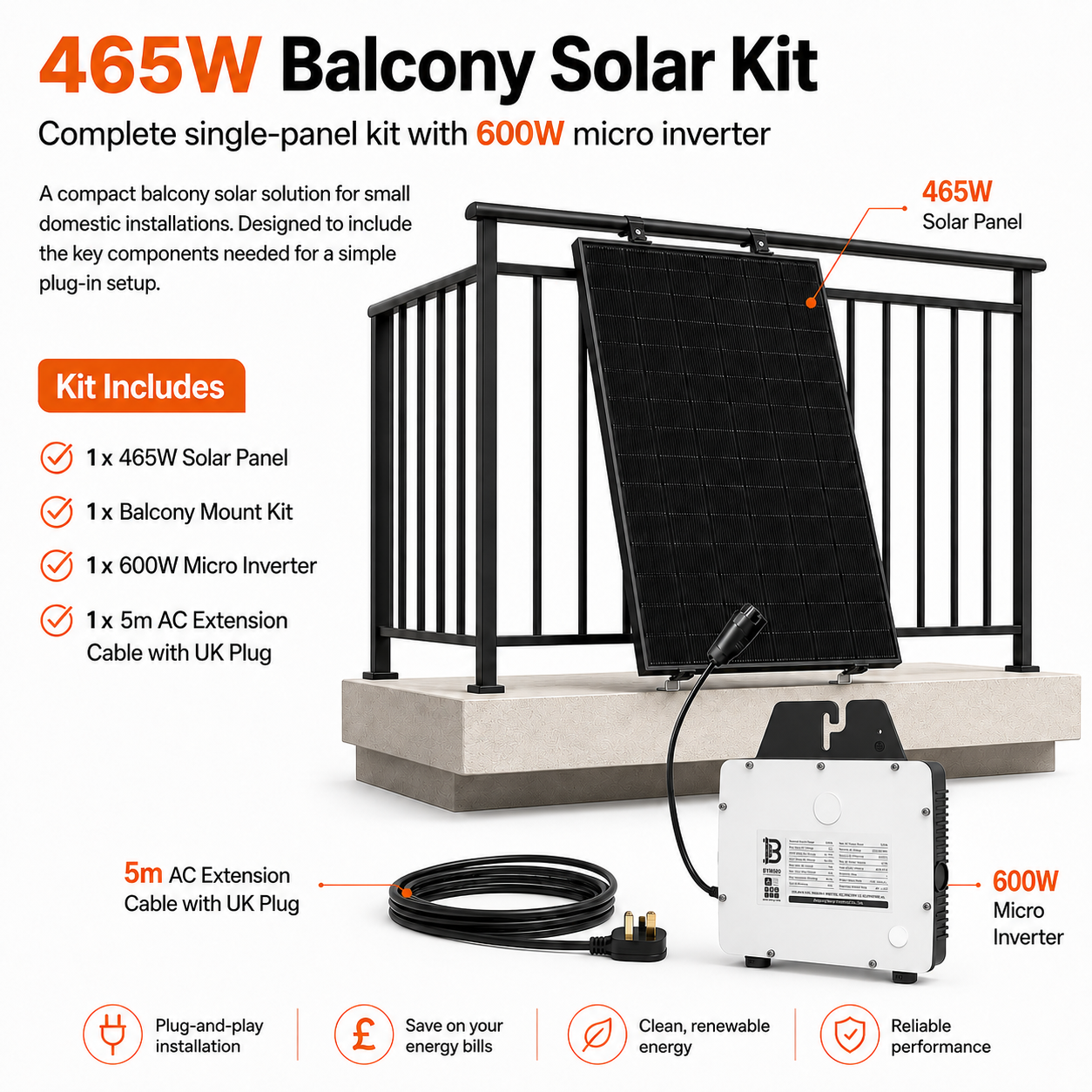

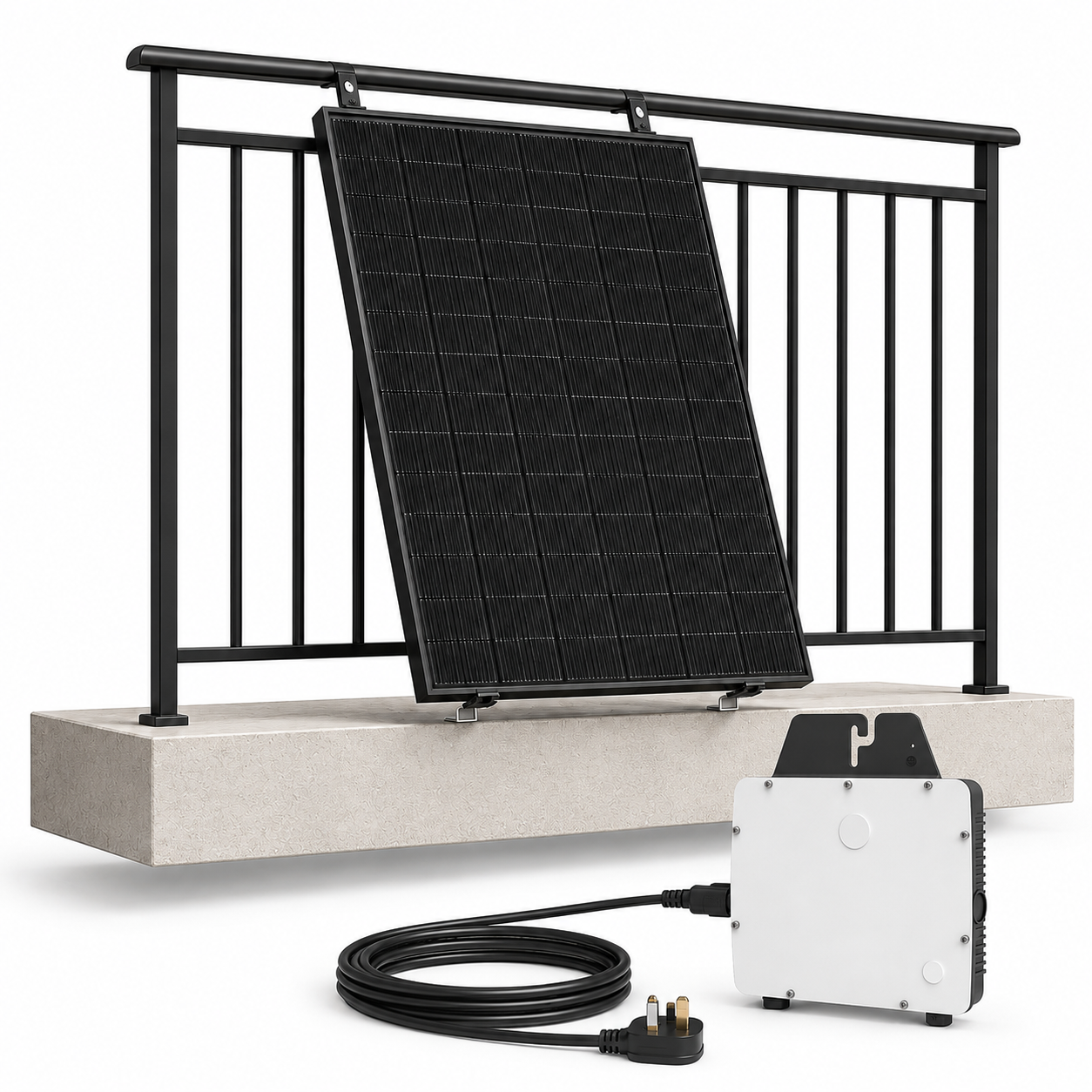

xJA Solar 465W Balcony Solar Kit with 600W Micro Inverter & Mounting
Compliant with EU standards - Plug and Play Schuko 230V
Create your own compact solar power system for a balcony, garden, patio, terrace, garage or outbuilding with this complete JA Solar 465W plug-in solar kit. The package combines a premium JA Solar 465W full-black N-Type solar panel with a compact 600W micro inverter, mounting kit and AC connection cable, providing a simple solution for generating renewable electricity at home.
No prior permission is required - Up to 800W Solar is permitted without notifying your electricity supplier
Complete 465W Solar Kit
- 1 x JA Solar 465W full-black solar panel
- 1 x 600W micro inverter
- 1 x solar panel mounting kit
- 1 x AC connection cable
- Panel-to-inverter connection components included
JA Solar 465W Full-Black Panel
The JA Solar 465W panel combines high power output with a modern full-black appearance, making it particularly suitable for residential installations where both performance and appearance matter. The panel uses advanced N-Type solar cell technology and is suitable for balconies, patios, gardens, terraces, garages and small ground-mounted installations.

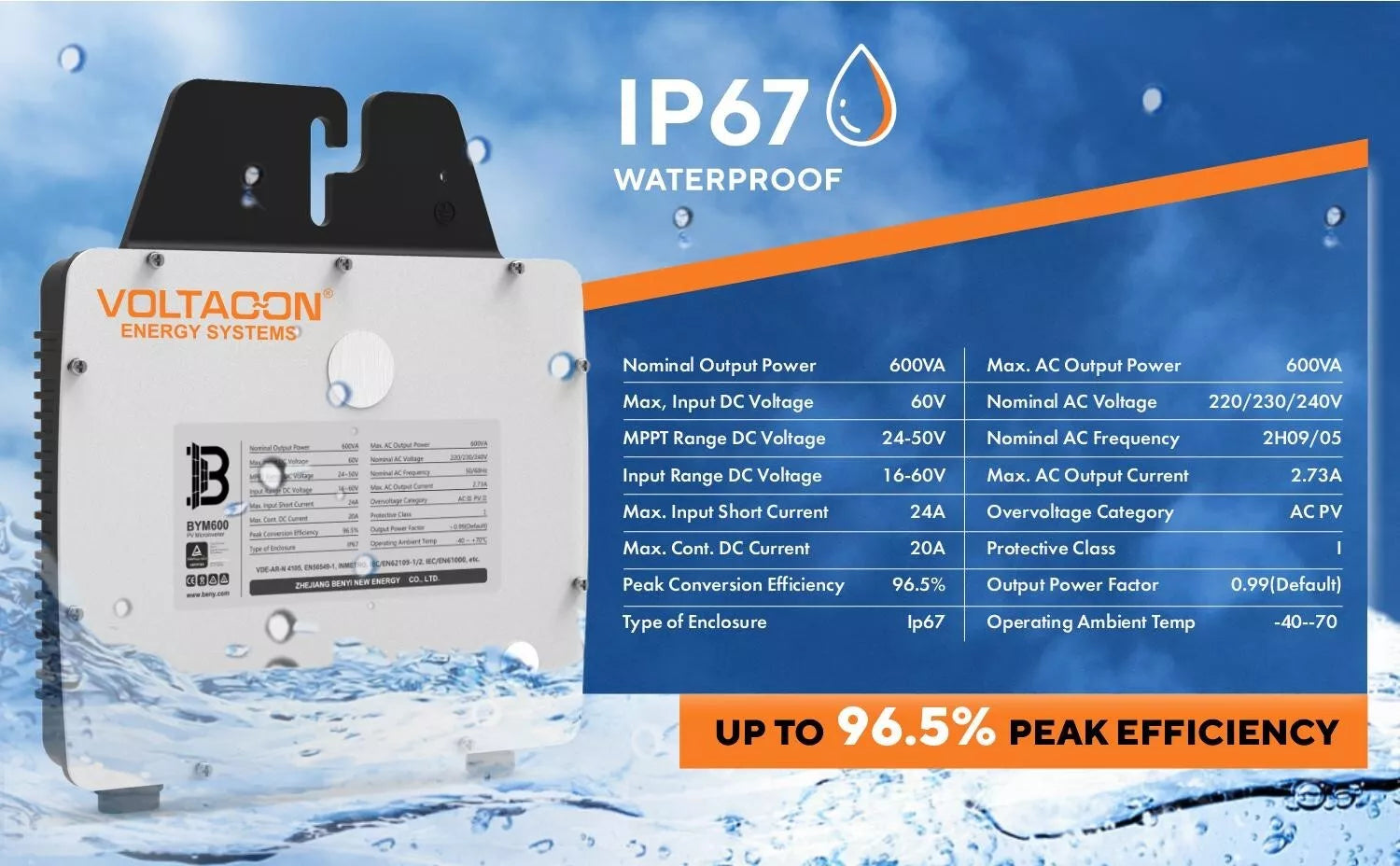

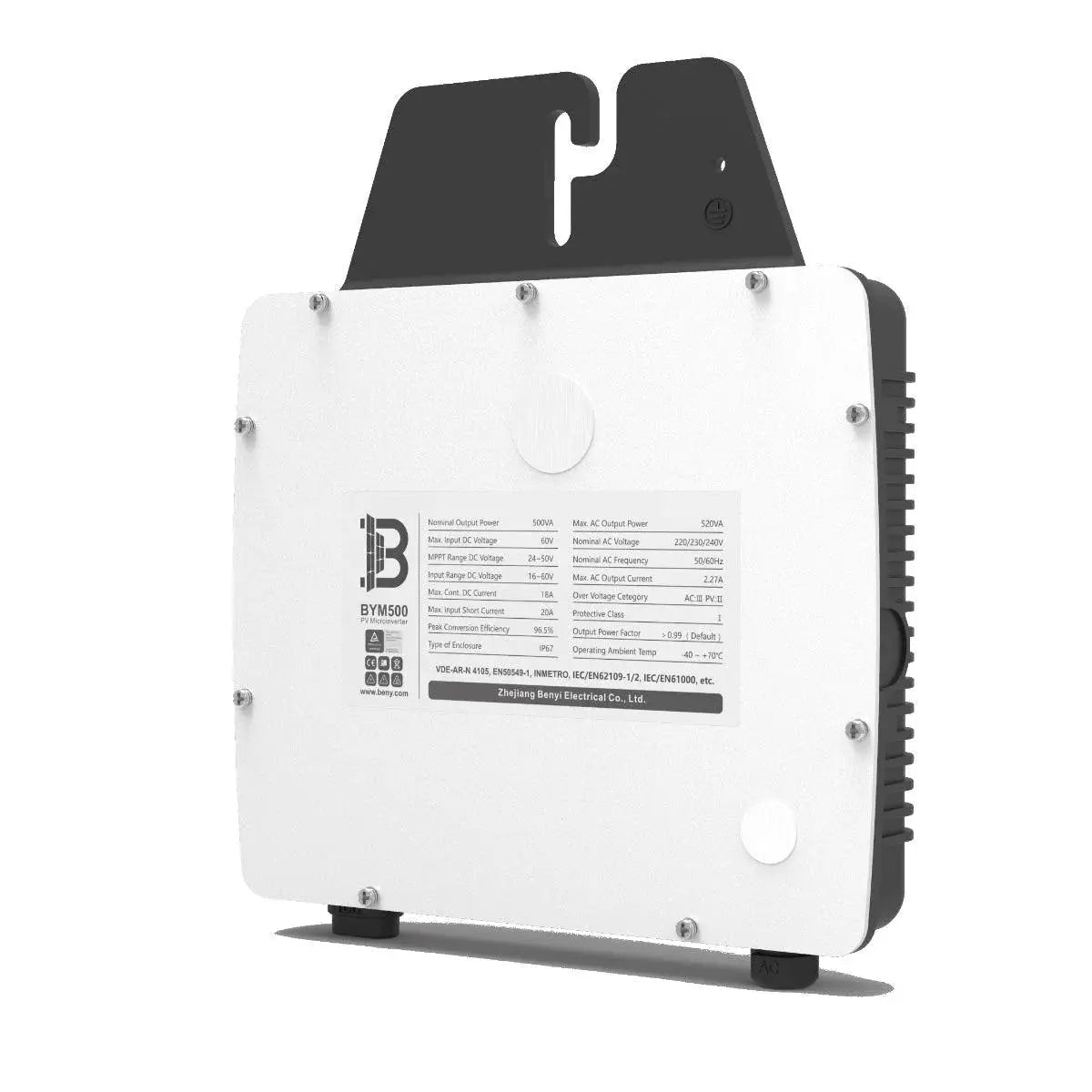

600W Micro Inverter
The micro inverter converts the DC electricity generated by the solar panel into 230V AC electricity for use within the property. Micro inverter technology provides panel-level power conversion and eliminates the need for a conventional high-voltage DC string inverter, making it particularly suitable for small residential solar systems.
Suitable Applications
- Balcony solar systems
- Garden and patio installations
- Terraces
- Garages and workshops
- Garden offices and outbuildings
- Small residential solar installations
Easy to Expand
This single-panel system is an excellent starting point for customers wanting to generate their own solar electricity without installing a large rooftop PV system. Different mounting arrangements may be available for balconies, walls, gardens and flat roofs. Please contact us before ordering if you require an alternative mounting solution.
Important
Grid connection and plug-in solar regulations vary between EU countries. Customers must check the electrical, grid-connection, notification and installation requirements applicable in their country before connecting the system.
Specifications
x| Parameter | Value |
| Model | VMI600 |
| Recommended Input Power | 400–670W (single); 2x 300–450W (parallel input) |
| MPPT Voltage Range | 24–50 V |
| Operating Voltage Range | 16–60 V |
| Maximum Input Voltage | 60 V |
| Max Short Circuit Current | 20 A |
| Max Input Current | 18 A |
| Rated Output Power | 600 W |
| Maximum Output Power | 620 VA (Vac >=230V, Vmp >=36V) |
| Rated AC Voltage / Range | 230 V / 176–265 V |
| Rated Frequency / Range | 50 Hz / 60 Hz (46.5–62 Hz) |
| Max Output Current | 2.73 A |
| Power Factor | >0.99 |
| THD | <3% |
| Peak Efficiency | 96.5% |
| European Efficiency | 96% |
| MPPT Efficiency | >99.8% |
| Night Power Consumption | <100 mW |
| Ingress Protection | IP67 |
| Operating Temperature | -40°C to +70°C |
| Transformer Design | High frequency, electrically isolated |
| Dimensions (L x W x H) | 210 x 230 x 34 mm |
| Weight | 2.39 kg |
| Warranty | 10 years standard; 25 years optional extended |
