Description

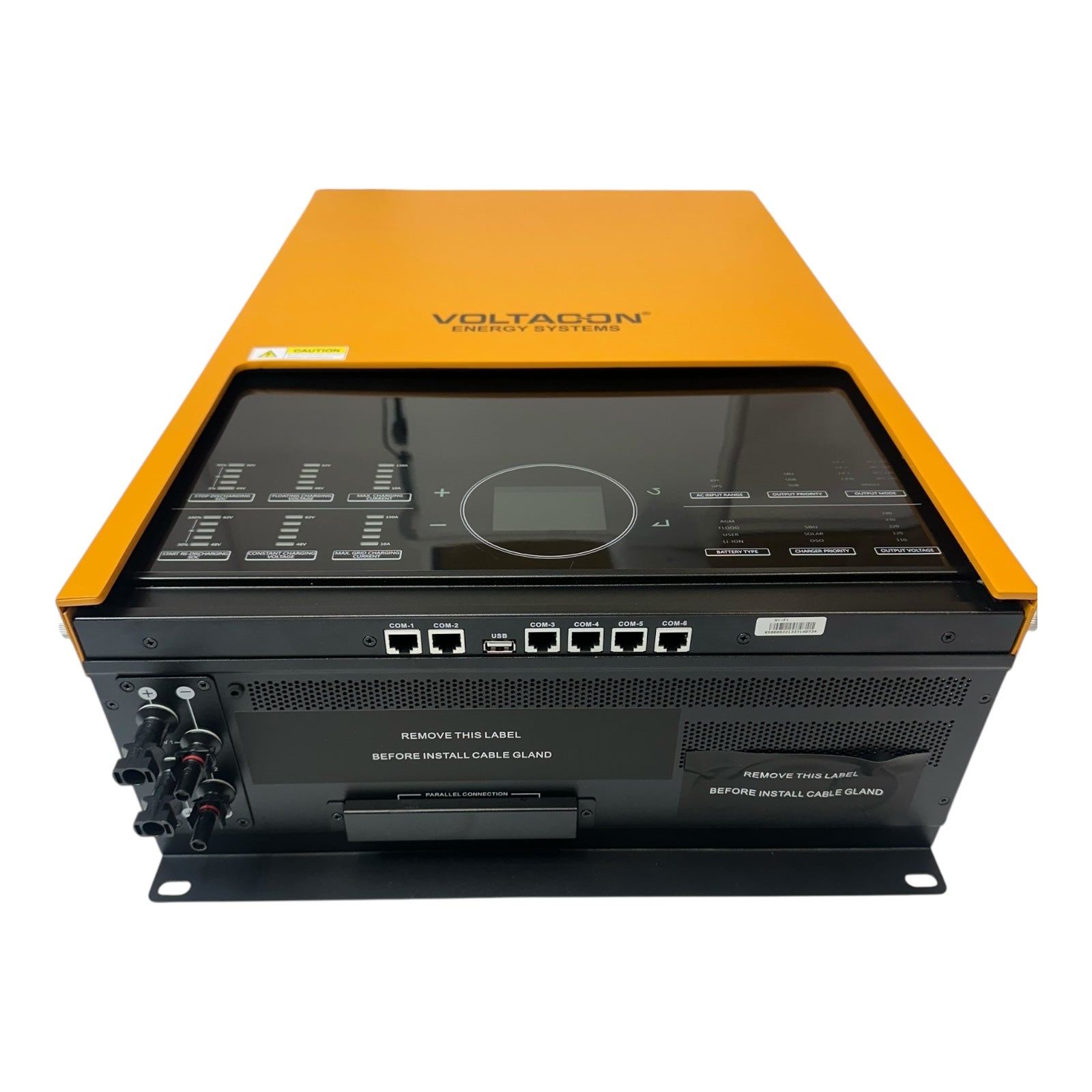

xAxpert MAX III 12KW Hybrid & Off-Grid Solar Inverter
The Conversol MAX-III 12kW is a third-gen 48V single-phase hybrid inverter made for real-world off-grid or grid-support systems. It delivers 230V pure sine wave output and supports up to 18kW of solar input. You can connect solar and grid sources, with the inverter managing energy use intelligently based on system conditions.
Speed Meets Simplicity
You won't find any deep menu trees or cryptic codes on this hybrid inverter. Instead, operate it with 12 powerful settings displayed across one screen. LED indicators give you a status check at a glance, before you even touch a button.
Wiring is faster, too, thanks to the sliding front cover. Simply lift it to access all the terminals. No tools required. The layout is clean and clearly labelled, which speeds up both installs and maintenance.
What's more, dual AC input and dual output ports give flexibility for backup loads or split circuits. Built-in CT sensor means the inverter can prioritise self-use before drawing or sending power to the grid. It also features a grid-support function, enabling high output without utility upgrades.
The Conversol MAX-III 12kW Hybrid Inverter comes with integrated AC and DC breakers, as well as a PV disconnect and robust wall bracket. The result is a cleaner install and fewer inspection issues.
Finally, you can parallel up to six units for more capacity in the future. A two-year warranty gives you peace of mind.
So, if you're after a dependable, installer-friendly hybrid inverter, this is it
Key Features
- 12KW / 12000W rated inverter power for hybrid and off-grid solar systems.
- 48V battery compatibility with 200A maximum charge current.
- Up to 18000W PV array power with max. 12000W per tracker.
- Wide MPPT range from 90VDC to 450VDC.
- Pure sine wave output for stable and reliable AC power.
- 24000VA surge power for starting demanding electrical loads.
- Dual inputs and dual outputs for flexible energy management.
- Built-in DC breaker, AC breaker and PV DC switch for safety and reliability.
- Grid support with built-in CT sensor for self-consumption applications.
- User-friendly LCD setting and LED indicators for easy system monitoring.
- Sliding control panel design for easier cable access during installation.
- Parallel operation up to 6 units for increased system power and capacity.
- USB, RS232, RS485, WiFi and dry-contact communication included.
Smart Hybrid & Off-Grid Operation
The Axpert MAX III can be selected for hybrid or off-grid operation, giving installers and users more flexibility depending on the application. The dual input and dual output design allows energy to be managed more effectively, helping to reduce power interruption and arrange output power as required.
Designed for Easier Installation
The inverter includes a sliding control panel, making cable access easier during installation. It also features a wall mount bracket design to simplify the mounting process. Built-in protection devices, including DC breaker, AC breaker and PV DC switch, help improve safety and reduce the need for additional external components.
Specifications
xAxpert MAX III 12KW Hybrid & Off-Grid Inverter Specifications
| Specification | Axpert MAX III 12KW |
|---|---|
| Rated Inverter Power | 12000VA / 12000W |
| Parallel Capability | Yes, up to 6 units |
| Input | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC for personal computers 90-280 VAC for home appliances |
| Frequency Range | 50Hz / 60Hz, auto sensing |
| Output | |
| AC Voltage Regulation, Battery Mode | 230VAC ± 5% |
| Surge Power | 24000VA |
| Efficiency, Peak | 93% |
| Transfer Time | 15ms for personal computers 20ms for home appliances |
| Waveform | Pure sine wave |
| No Load Power Consumption | <75W |
| DC Voltage | 12 VDC ± 5%, 100W |
| Battery | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger & AC Charger | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 18000W, max. 12000W per tracker |
| MPP Range at Operating Voltage | 90-450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 40A / 27A, max. 60A |
| Maximum Solar Charge Current | 200A |
| Maximum AC Charge Current | 200A |
| Maximum Charge Current | 200A |
| Physical | |
| Dimensions, D x W x H | 176.3 x 432.4 x 687mm |
| Net Weight | 28.5kg |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry-contact |
| Operating Environment | |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Standard | |
| Compliance Safety | IEC 62109, IEC 61683, EN/IEC 61000-6-2, 61000-6-4, 61000-3-11, 61000-3-12 |
