Description
xPre-made solar photovoltaic kit, ready to be installed, designed for lithium-ion batteries, fully expandable with solar panels, inverter, and Pylontech US5000. AC Charge timer included with the inverter. PV power 3400Watt included (scalable to 8000Watt)
We designed and packed an off-grid solution that will power domestic and commercial appliances with a total consumption of 8000 watts. The system is made to operate 24/7 (continuous operation) and can power most of the houses since the peak power of 2-4 bedroom properties is most likely well below 8kW.
The system is ready for expansion, up to 6 identical inverters can be paralleled in single-phase (240VAC) or three-phase (400VAC).
Our start-up package includes 2 lithium-ion batteries from Pylontech, with a total capacity of 9.6kWh and a depth of discharge of 95%. Additional batteries can be connected to the system to extend the autonomy of the household.
The solar panels will be mounted on a triangle structure with adjustable inclination. This is suitable for flat surface installations. If you have roof or other requirement please contact us to change the panel mounting kit at no extra cost.

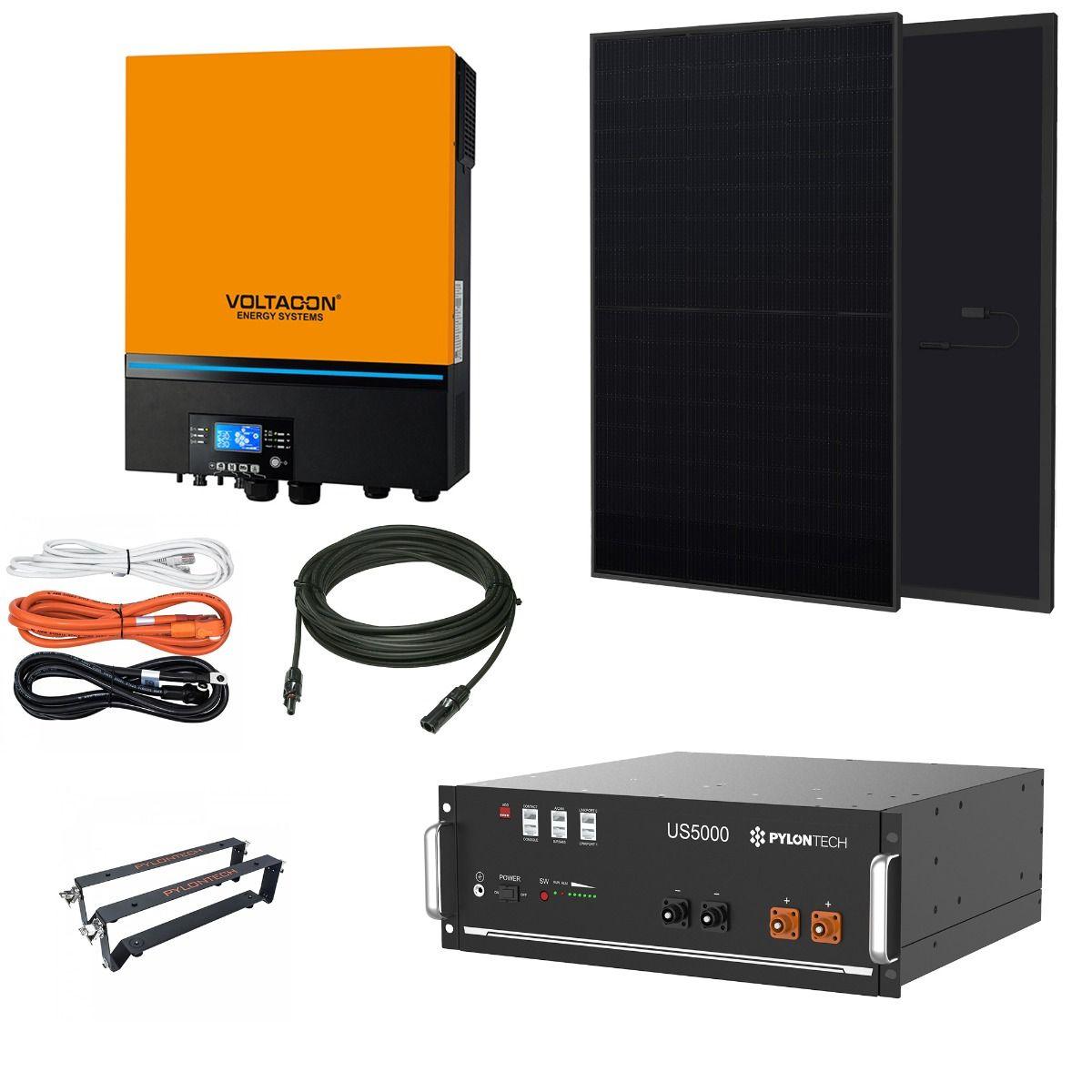

SOLAR KIT CONTENT - BILL OF MATERIAL
- 8kW Conversol MAX MPPT Charger and Inverter. Qty: 1
- US5000 Lithium battery 48V. Qty: 2
- Monocrystalline solar panels 425W. Qty: 8
- Mounting brackets for batteries. Qty:2
- Battery Disconnector 200A. Qty: 1
- Battery fuses. Qty:2
- 25 meter 6mm black
- 25 meter 6mm red
- Pair of MC4 connectors Qty:1
- In line fuses 20A. Qty:2
- Solar panel DC Isolator 32A. Qty:1
- BMS Communication cable. Qty:1
- Solar- Assistant Kit. Qty: 1
- 2 meters of battery power cables. Qty: 1
WHAT IS A SOLAR ASSISTANT KIT
This is a modern, easy to understanding, software that monitors the performance and key parameters of your inverter and lithium-ion battery. The internal SD card stores data for nearly 10 years and there is no annual subscription to pay. We offer the hardware and software in the 8kW solar kit but there is no need for an extra payment.
