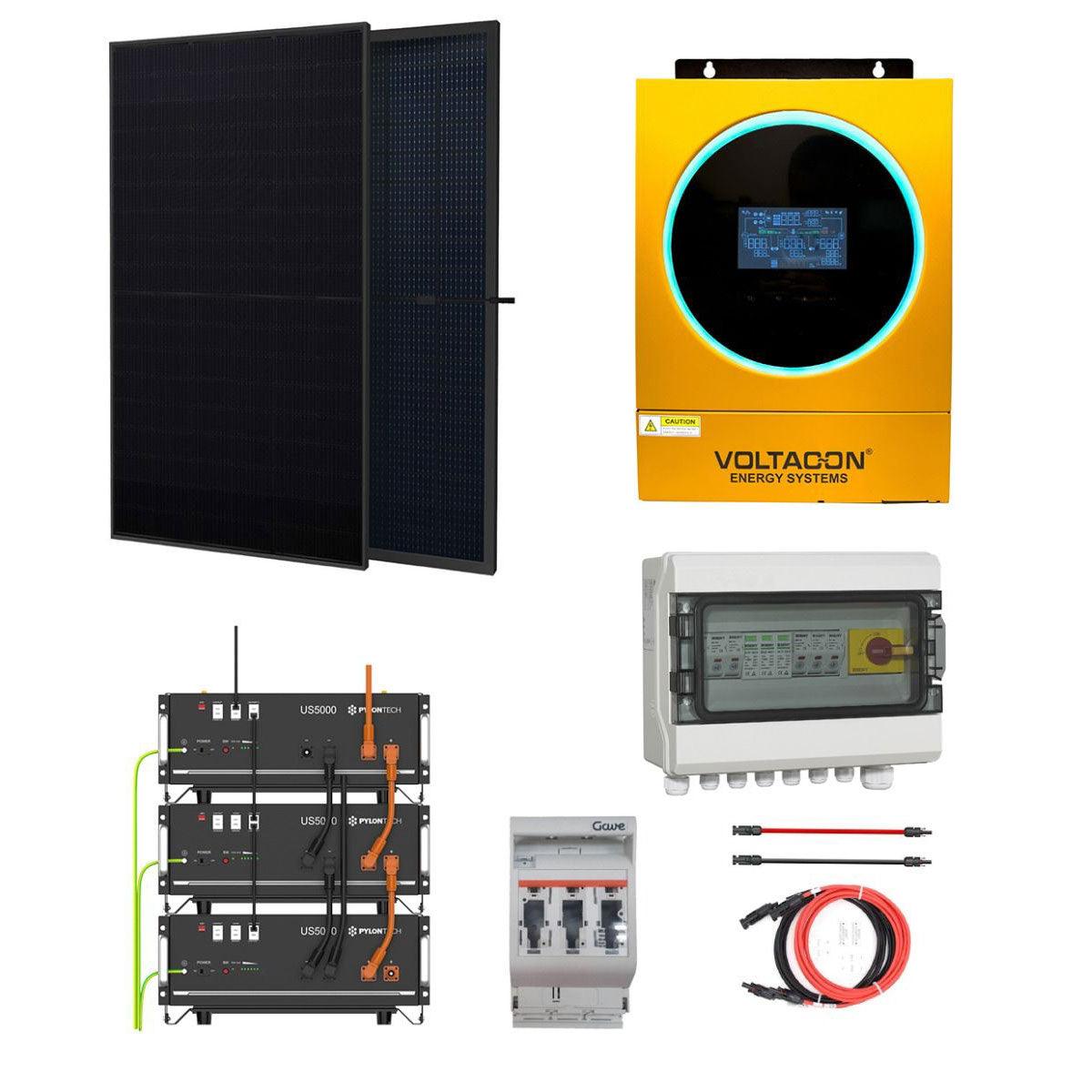

x5.6kW Off-Grid Solar Kit – 15kWh Pylontech US5000, 8x 425W Panels
This complete Voltacon off-grid solar kit is built around a Conversol MKS IV 5.6kW inverter-charger, three Pylontech US5000 lithium batteries providing 15kWh of usable storage, and eight 425W full black monocrystalline solar panels. The kit includes Solar Assistant monitoring, Victron Lynx distributor, full protection, cabling, and a motorised changeover switch for grid or generator backup. Designed and assembled by Voltacon in the UK, supplied palletised with a wiring diagram and UK technical support.
Key Features
- Conversol MKS IV 5.6kW single-MPPT inverter-charger, 48V
- 3x Pylontech US5000 48V 5.12kWh lithium batteries, 15kWh total
- 8x 425W full black half cut monocrystalline solar panels (3,400W total PV)
- Expandable: up to 6,000W PV input, additional batteries can be added
- 1x Solar Assistant monitoring kit (Orange Pi) with communication cables
- 1x Victron Lynx Distributor
- 1x Motorised changeover switch 63A for grid or generator backup
- 3x Pylontech US5000 wall mounting brackets
- 2x 100A Mersen fuse disconnectors
- Solar PV combiner box with DC isolator, 20A inline fuses and surge protection
- 25A AC isolator
- 25m red and 25m black 6mm solar cable
- Wiring diagram included
Product Overview
The MKS IV inverter charges the Pylontech battery bank directly from the solar panels via its single MPPT input. Additional panels can be added up to the 6kW PV input limit without changing the inverter. The three US5000 batteries communicate with the inverter via the BMS communication cable, enabling automatic charge and discharge management.
The motorised changeover switch allows the system to switch automatically between off-grid solar supply and a grid or generator source when battery charge falls below the configured threshold, providing continuity of supply without manual intervention.
The Victron Lynx Distributor handles DC bus distribution with integrated fusing, providing a clean and safe connection point for the battery cables and inverter DC inputs.
The mounting structure included is an adjustable triangle bracket for flat surface or ground installation. Contact us before ordering if a different mounting arrangement is required and we will accommodate it at no extra cost.
What Is Included
- 1x Conversol MKS IV 5.6kW inverter-charger
- 3x Pylontech US5000 48V 5.12kWh lithium batteries
- 3x Pylontech US5000 wall mounting brackets
- 8x 425W full black half cut monocrystalline solar panels with mounting structure
- 1x Solar Assistant monitoring kit (Orange Pi) with communication cables
- 1x Victron Lynx Distributor
- 1x Motorised changeover switch 63A
- 2x 100A Mersen fuse disconnectors
- 1x Solar PV combiner box with DC isolator, 20A fuses and surge protection
- 1x 25A AC isolator
- 25m red and 25m black 6mm solar cable
- Wiring diagram and installation instructions
Applications
- Domestic off-grid solar power systems
- Grid or generator backup installations for homes and small businesses
- Remote properties without a reliable grid connection
Installation and Safety Notes
This kit must be installed by a qualified electrician. Battery connections, DC fusing, AC output wiring, BMS communication, and earthing must comply with IET Wiring Regulations and the manufacturers' installation guidelines. Do not attempt DIY installation of inverter or battery systems.
